Basic Information
Material
Metal + ABS + PC
Installation
86-Box Installation
Relative Humidity
Max 90%

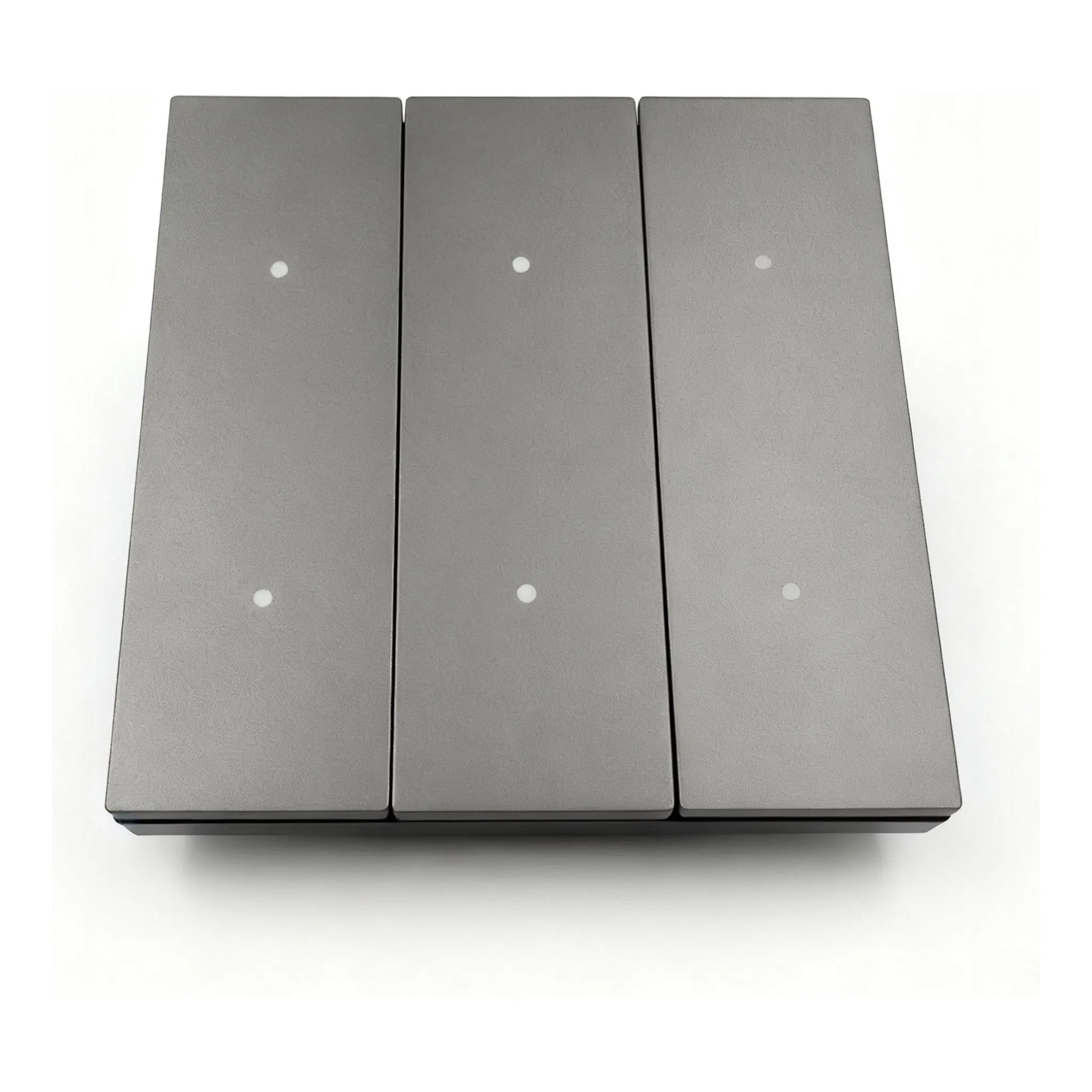

Product Overview
The control panel is mainly used in building control systems, installed together with other devices on the bus to form a system, and its functions are simple and intuitive to operate. Users can plan and systematically execute these functions according to their own needs.
The control panel can be used to control switches, dimming, blinds, etc. Each channel on the panel includes buttons and LED indicator lights. It is a standard 86 bottom box installation device with 1-4 or 1-8 button outputs. It connects to the EIB/KNX system via the EIB bus and uses ETS software for physical and group address allocation.
Key Functions
●
Versatile control for lighting switching, curtain operation, and projection screen lifting with long/short press support.
●
Advanced dimming capabilities including relative and absolute dimming output functions.
●
Integrated 8-bit scene control to call pre-set environment configurations effortlessly.
●
LED indicator functionality with multiple states: normally on, normally off, or flashing modes.
●
Intelligent backlight management with brightness wake-up and delayed extinguishing triggered by buttons or objects.
Technical Parameters
| Bus Voltage |
21-30 VDC, KNX bus power supply |
| Bus Current |
≤12mA |
| Bus Power |
<360mW |
| Dimensions (H x W x D) |
86 x 86 x 33 mm |
| Operation Temperature |
-5℃ to +45℃ |
| Auxiliary Voltage |
24VDC |
| Auxiliary Current |
≤27.5mA |

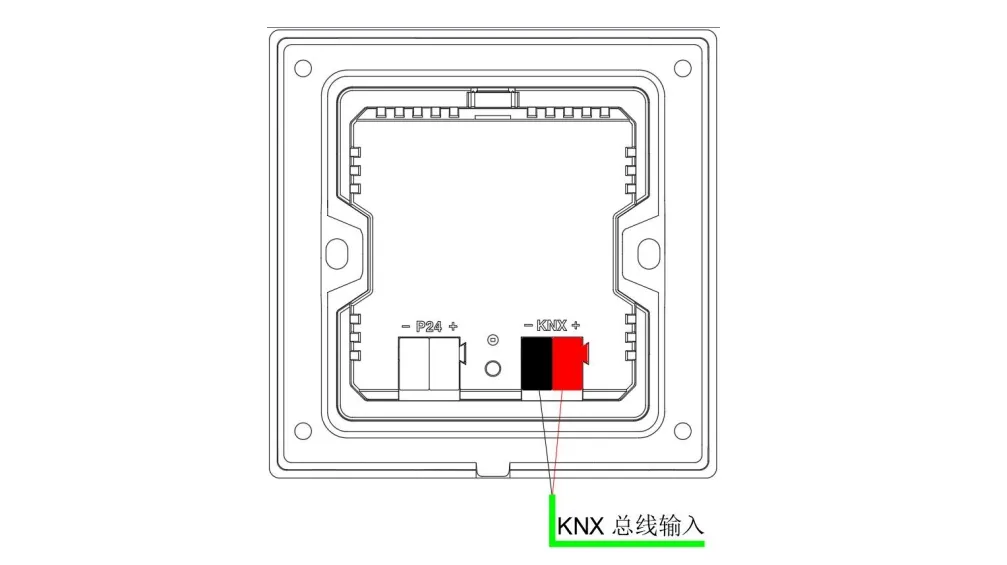

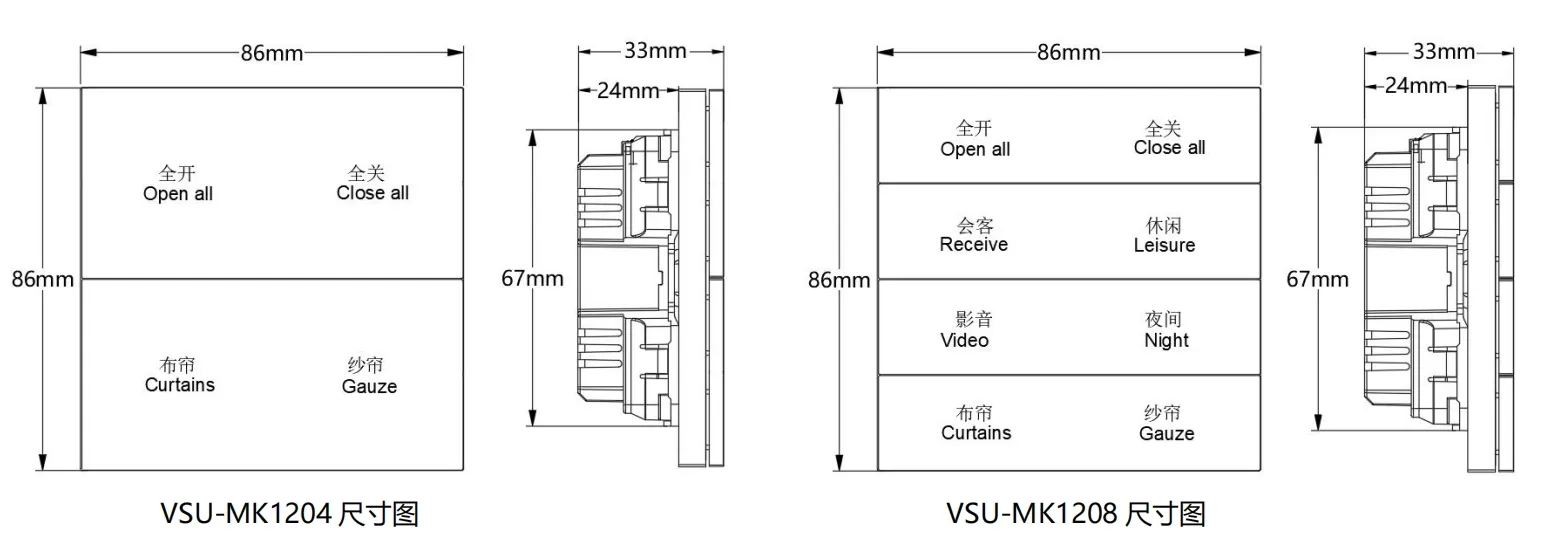

Dimensional & Wiring Diagrams

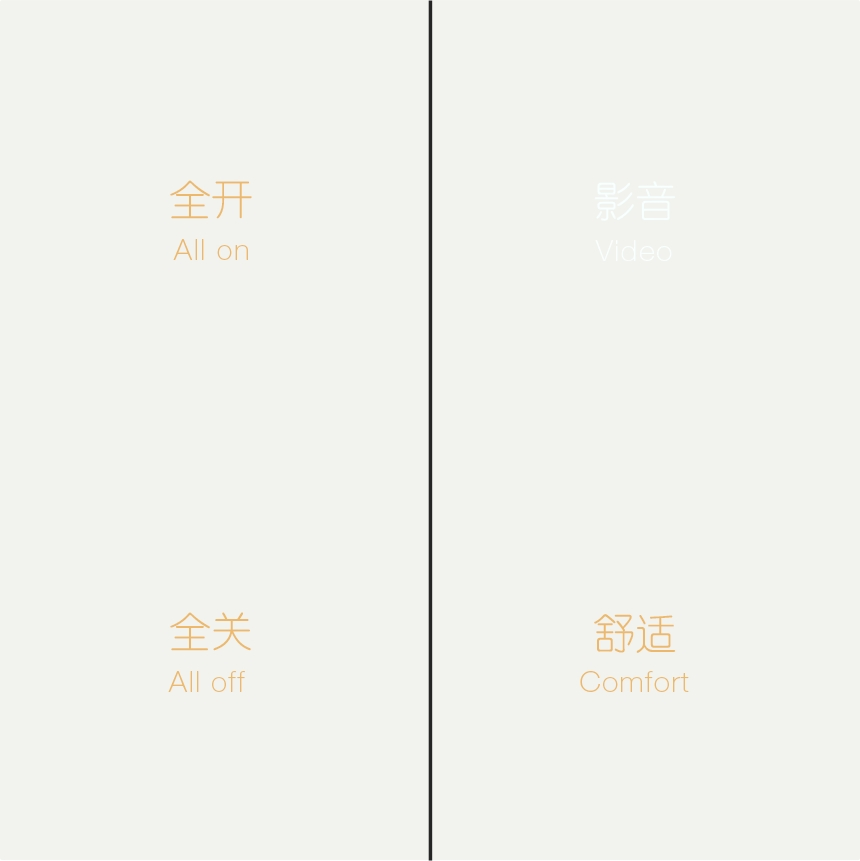

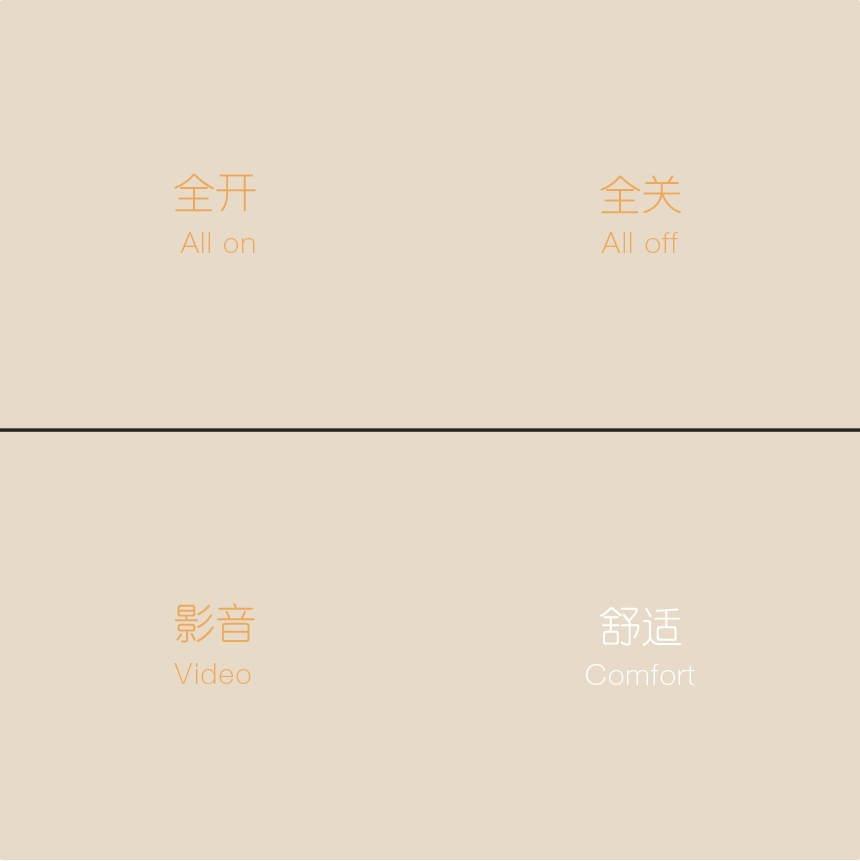

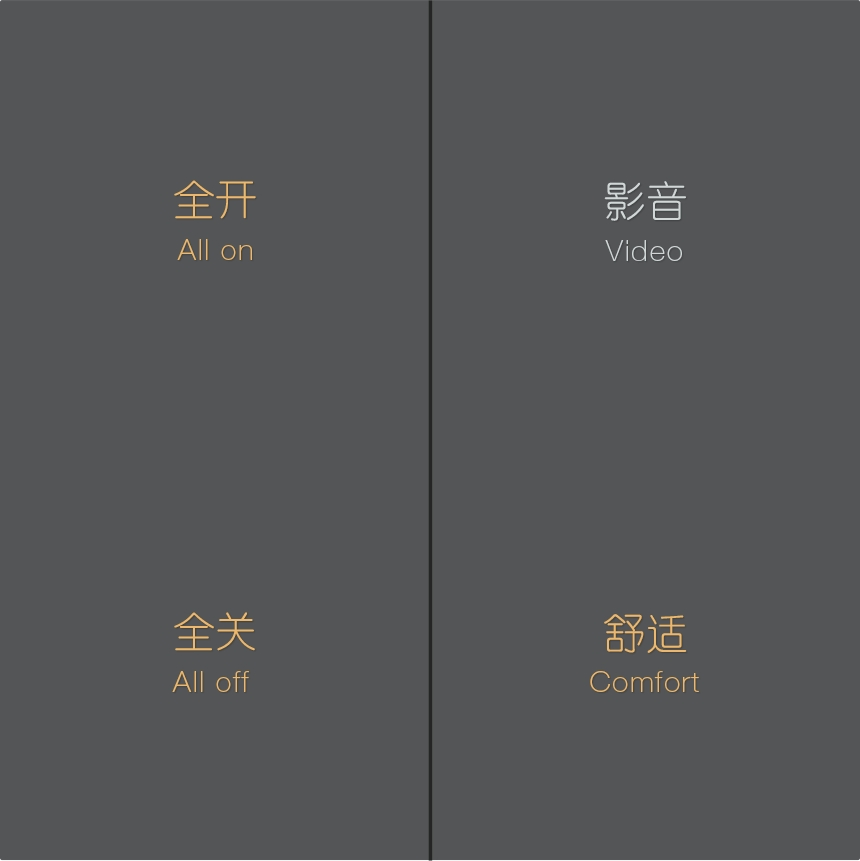

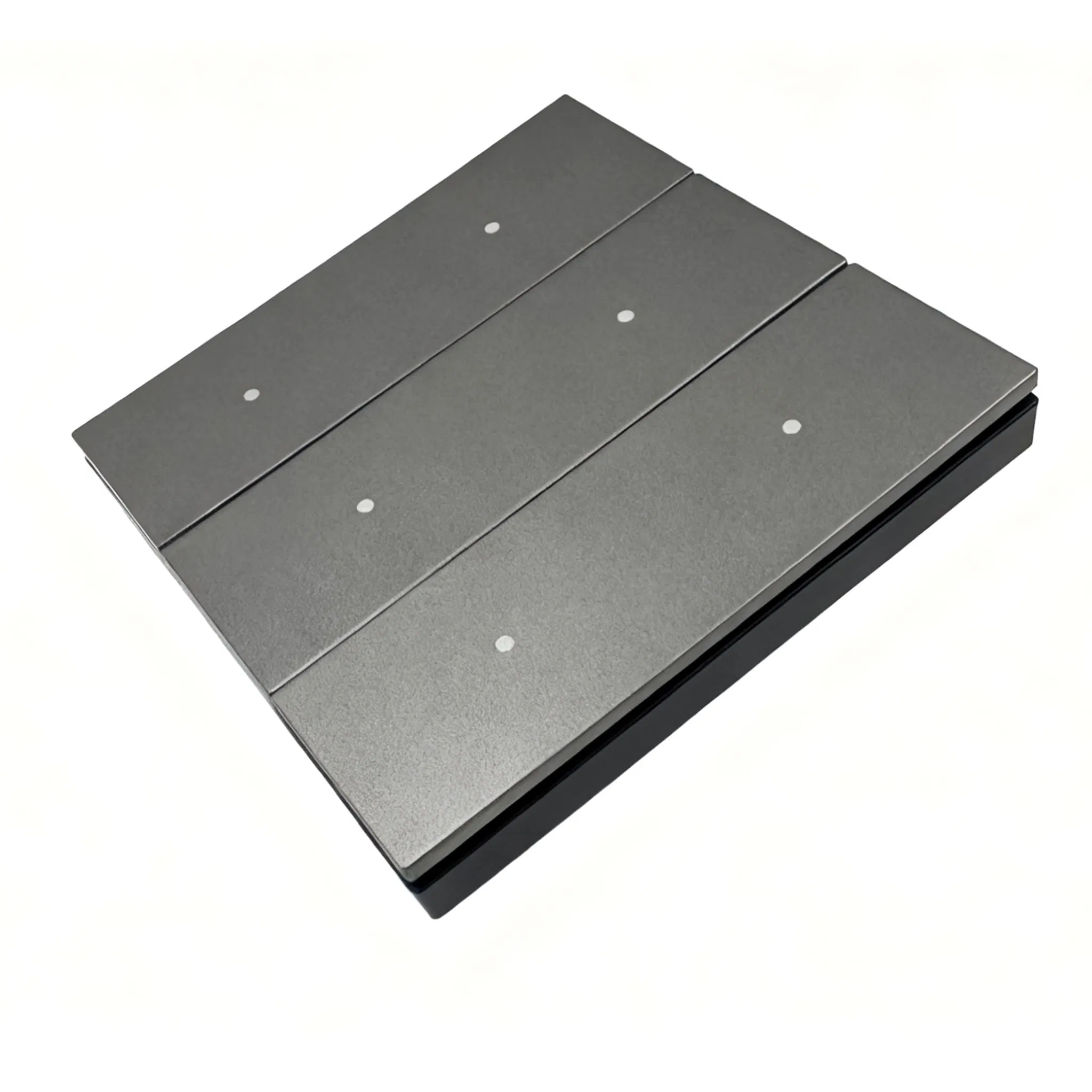

Product Showcase
Frequently Asked Questions
What types of systems is this control panel compatible with?
The control panel is specifically designed for EIB/KNX systems and connects directly via the EIB bus.
What can I control using this device?
It can be used to control lighting switches, dimming devices, blinds/curtains, and projection screens.
Does the panel support scene settings?
Yes, it supports 8-bit scene control and allows you to call pre-set scene functions easily.
What are the installation requirements?
It is designed for standard 86 bottom box installation and requires a 24VDC auxiliary power supply.
Is there any indicator for the status of the buttons?
Yes, each channel is equipped with LED indicator lights that support multiple states like flashing, normally on, or normally off.
What is the typical lead time for an order?
For quantities between 1-100 pieces, the lead time is approximately 3 days. Larger orders are subject to negotiation.
