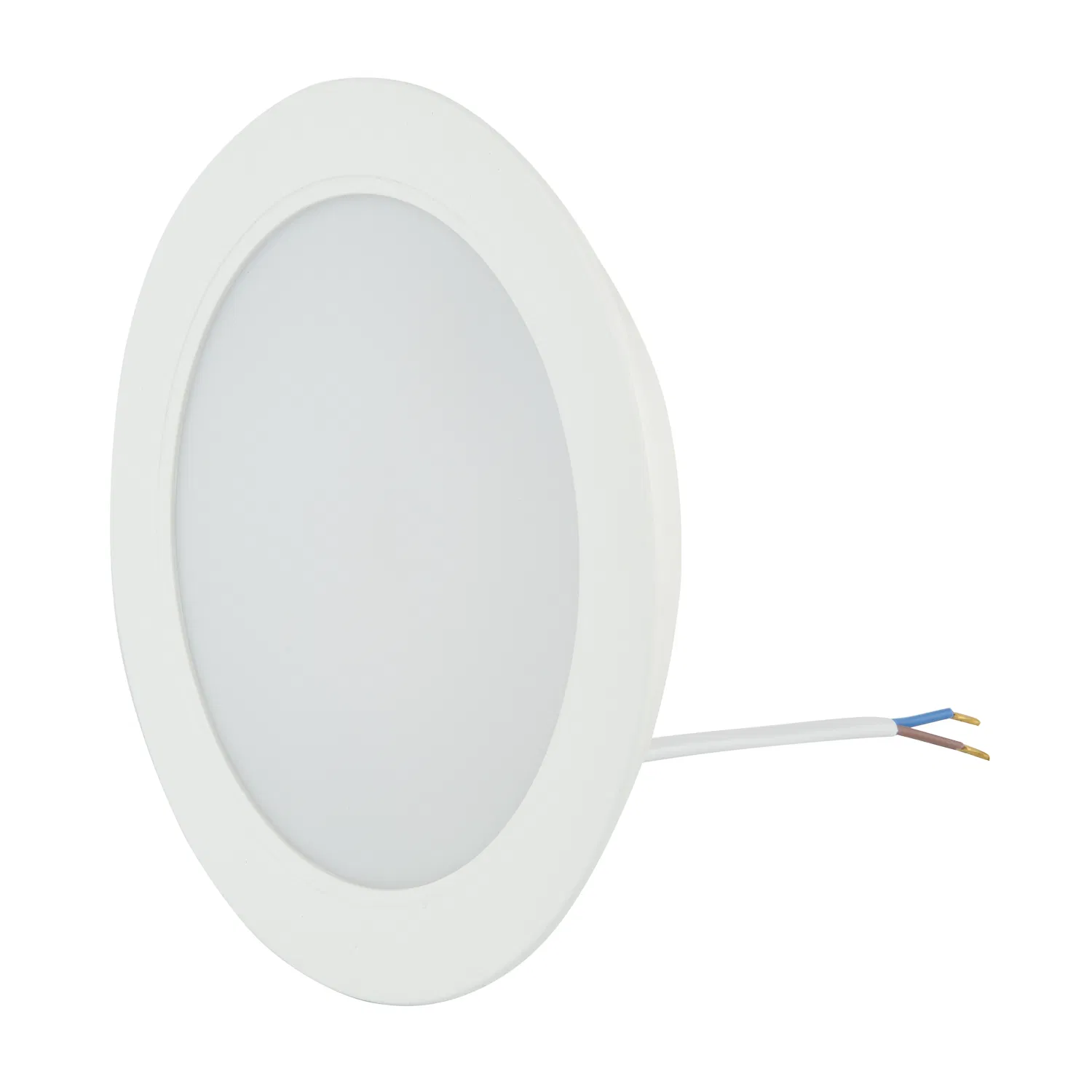

Recessed LED Slim Panel (Downlight) 3CCT by DIP 3000K/4000K/6500K IP20/IP54

1 / 5

Recessed LED Slim Panel (Downlight) 3CCT by DIP 3000K/4000K/6500K IP20/IP54

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Recessed LED Slim Panel(Downlight)

Power

6-30W

Color Temperature

3000K/4000K/6500K

Material

High-Quality PC

LED Source

SMD 2835

Installation

Recessed

Warranty

2 Years

IP Rating

IP20/IP54

Certification

CE, GOST, RoHS

HS Code

9405429000

Product Description

Versatile Design: Side light or Backlit options available.
CCT Adjustable: 3CCT by DIP switch (3000K/4000K/6500K) or Single CCT.

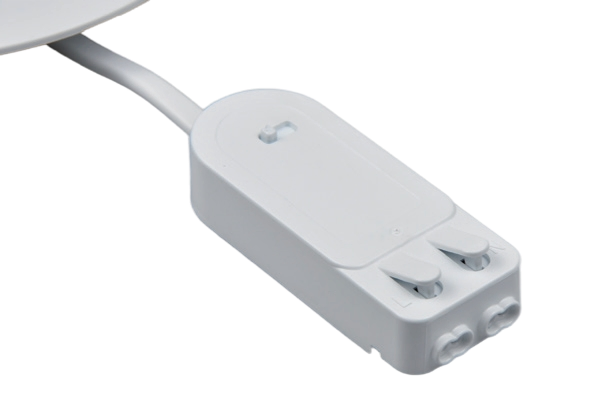

Flexible Connection: Available with or without Switch Box.
Technical Specs: AC 175-250V Voltage, Ra ≥80, 120° Beam angle.
Durability: 15,000 hours lifetime with -25°C~40°C operating temperature.
Compliance: Fully certified with CE/EMC/LVD/ERP2.0/CB.

Technical Specifications

Item No.	Watts	Lumen	IP Rate	Energy Class	CCT(K)	Material	Ra	Dimension (mm)

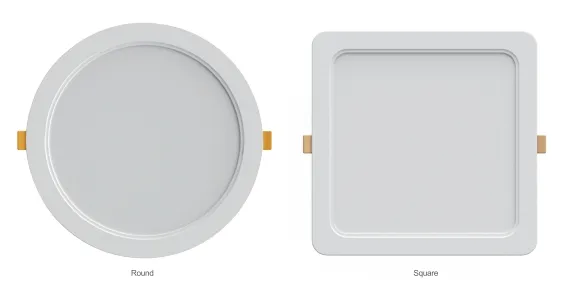

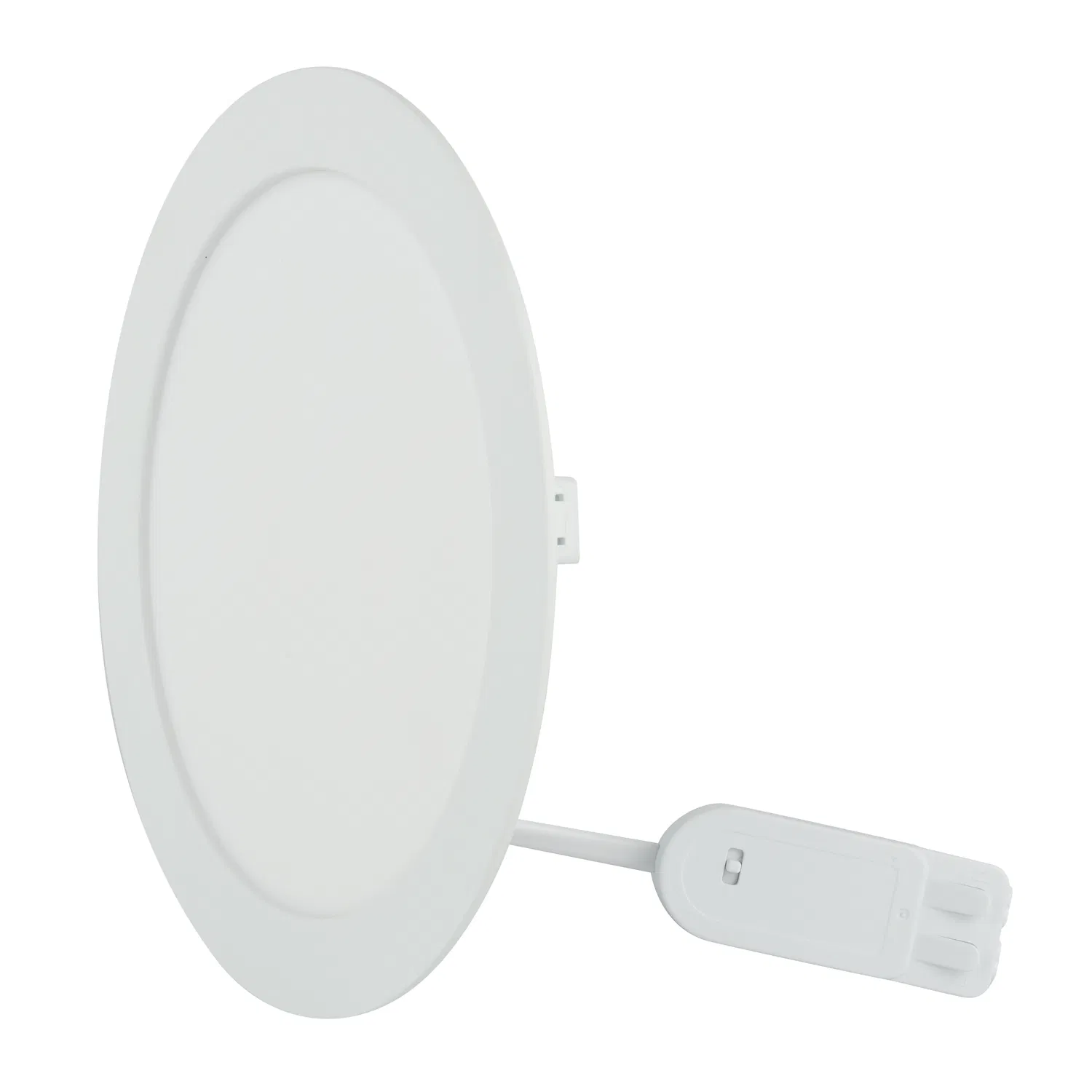

Recessed Round Series
SF-Slim Panel	6W	85-100lm/w	IP20/IP54	F	3CCT	PC	80	φ128×H14.8
SF-Slim Panel	9W	85-100lm/w	IP20/IP54	F	3CCT	PC	80	φ145×H15.8
SF-Slim Panel	12W	85-100lm/w	IP20/IP54	F	3CCT	PC	80	φ170×H15.8
SF-Slim Panel	18W	85-100lm/w	IP20/IP54	F	3CCT	PC	80	φ225×H16.1
SF-Slim Panel	24W	85-100lm/w	IP20/IP54	F	3CCT	PC	80	φ300×H16.3

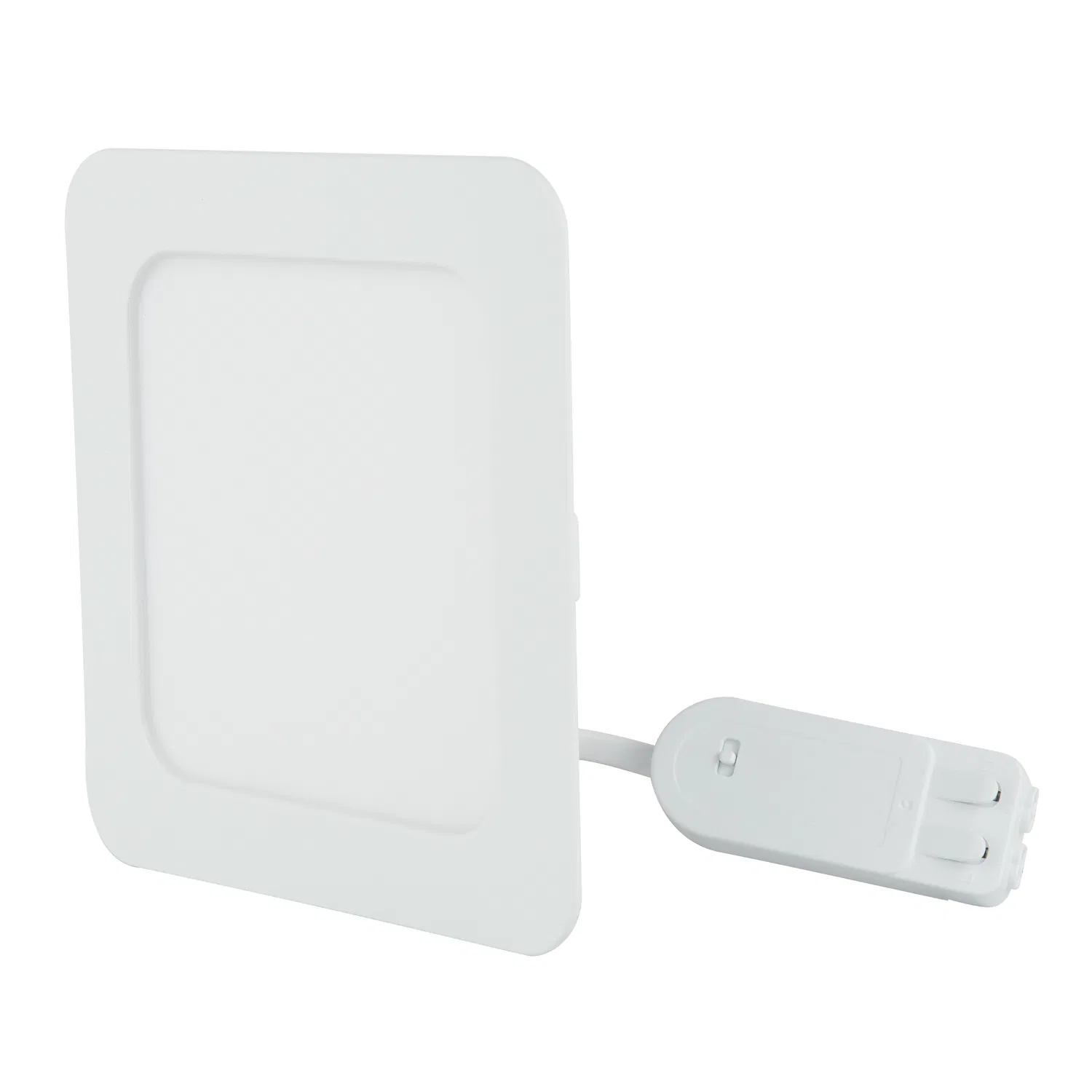

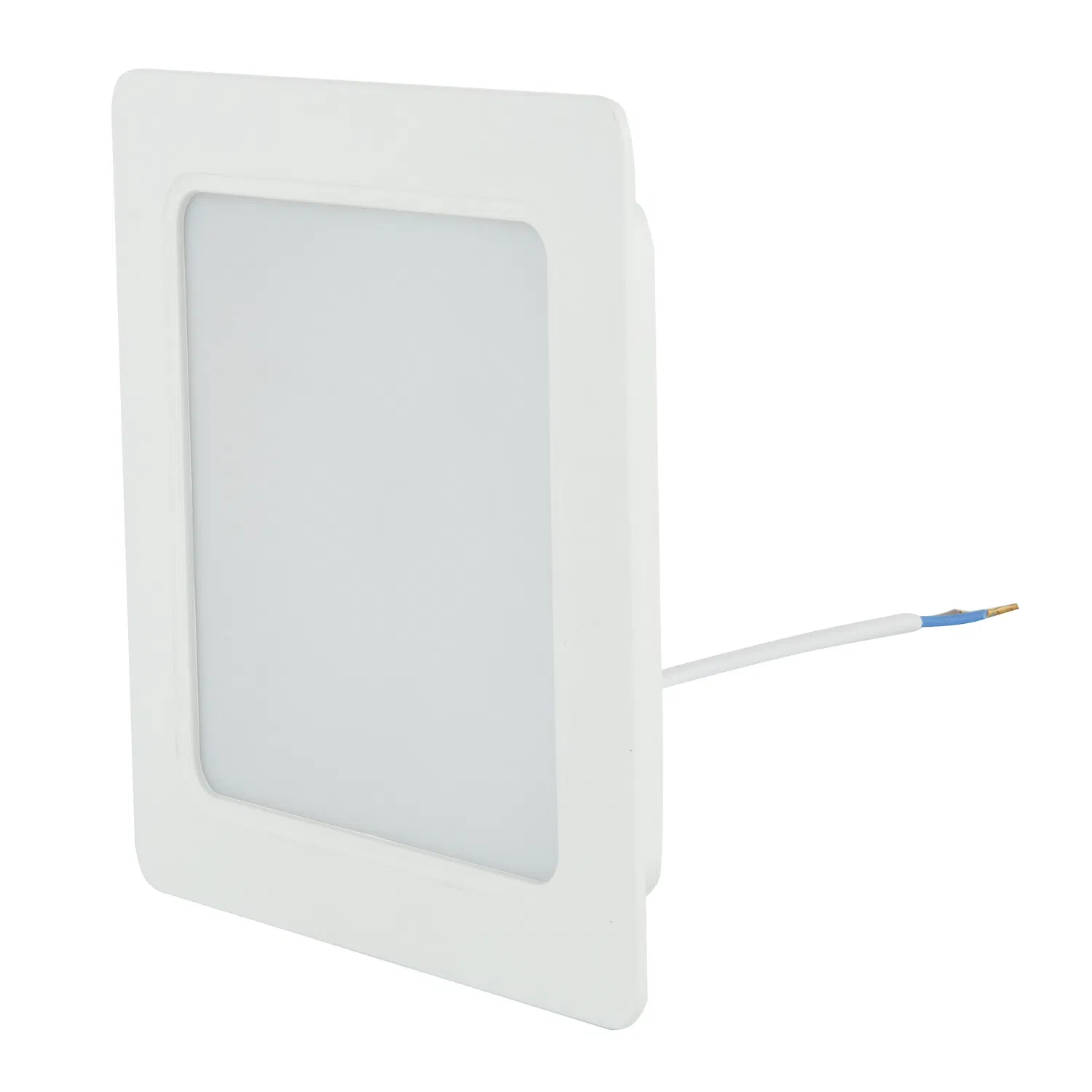

Recessed Square Series
SF-Slim Panel	6W	85-100lm/w	IP20/IP54	F	3CCT	PC	80	120x120x14.8
SF-Slim Panel	12W	85-100lm/w	IP20/IP54	F	3CCT	PC	80	170x170x15.8
SF-Slim Panel	18W	85-100lm/w	IP20/IP54	F	3CCT	PC	80	225x225x16.1
SF-Slim Panel	24W	85-100lm/w	IP20/IP54	F	3CCT	PC	80	300x300x16.3

Product Display

Frequently Asked Questions

What is the warranty for these LED Slim Panels?

We offer a 2-year warranty on all our recessed LED slim panels, ensuring reliable performance and peace of mind for your lighting projects.

Can I adjust the color temperature after installation?

The 3CCT models feature a DIP switch that allows you to select between 3000K (Warm White), 4000K (Neutral White), and 6500K (Cool White) before final installation.

Are these lights suitable for bathrooms?

Yes, we provide versions with an IP54 rating, which makes them suitable for humid environments like bathrooms or protected outdoor areas.

What materials are used in the lamp body?

The lamp body is constructed from high-quality PC (Polycarbonate) material, which is lightweight, durable, and provides excellent heat dissipation.

Do these panels come with a switch box?

We offer flexible configurations where the panels can be ordered either with or without a switch box, depending on your specific installation requirements.

What is the estimated lifespan of the LED chips?

Our panels use SMD 2835 LED chips with a rated lifetime of approximately 15,000 hours under standard operating conditions.
