The control panel is designed for building control systems, forming an integrated network with other bus devices for intuitive operation. It enables users to execute customized functions systematically based on specific building requirements.

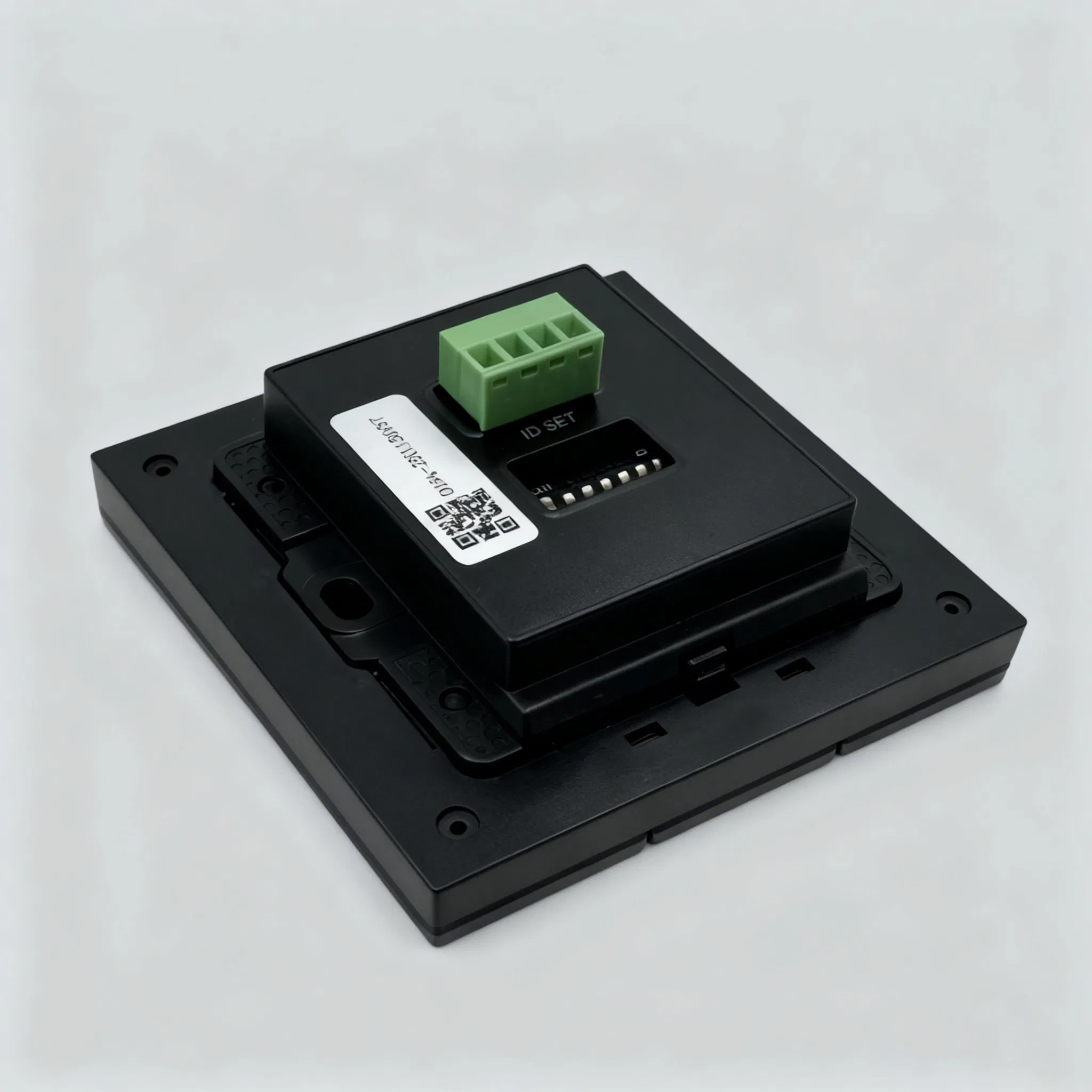

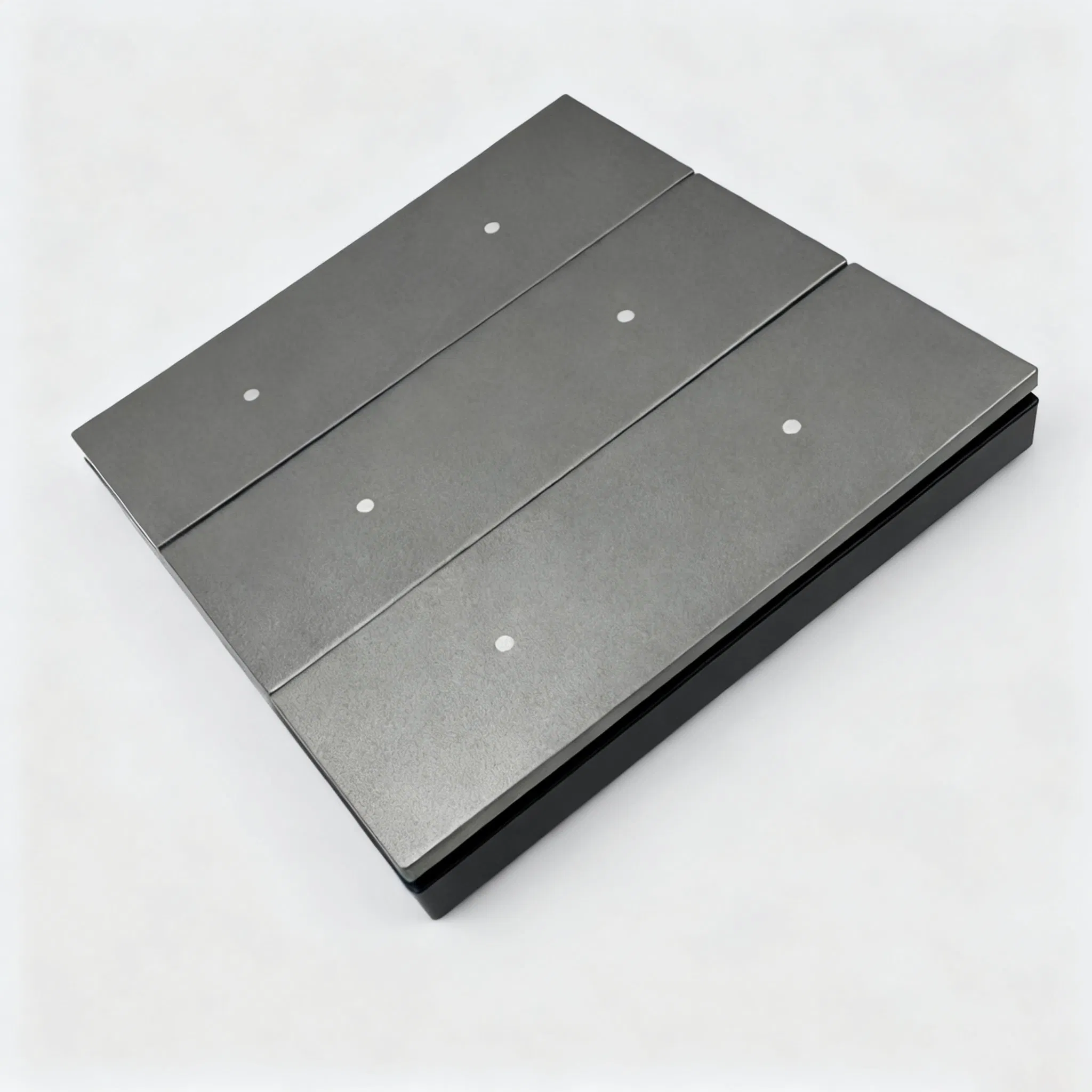

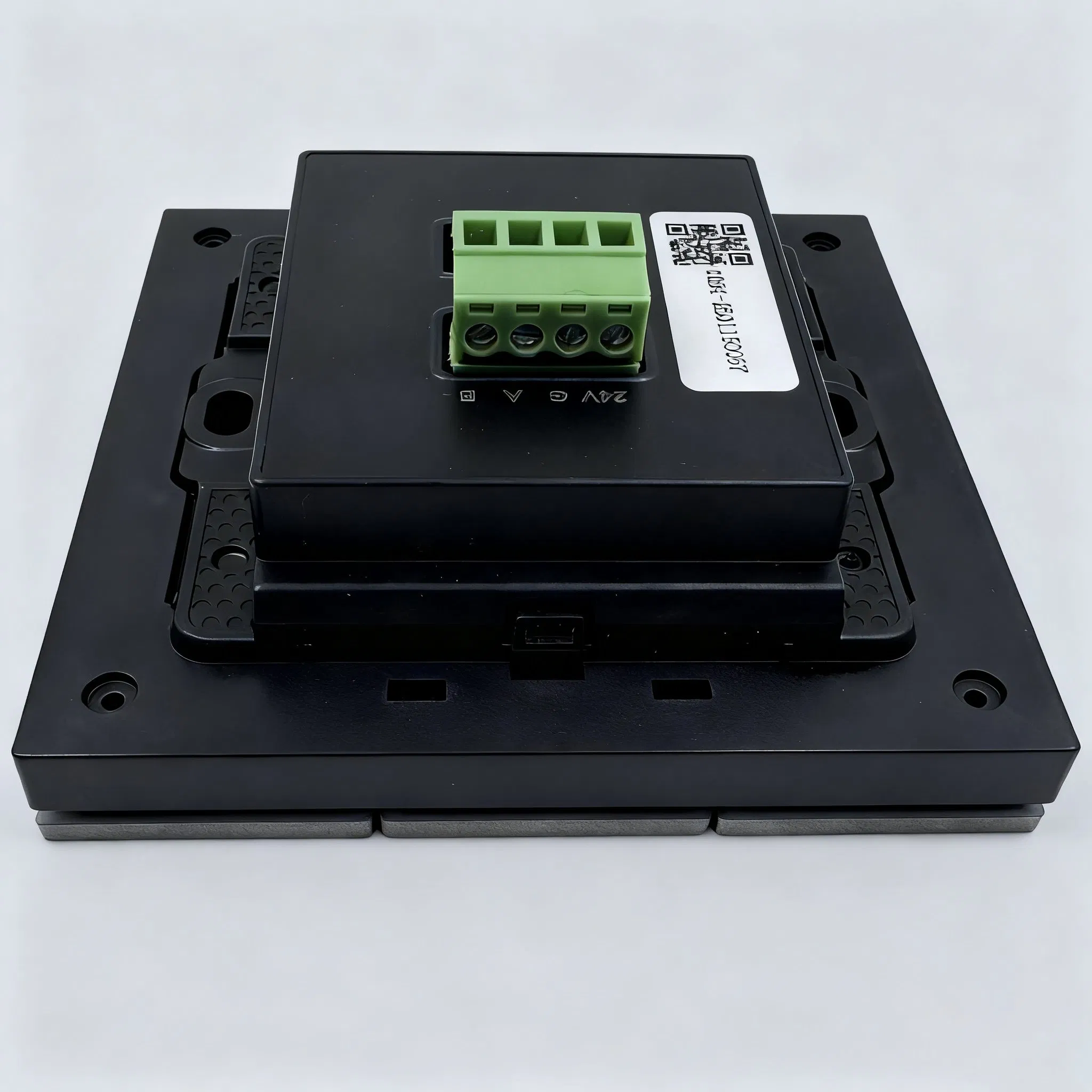

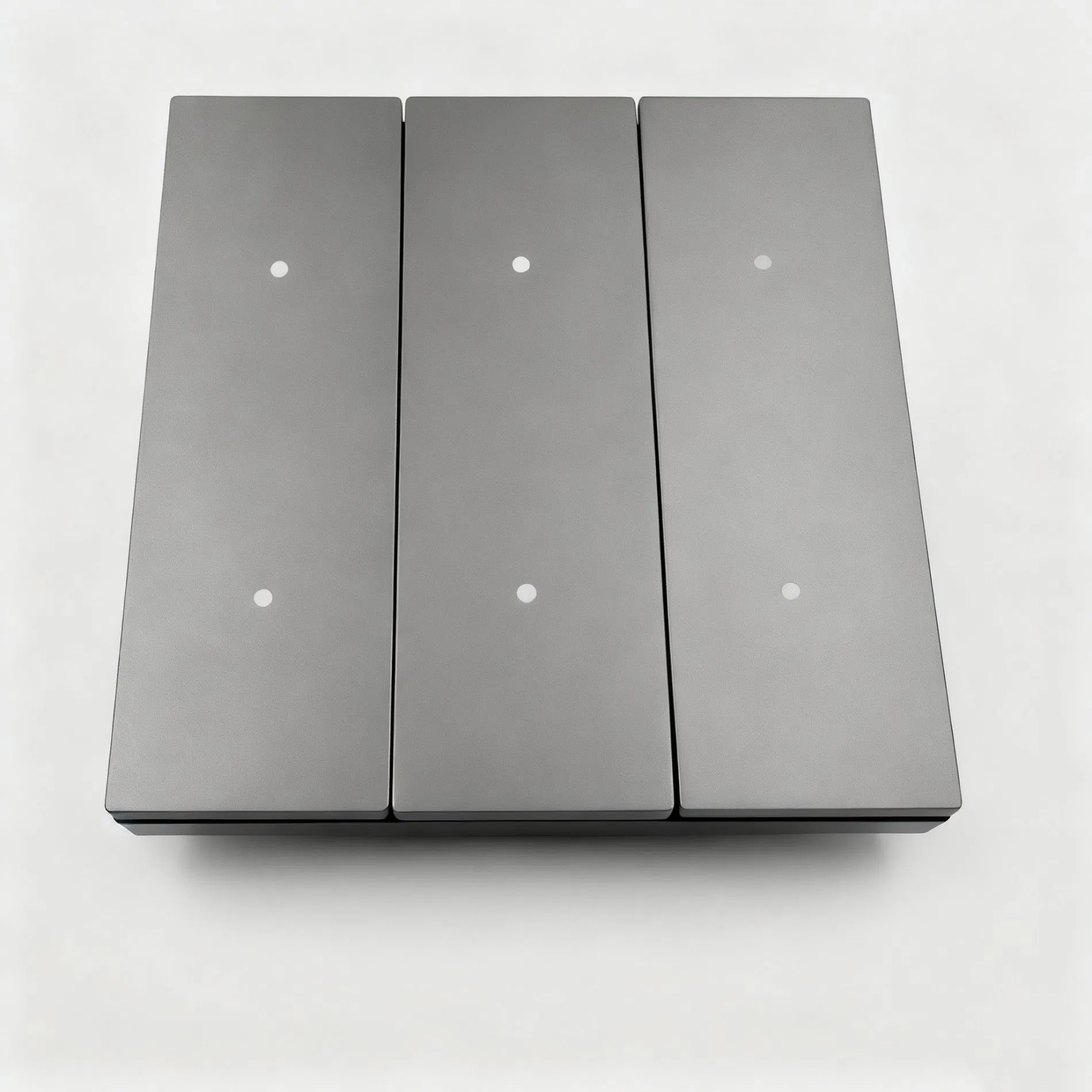

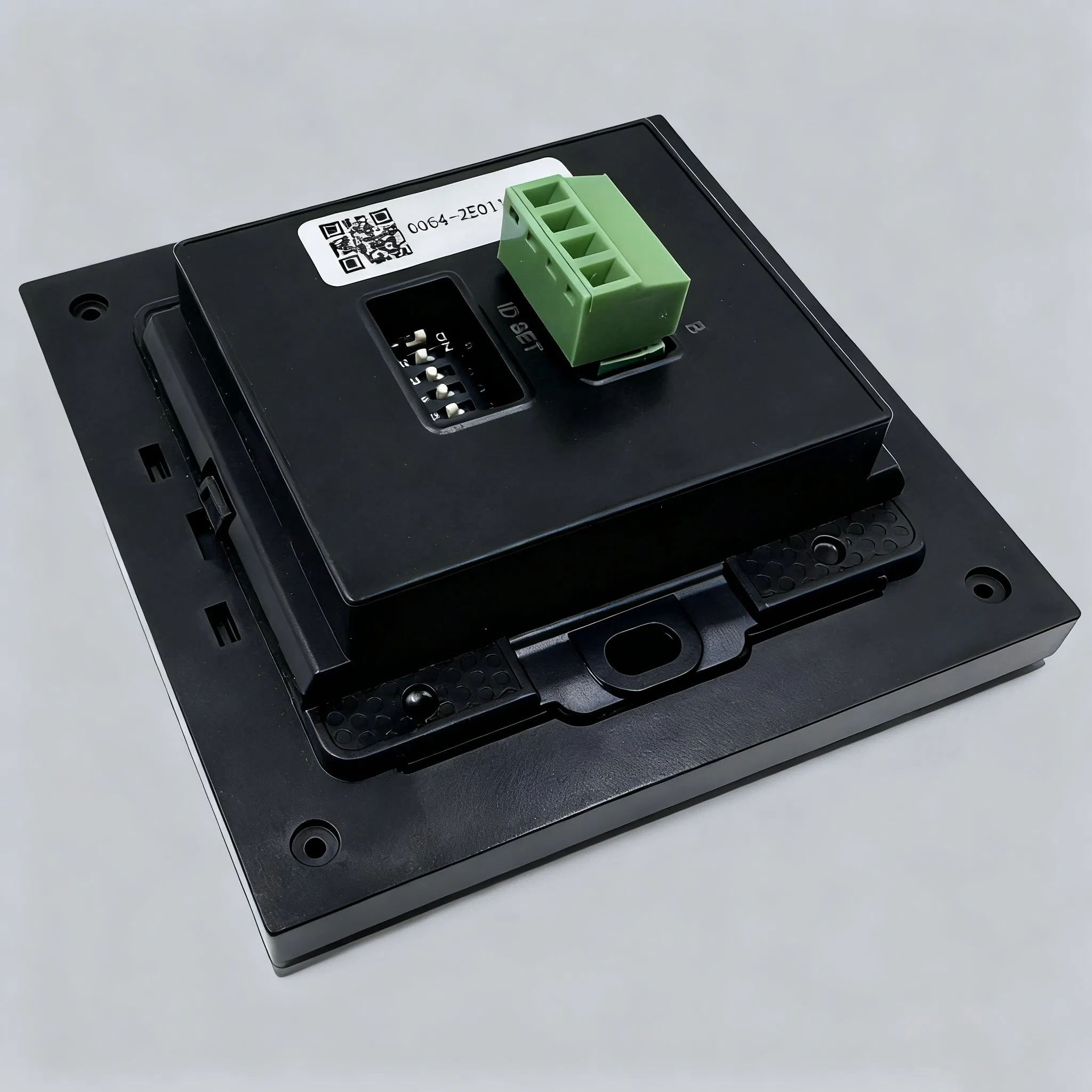

This panel controls switches, dimming, and blinds. Each channel features dedicated buttons and LED indicators. It is a standard 86-box device with 1-8 button outputs, connecting to EIB/KNX systems via the EIB bus, requiring 24VDC auxiliary power.
✓Multi-mode control for lighting, curtains, and projection screens (short/long press).
✓Supports relative and absolute dimming for precise lighting adjustment.
✓8-bit scene control to trigger pre-set environmental modes.
✓Customizable LED indicator states: normally on, off, or flashing.
✓Advanced LED brightness wake-up and delayed extinguishing functions.
Frequently Asked Questions
Q1: What are the main applications for this control panel?
A1: It is primarily used in KNX building control systems for switching lights, adjusting dimmers, controlling curtains/blinds, and triggering pre-set smart scenes.
Q2: How is the device powered?

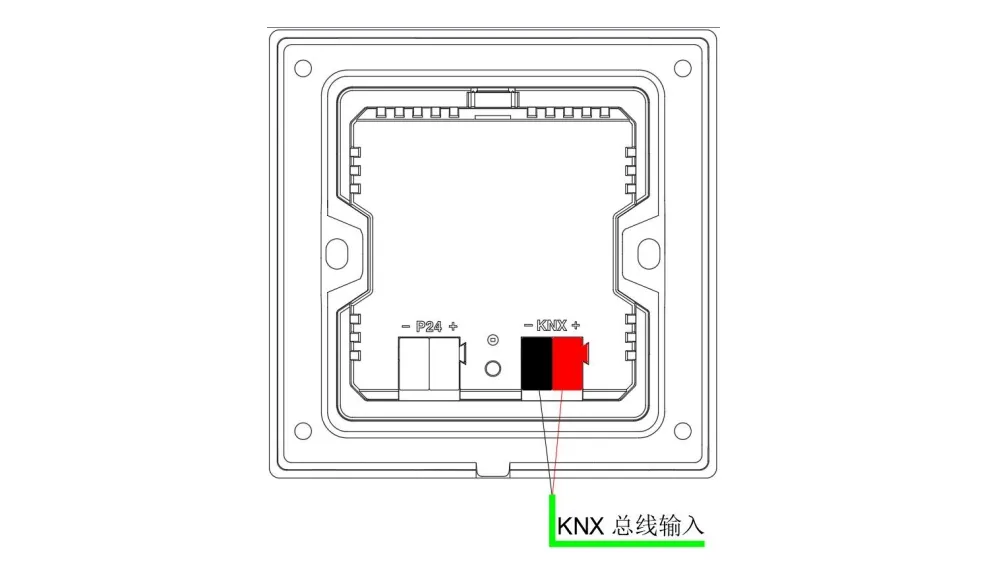

A2: The device is powered directly by the KNX bus (21-30 VDC) and requires an additional 24VDC auxiliary power supply for full functionality.
Q3: Is the control panel compatible with standard installation boxes?

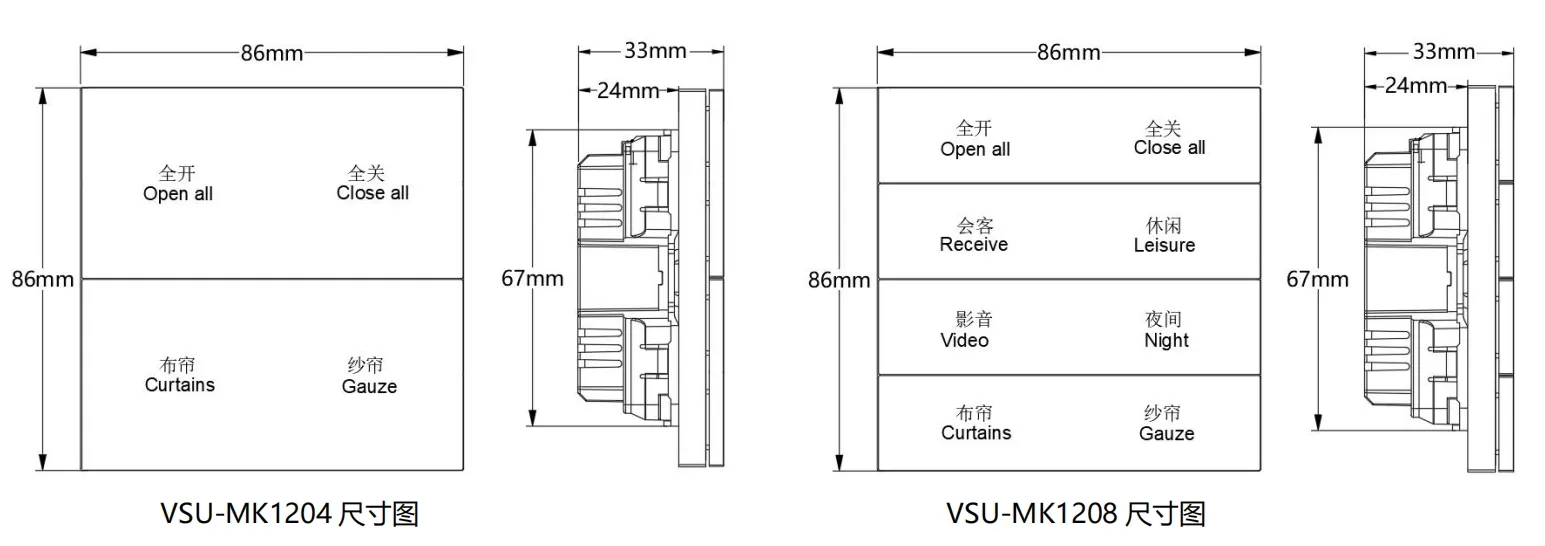

A3: Yes, it is designed for standard 86-type bottom box installation, making it compatible with most architectural electrical setups.
Q4: Can I customize the LED indicators?
A4: Absolutely. The LEDs support multiple display states including normally on, normally off, and flashing, along with brightness adjustment and delayed extinguishing.
Q5: What is the typical lead time for orders?
A5: For quantities between 1-100 pieces, the lead time is approximately 3 days. Larger orders require negotiation.
Q6: Are OEM or ODM services available?
A6: Yes, original designs and logos can be incorporated into the products based on customer requirements through our OEM/ODM services.
