Knx Smart Lighting System APP-Controlled Home Domotics Panel
Knx Smart Lighting System APP-Controlled Home Domotics Panel
Knx Smart Lighting System APP-Controlled Home Domotics Panel
Knx Smart Lighting System APP-Controlled Home Domotics Panel
Knx Smart Lighting System APP-Controlled Home Domotics Panel
1 / 5
Knx Smart Lighting System APP-Controlled Home Domotics Panel
Knx Smart Lighting System APP-Controlled Home Domotics Panel
Knx Smart Lighting System APP-Controlled Home Domotics Panel
Knx Smart Lighting System APP-Controlled Home Domotics Panel
Knx Smart Lighting System APP-Controlled Home Domotics Panel

Knx Smart Lighting System APP-Controlled Home Domotics Panel

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Product Information
Model NO.VSU-TC0504
FunctionAPP Control, Energy Monitoring, Remote Control, Scene Modes, Security, Smart Linkage, Timer
MaterialPlastic / Aluminum Alloy Frame
Bus Voltage21-30 VDC
Operating Temperature-5°C to +45°C
Storage Temperature-25°C to +55°C
CertificationCE, KNX, Product Safety Test Report

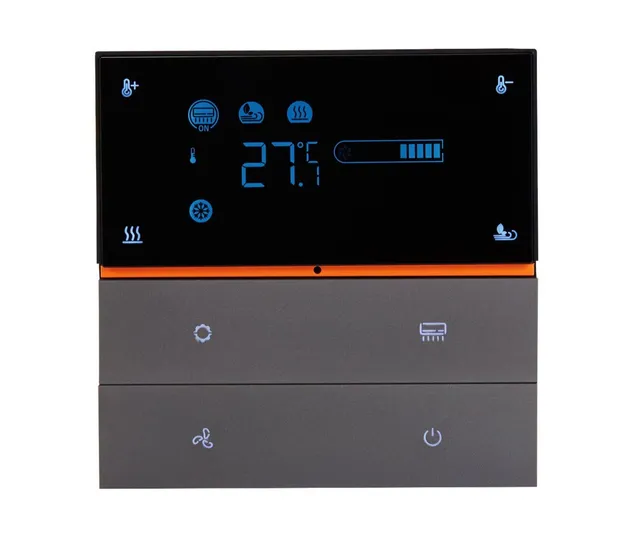

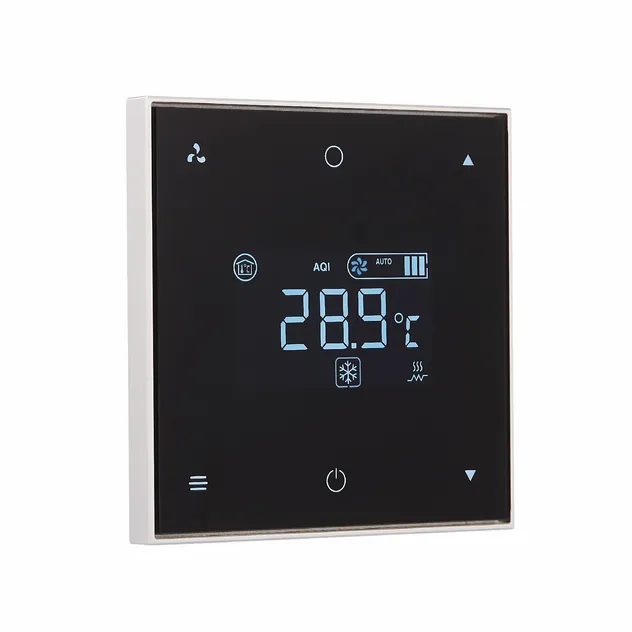

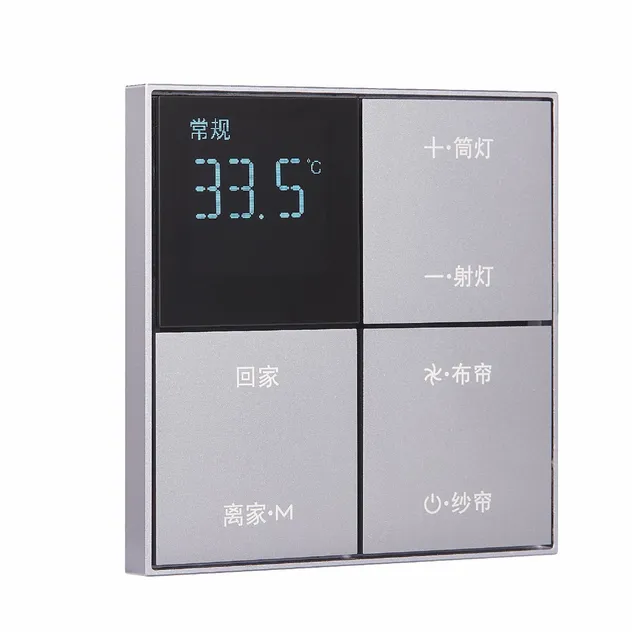

Knx Smart Lighting Panel View 1 Knx Smart Lighting Panel View 2 Knx Smart Lighting Panel View 3
Key Features & Customization

The KNX LCD touch panel offers an exquisite, high-end configuration that allows flexible customization of multiple interface functions, including:

  • ✓ Lighting & Dimming (RGB support)
  • ✓ Curtains and blinds control
  • ✓ Air conditioning & HVAC management
  • ✓ Floor heating and ventilation
  • ✓ Background music & Energy display
  • ✓ Timer management and scene control
Functional Highlights
  • ● Support for switching, dimming, and curtain lifting with long/short press functions.
  • ● Absolute and relative dimming output capabilities.
  • ● 8-bit scene control for calling pre-set automation sequences.
  • ● LED status indicators with adjustable brightness and flashing modes.
  • ● Built-in programming mode accessible via button operation for easy updates.
Detailed Specifications
Bus Voltage21-30 VDC, KNX bus power supply
Bus Current≤12mA
Bus Power<360mW
Shell MaterialMetal + PC
Dimensions (H x W x D)86 x 86 x 33 mm
InstallationStandard 86 bottom box
Relative HumidityMax 90%
WeightApprox. 0.2kg
Dimensional and Wiring Diagrams

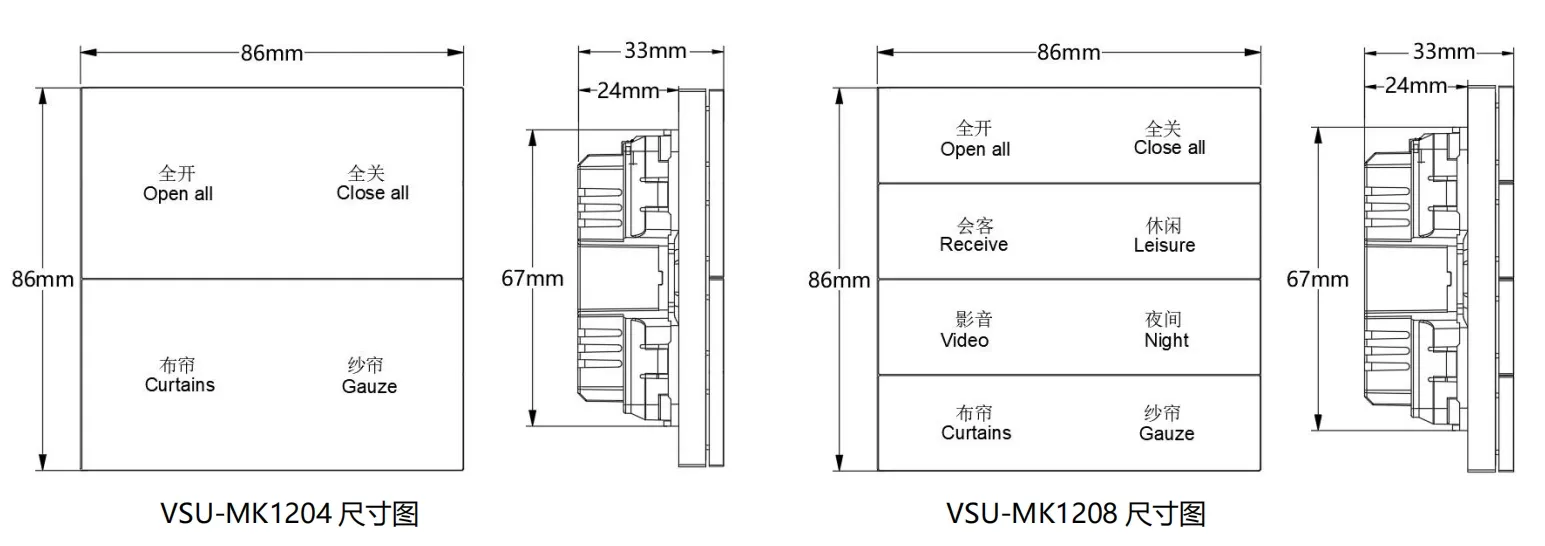

Product Dimensions Diagram

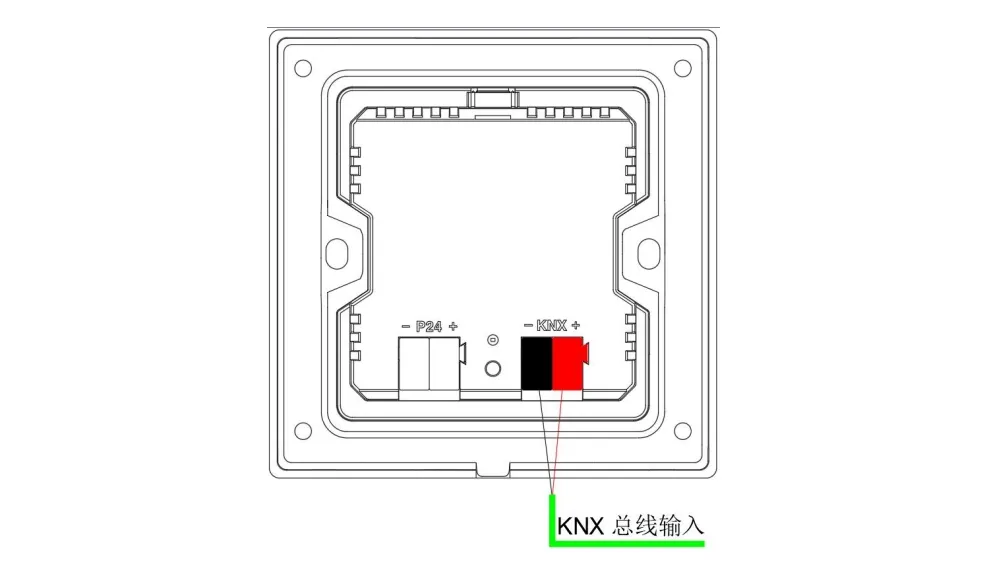

Wiring Schematic 1
Wiring Schematic 2
Smart Home Application 1 Smart Home Application 2
Technical Layout 1 Technical Layout 2 Technical Layout 3
Frequently Asked Questions
What types of systems can this panel control?
The panel is designed for comprehensive building control, including lighting switches, dimming, motorized blinds, HVAC, floor heating, and background music.
Does this product require an external power supply?
No, the control panel is directly connected to the KNX bus via wiring terminals and is powered by the bus (21-30 VDC).
Is the product original and certified?
Yes, all products are original. They have passed international CE certification, KNX certification, and relevant safety test reports.
What is the standard lead time for orders?
Products in stock have no lead time. For small orders (1-100 pieces), the typical lead time is approximately 5-7 days.
Can I customize the panel with my own logo?
Yes, OEM and ODM services are available, allowing for custom logos and designs to be applied to the merchandise.
What is the warranty period for these devices?
The standard warranty is valid for 90 days after the package has been received.
