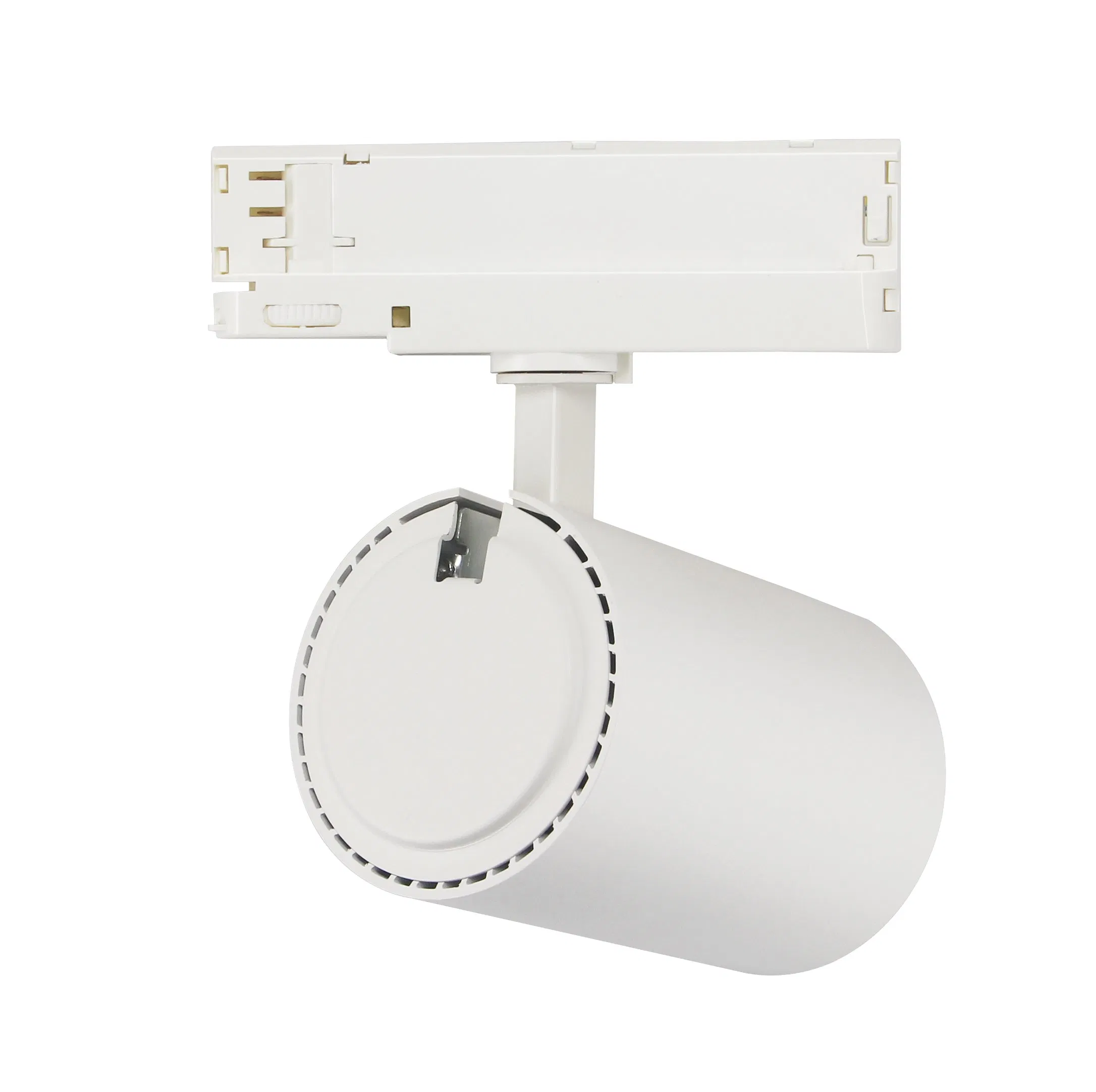

Aluminum Retail Track Lighting 10W 20W 30W 35W COB Tracklight LED Track Spot Light

1 / 5

Aluminum Retail Track Lighting 10W 20W 30W 35W COB Tracklight LED Track Spot Light

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

PL-TL-HP-35W

Power

35W

Emitting Color

White

Base Type

Adaptor

Wire

2wires, 3wires, 4wires

IP Rating

IP44

LED Chips Brand

CREE

Input Voltage

100-240V

Housing Color

White, Black, Grey

Spec

D95 H160mm

Product Overview

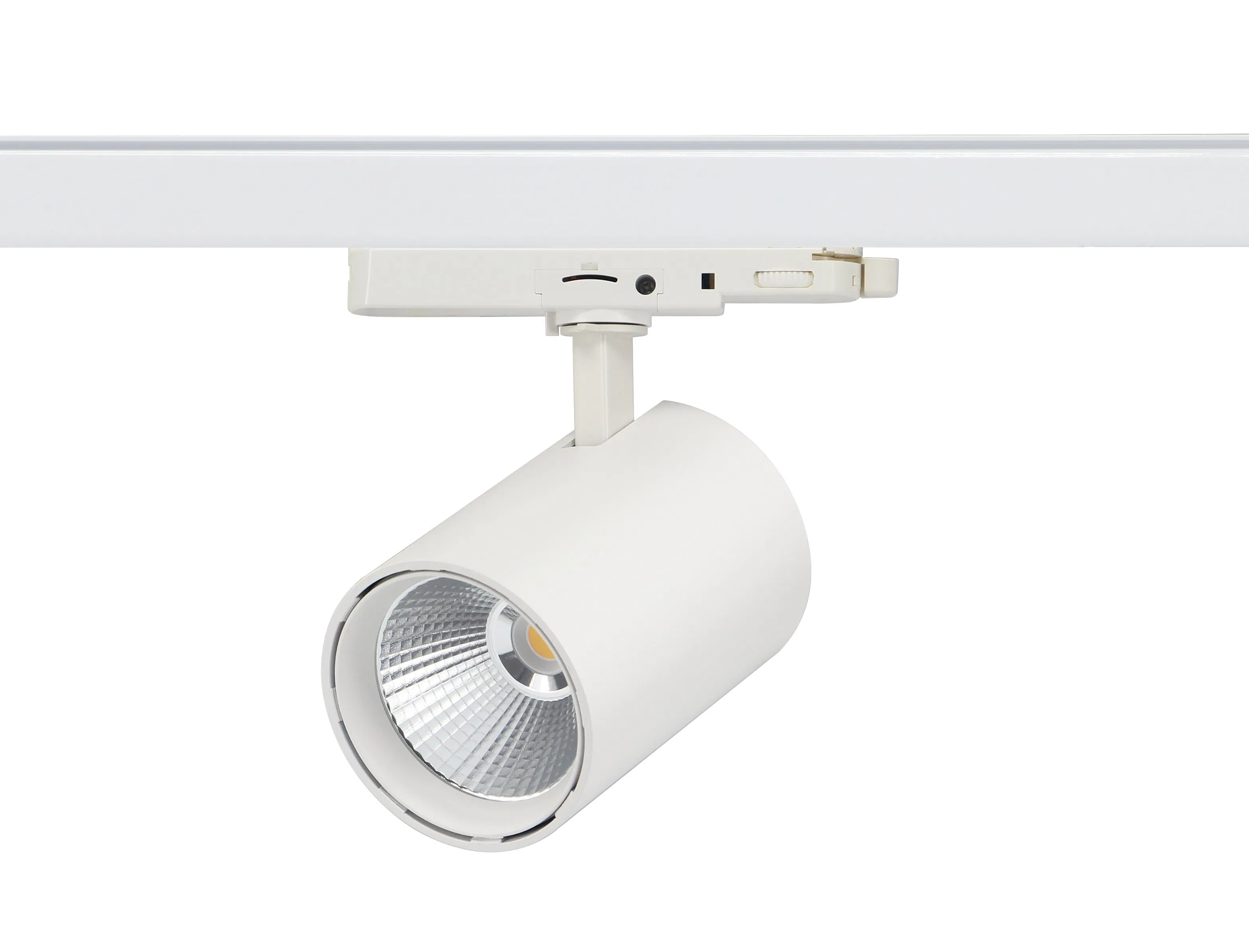

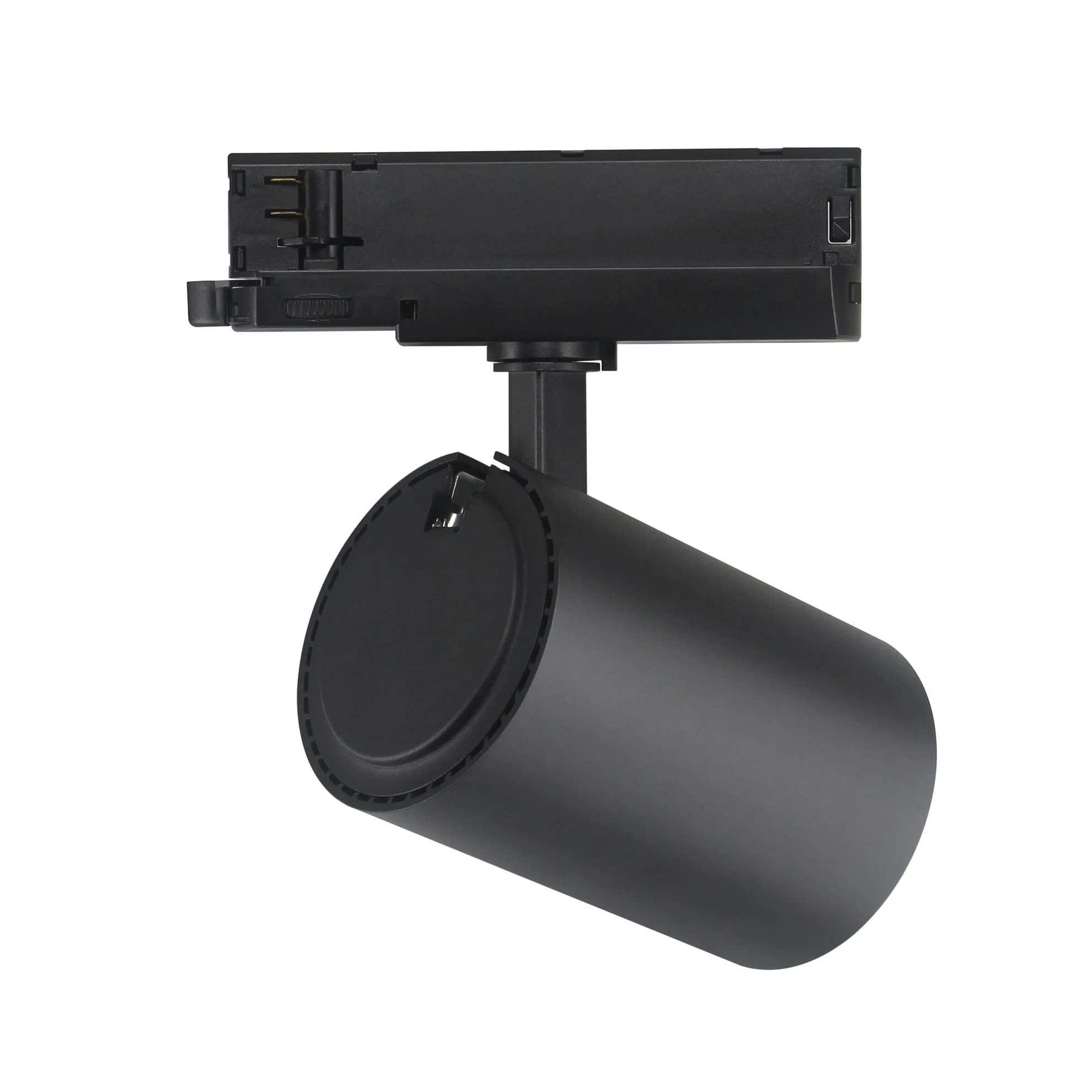

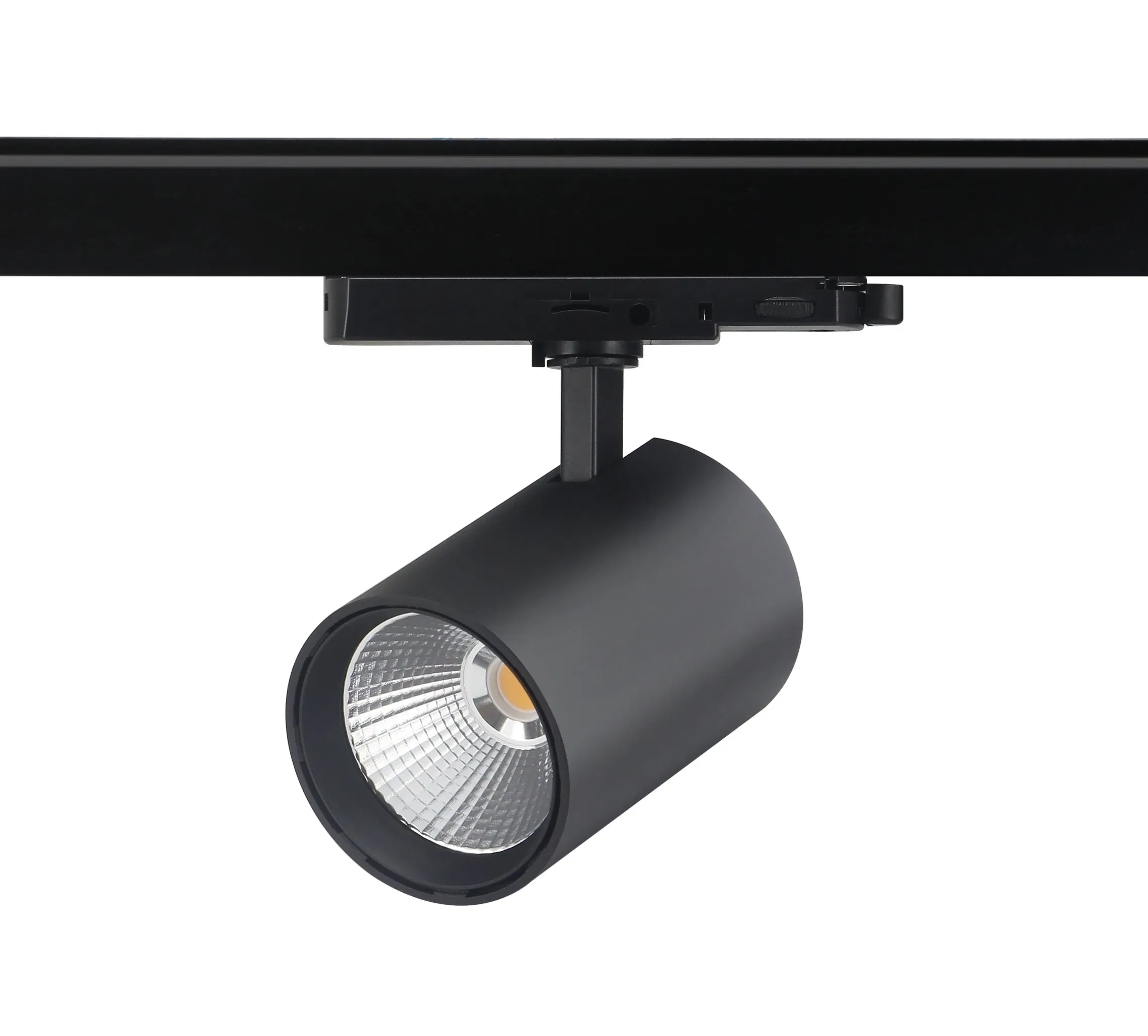

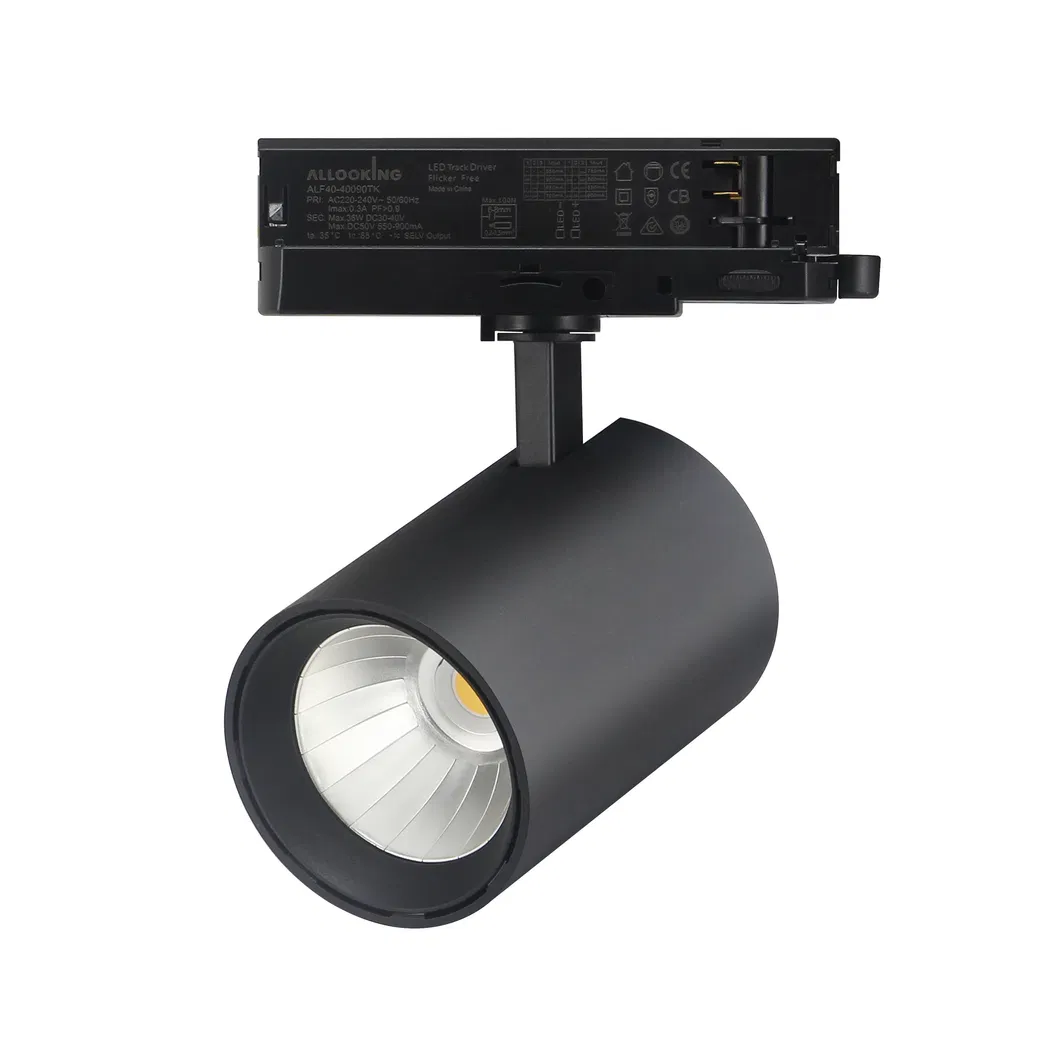

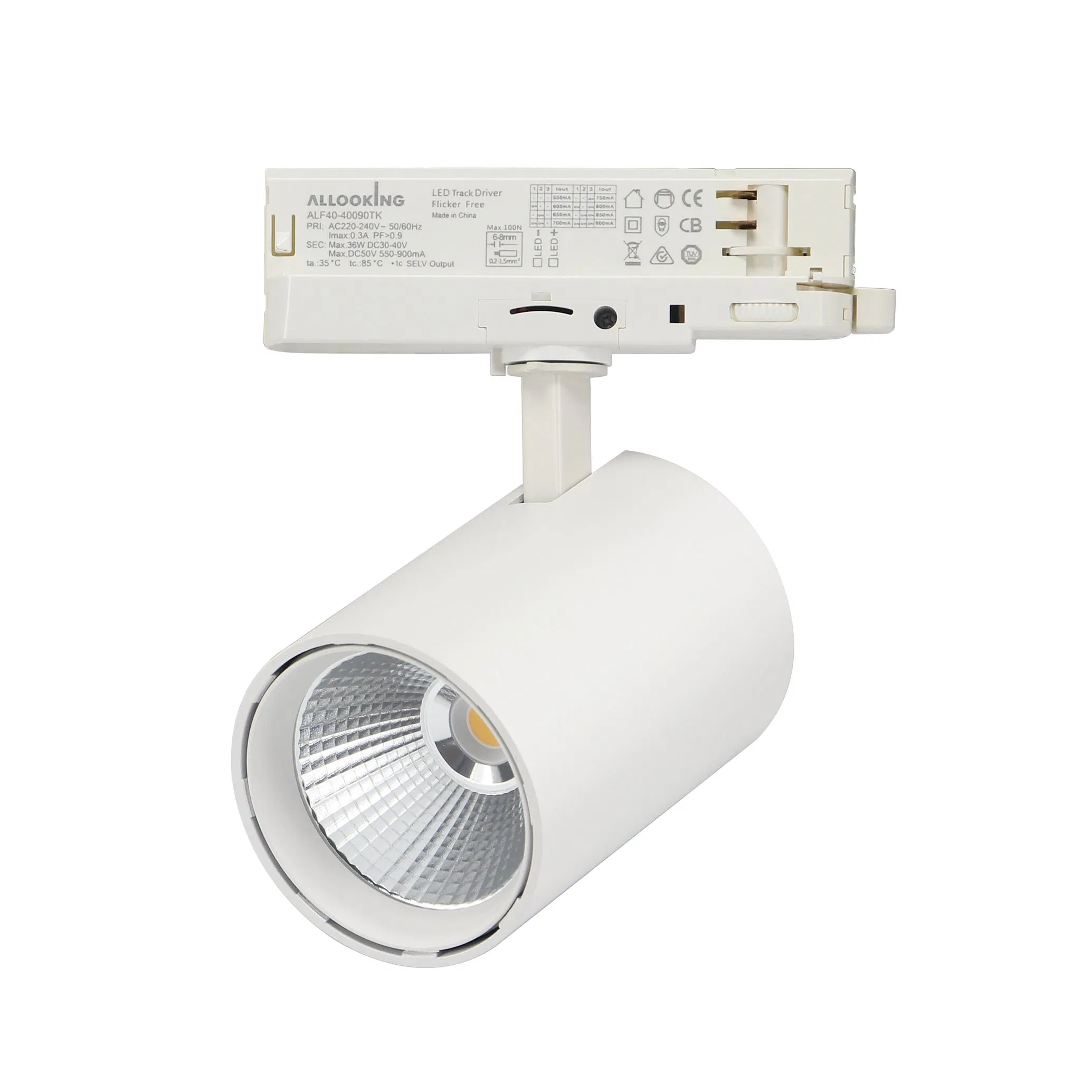

Aluminum Retail Track Lighting 35W COB LED Track Spot Light

This high-performance COB LED track light features anti-glare technology and original Citizen or CREE chips. Designed for commercial and retail spaces, it supports 4-wire, 3-phase systems and offers high lumen output with a sleek aluminum casing.

Technical Data

General Specs	LED Performance	Electrical Specs
Osram COB / White or Black	3000K/3500K/4000K	Input: AC200-240V
IP20 Rating	CRI: 90+	Frequency: 50/60Hz
Aluminum Reflector	L90 / 50,000h Life	Wattage: 35W
Beam Angle: 15/24/36/60°	Lumen > 130lm/W	Power Factor: ≥ 0.92

Application & Environment

Typical Applications:

Retail Store Lighting & Product Highlighting
Commercial Spaces & Hair Salons
Sustainable Energy Saving Programs
Spot & General Accent Lighting

Environmental Specs: Temperature Range: -20°C to 40°C; Humidity Range: 0 to 95% non-condensing.

Quality Control & Warranty

QC Standards:

100% Raw material inspection
Full process check during production
500 times ON/OFF cycle testing
Full inspection before shipping

Limited Warranty:

Two-year warranty from the manufacturing date against defects in materials and workmanship. Covers repair or replacement for defective units under normal use conditions.

Frequently Asked Questions

Q1: What brand of LED chips are used in this track light? A: This product utilizes high-quality CREE or Citizen COB LED chips, known for their reliability and superior light quality.

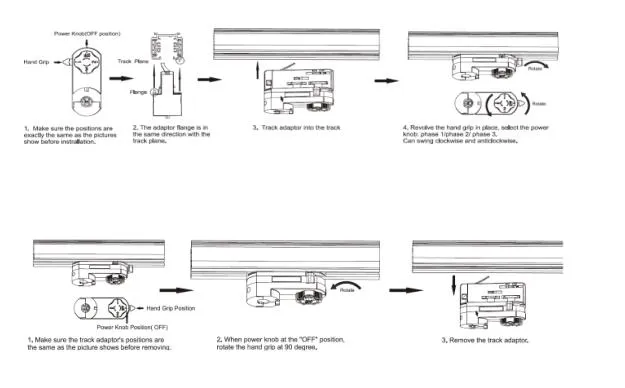

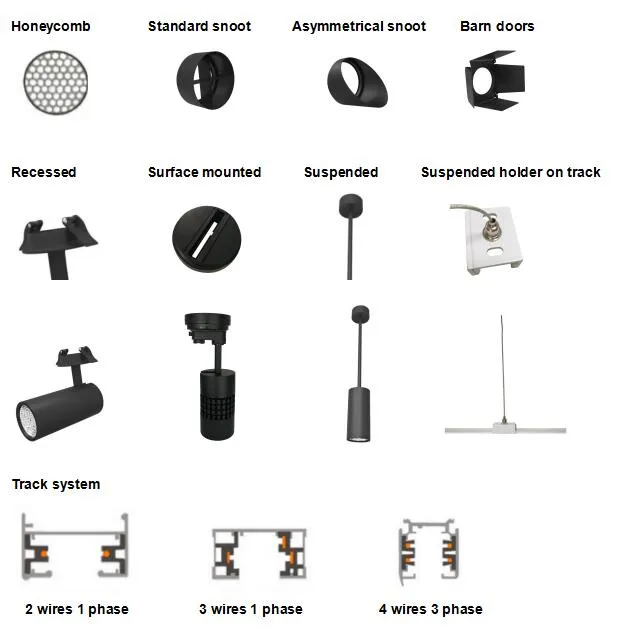

Q2: Is this track light compatible with my existing track system? A: The light comes with versatile adapter options including 2-wire, 3-wire, and 4-wire (3-phase) configurations to fit most standard track systems.

Q3: What is the estimated lifespan of the LED? A: The LED is rated for a lifespan of approximately 50,000 hours (L90), ensuring long-term maintenance-free operation.

Q4: Does the light offer anti-glare features? A: Yes, the design includes an anti-glare COB structure and an aluminum reflector to provide comfortable, focused lighting.

Q5: What beam angles are available for retail display? A: We offer multiple beam angle options including 15°, 24°, 36°, and 60° to suit different highlighting requirements.

Q6: What is the Color Rendering Index (CRI) of this light? A: It features a high CRI of 90+, which is essential for retail environments to accurately represent product colors.
