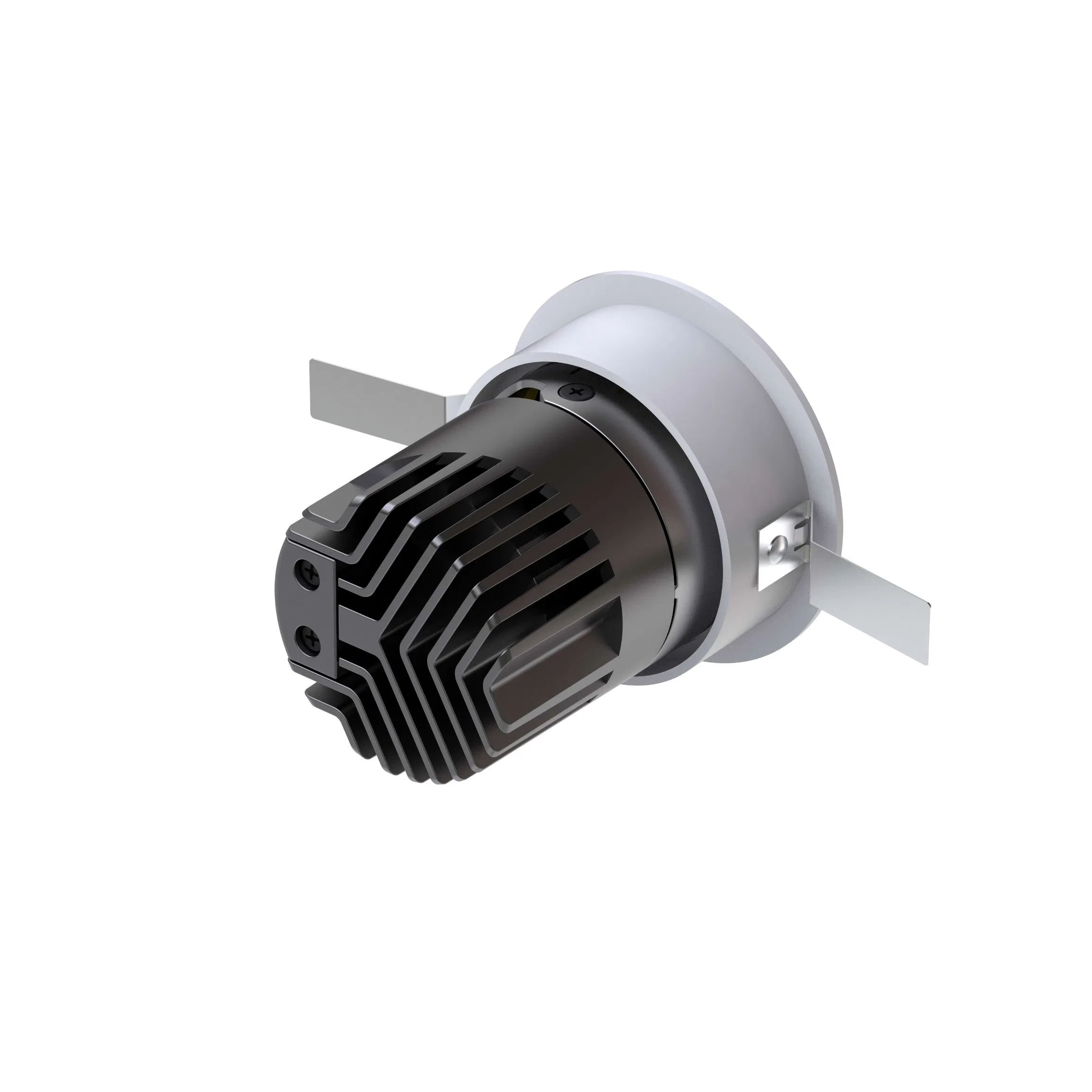

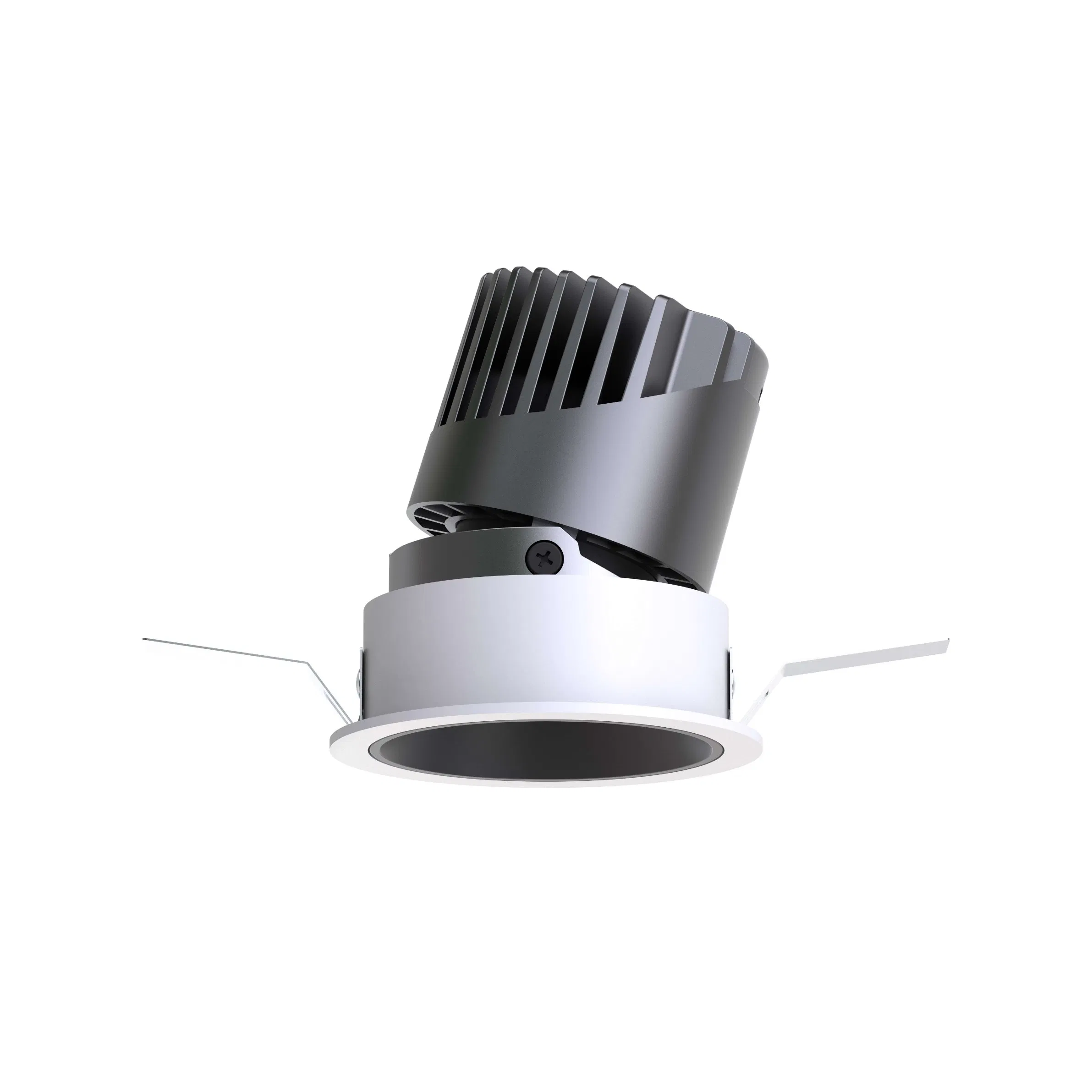

5W-25W Aluminum Adjustable Recessed Dimmable LED Downlight with ETL and CE

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.
AB8001
Power
5W 7W 9W 12W 15W 18W 25W
Color Temperature
Warm White
Material
Aluminum
Light Source
COB
Installation
Recessed / Trimless
Warranty
5 Years
IP Rating
IP20
Certification
CE, ETL, RoHS
Input Voltage
220-240V / 100-277V
Lumen Efficiency
100lm/W
LED Chip
Bridgelux COB
Product Description

LED downlight is a modern, energy-efficient lighting fixture that is recessed into ceilings or flushed onto ceiling, providing directional illumination. It uses Light Emitting Diodes (LEDs) as its light source, offering superior brightness, longevity and energy-saving.

Key Advantages:
  • One engine for optional frames and optional colors.
  • Reflector beam options: 15° / 24° / 38° / 55°.

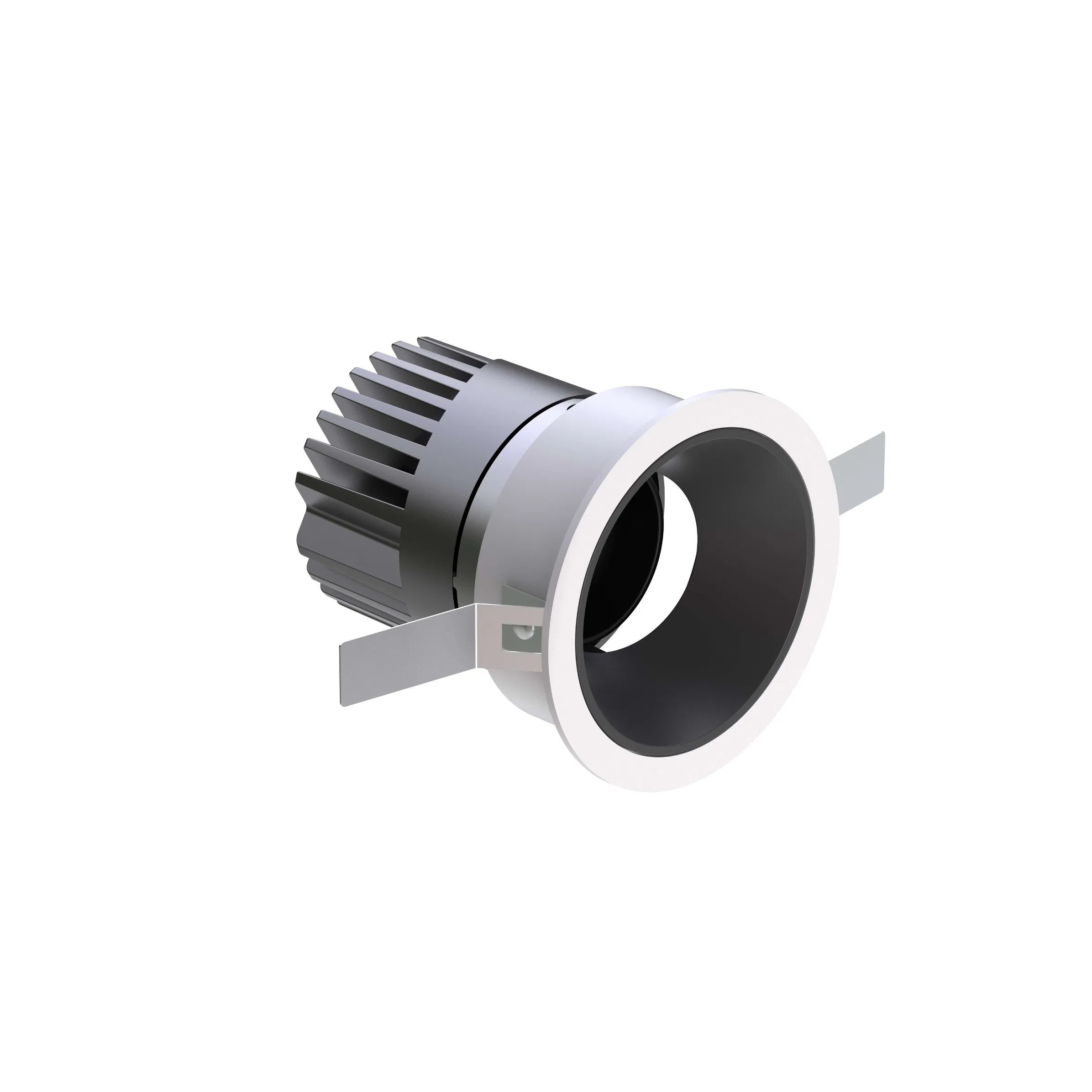

  • Multiple configurations: Narrow trim, trimless, square, double, triple, or four heads.

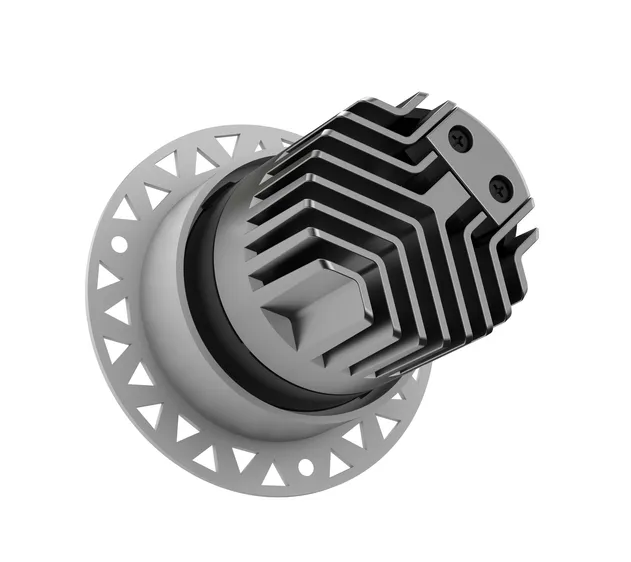

  • Easy replacement: Change heat sink only, no need to change the whole lamp.
  • Deep anti-glare design and easy disassembly.

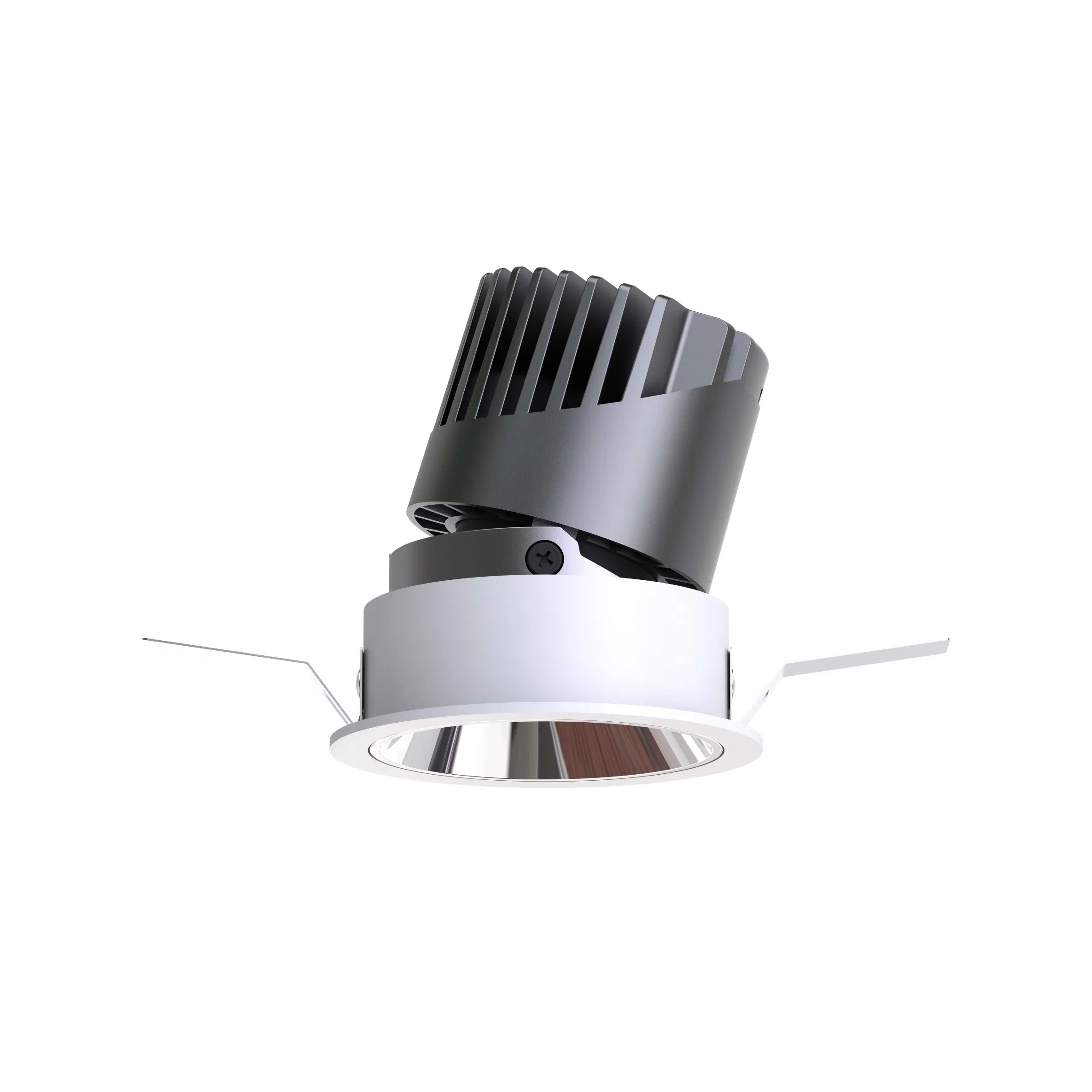

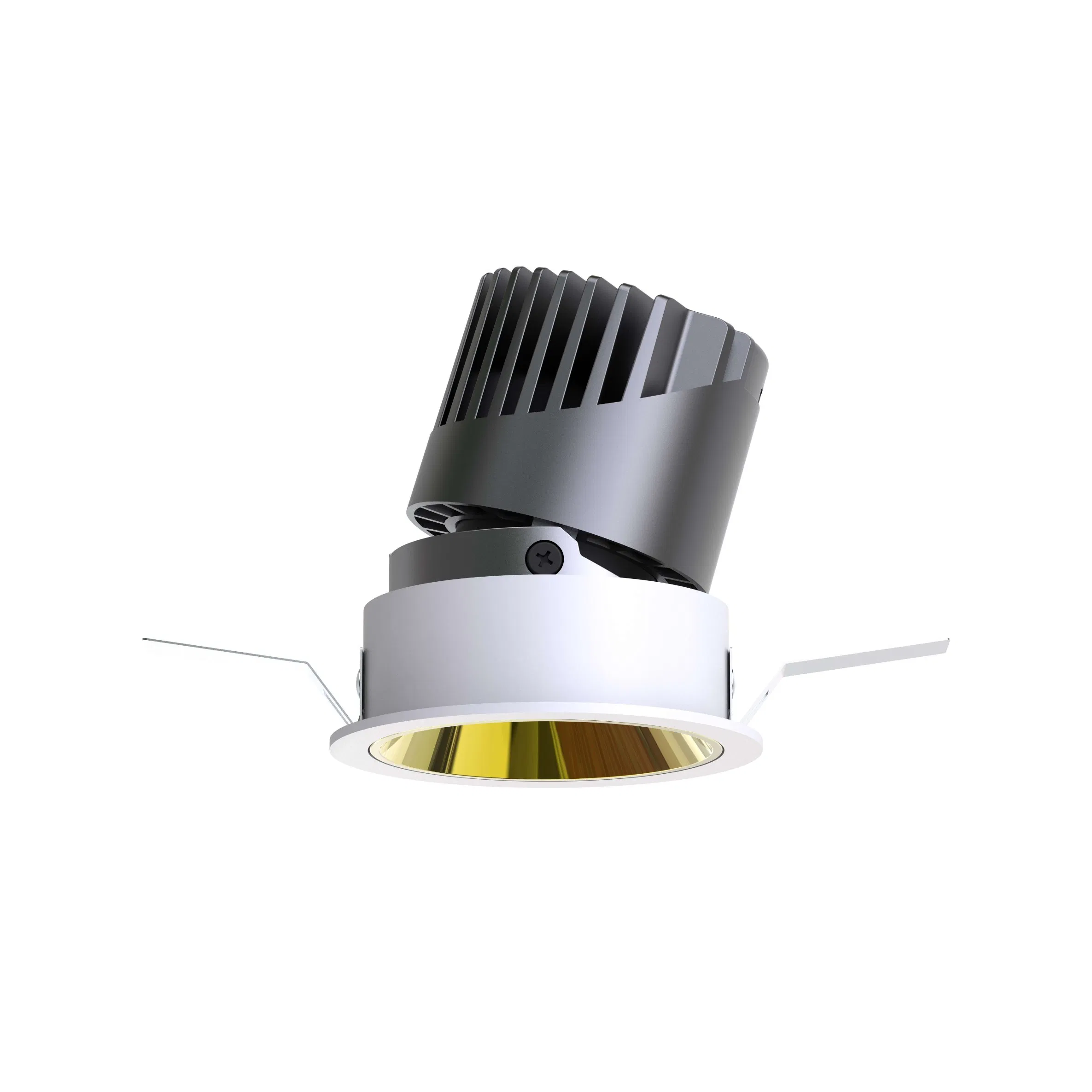

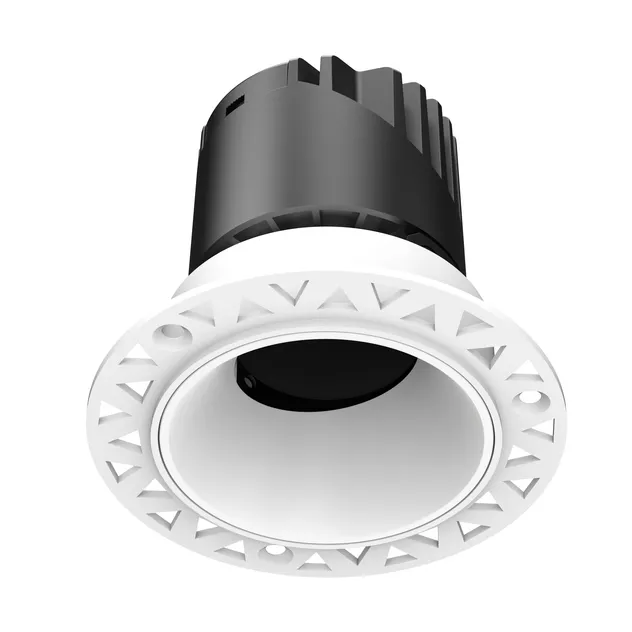

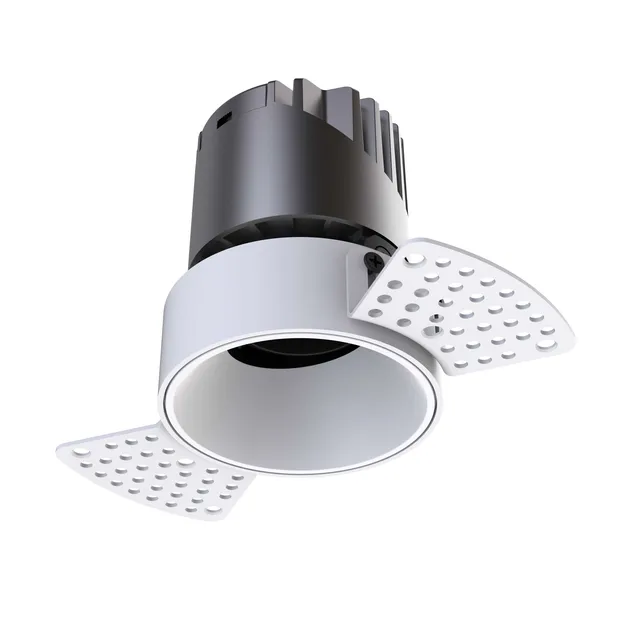

  • Reflector colors: White, black, black chrome, chrome, rose golden.
  • High-quality components: CREE/Citizen LED chips and Tridonic/LTECH drivers.
  • Dimming support: 0-10V / Triac / Dali / Dmx / Push Dim / CCT Tunable.

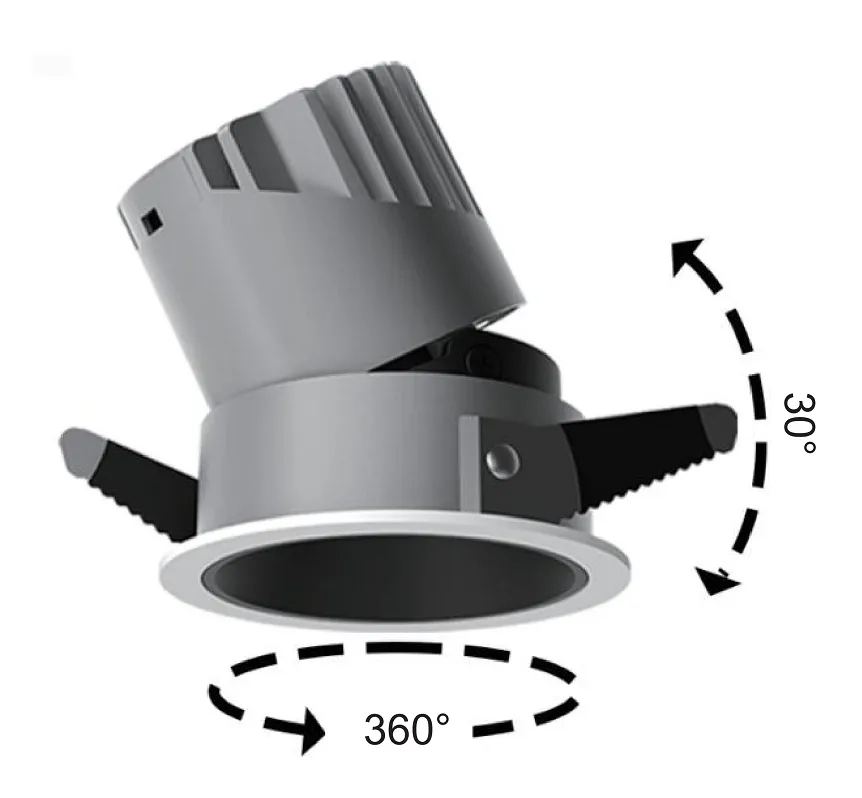

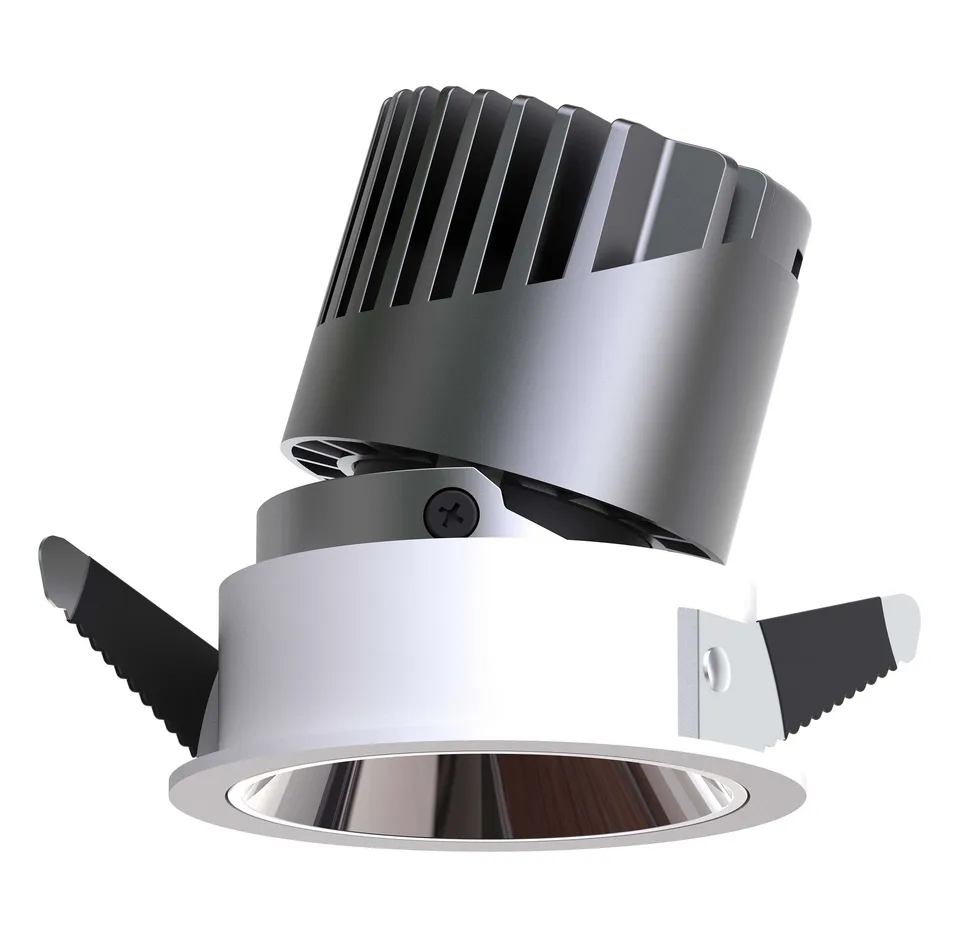

  • 30° adjustable and 360° rotatable.
Technical Specifications
Part Number Size Cutout Beam Angle Efficiency
AB8001-5Wφ65*H75mmφ55mm15° 24° 38° 55°100Lm/w
AB8001-7Wφ85*H79mmφ75mm
AB8001-9Wφ85*H90mmφ75mm
AB8001-12Wφ85*H100mmφ75mm
AB8001-15Wφ85*H100mmφ75mm
AB8001-18Wφ105*H105mmφ95mm
AB8001-25Wφ105*H120mmφ95mm

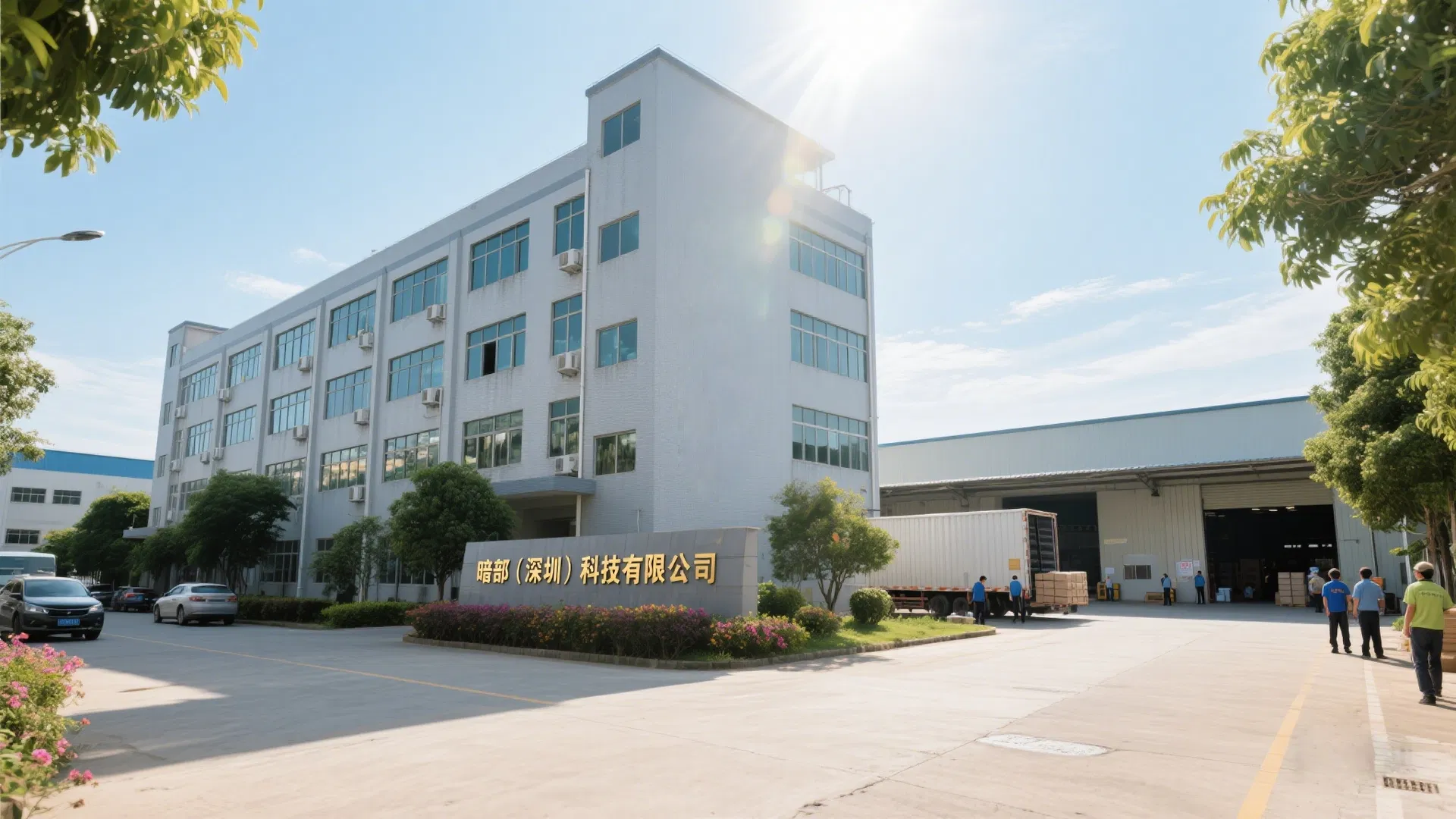

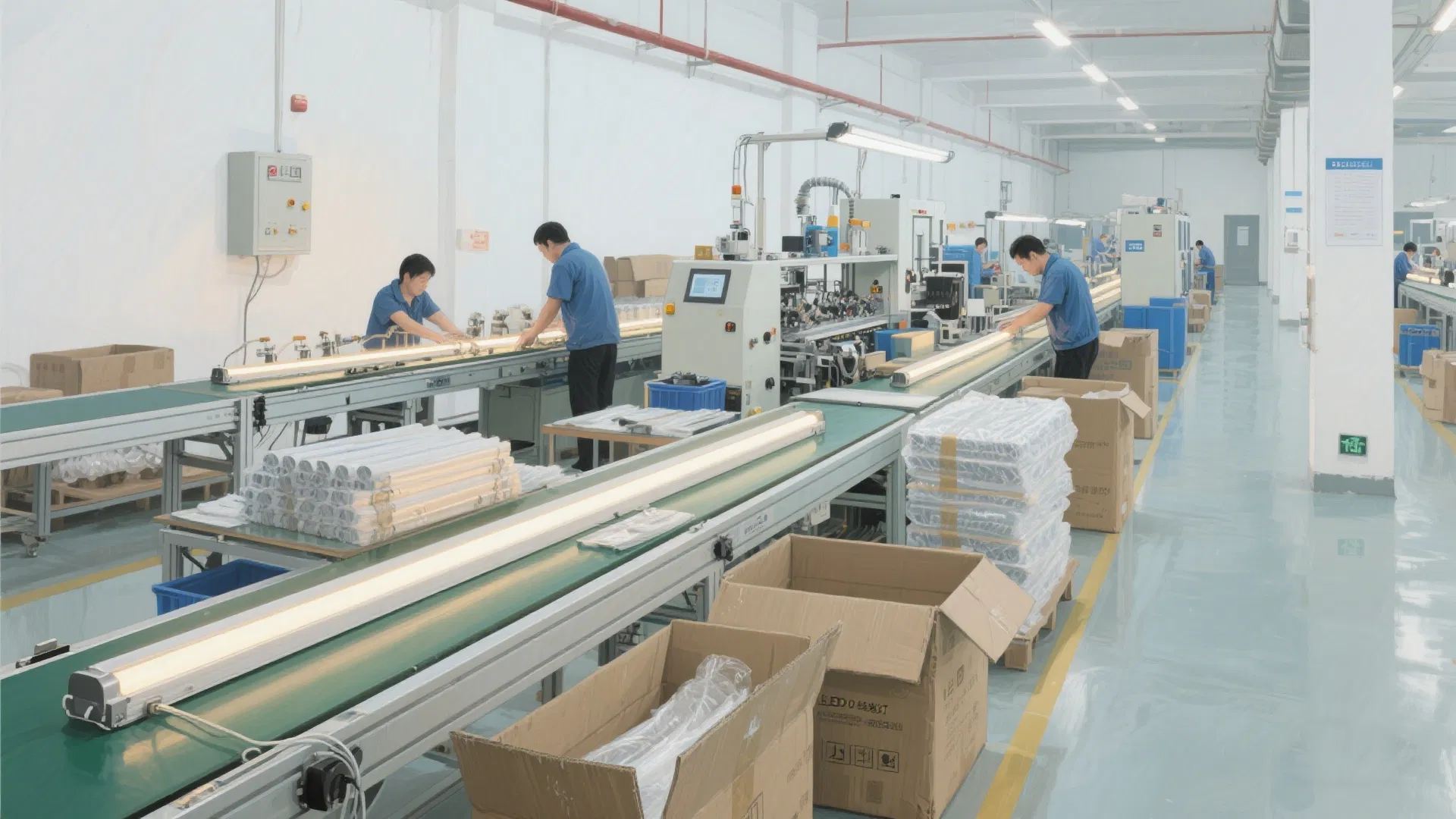

Manufacturing Excellence

With over a decade of excellence, our facility has been at the forefront of LED lighting innovation, delivering high-quality, energy-efficient lighting solutions to clients worldwide. We specialize in designing, manufacturing, and supplying premium LED linear lights, downlights, and other commercial and residential products.

Packaging & Shipping
  • Express Shipping: DHL/FedEx/UPS (3-7 days) for urgent samples.
  • Air Freight: Cost-efficient for medium shipments (5-10 days).
  • Sea Freight: Best for bulk orders and large-volume shipments.
  • Land Transport: Reliable solutions for regional deliveries.
  • Custom Packaging: Neutral cartons or customized branding available.
Frequently Asked Questions
Q1: Where is your production facility located?
Our factory is located in Shenzhen City, Guangdong Province, China.
Q2: What is the Minimum Order Quantity (MOQ)?
We maintain a low MOQ policy. You can order as little as a single piece for sample inspection and testing.
Q3: Do you offer OEM and ODM services?
Yes, we have a dedicated R&D department capable of producing according to your specific samples or technical drawings.
Q4: What is the typical lead time for orders?
Samples generally take 5-7 days, while bulk production orders typically take 15-20 days depending on the volume.
Q5: What are your warranty terms?
We offer a comprehensive 5-year warranty. If a product fails during this period, we will provide a new replacement.
Q6: What shipping terms do you support?
We offer flexible delivery terms including FOB, CFR, CIF, EXW, DDP, DDU, and Express Delivery to suit your logistics needs.
