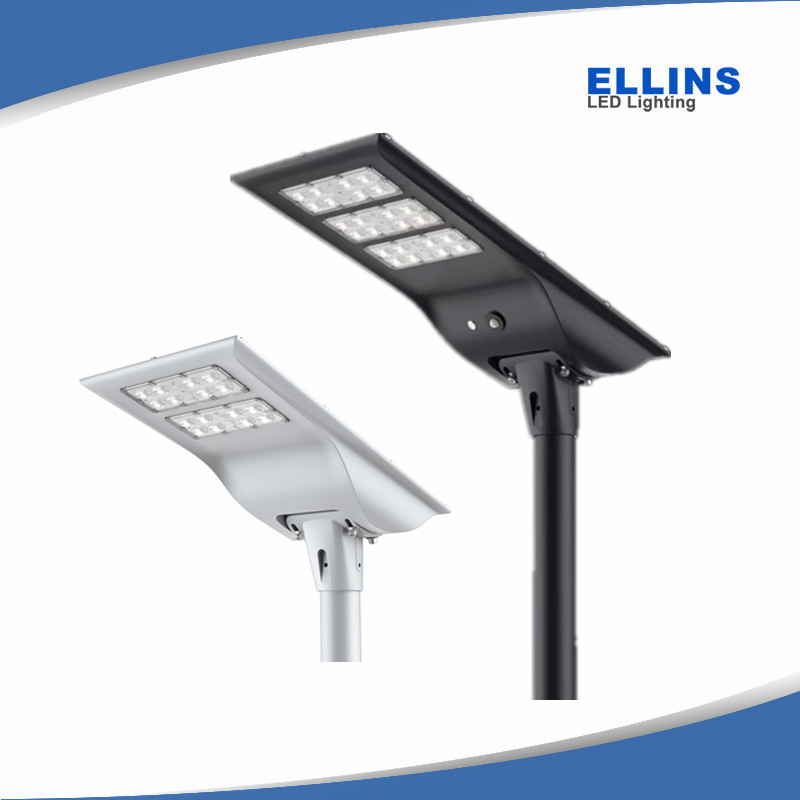

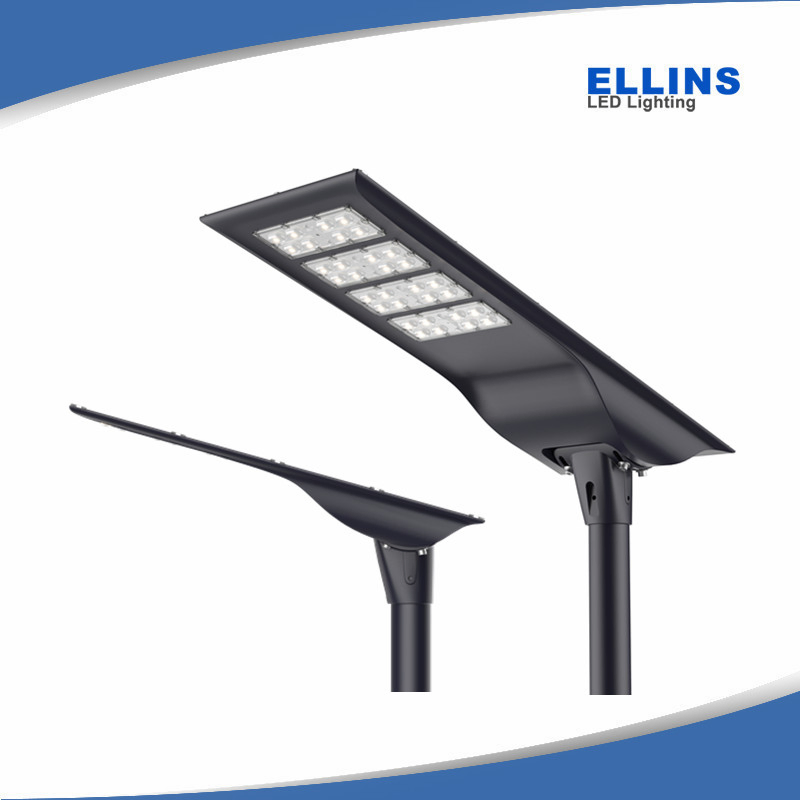

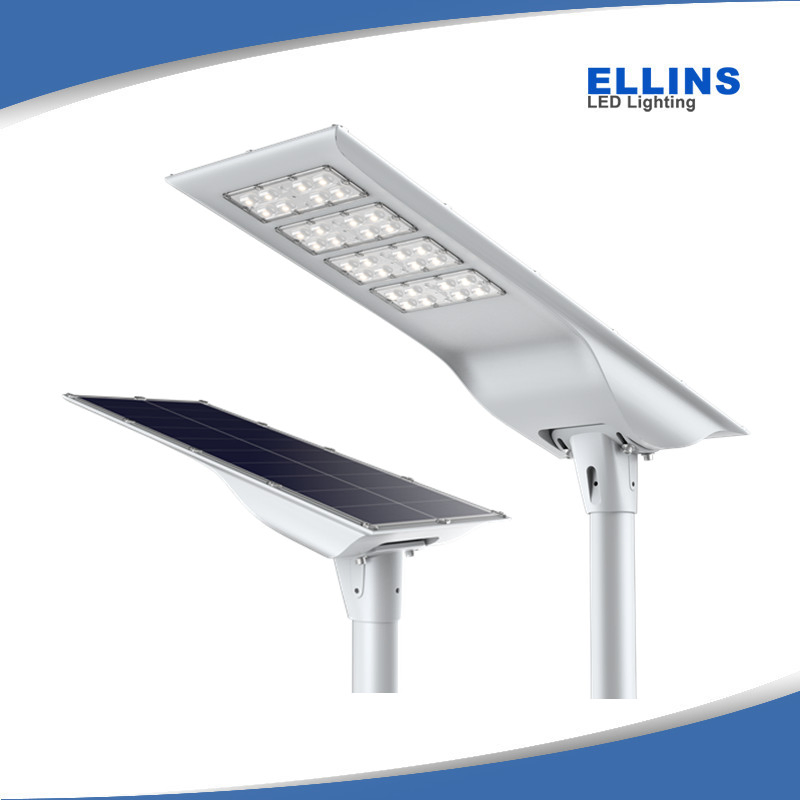

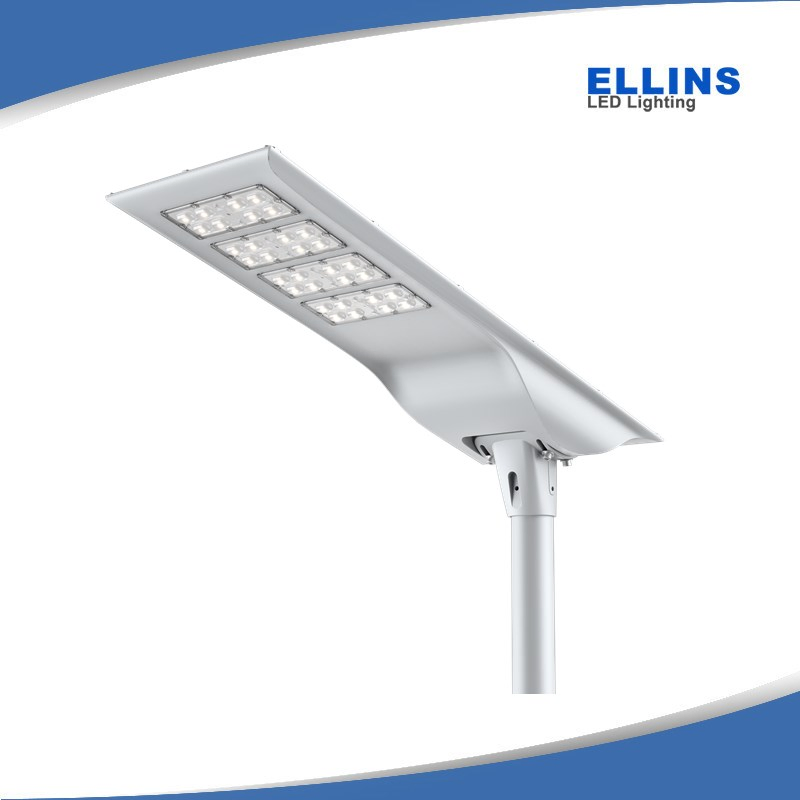

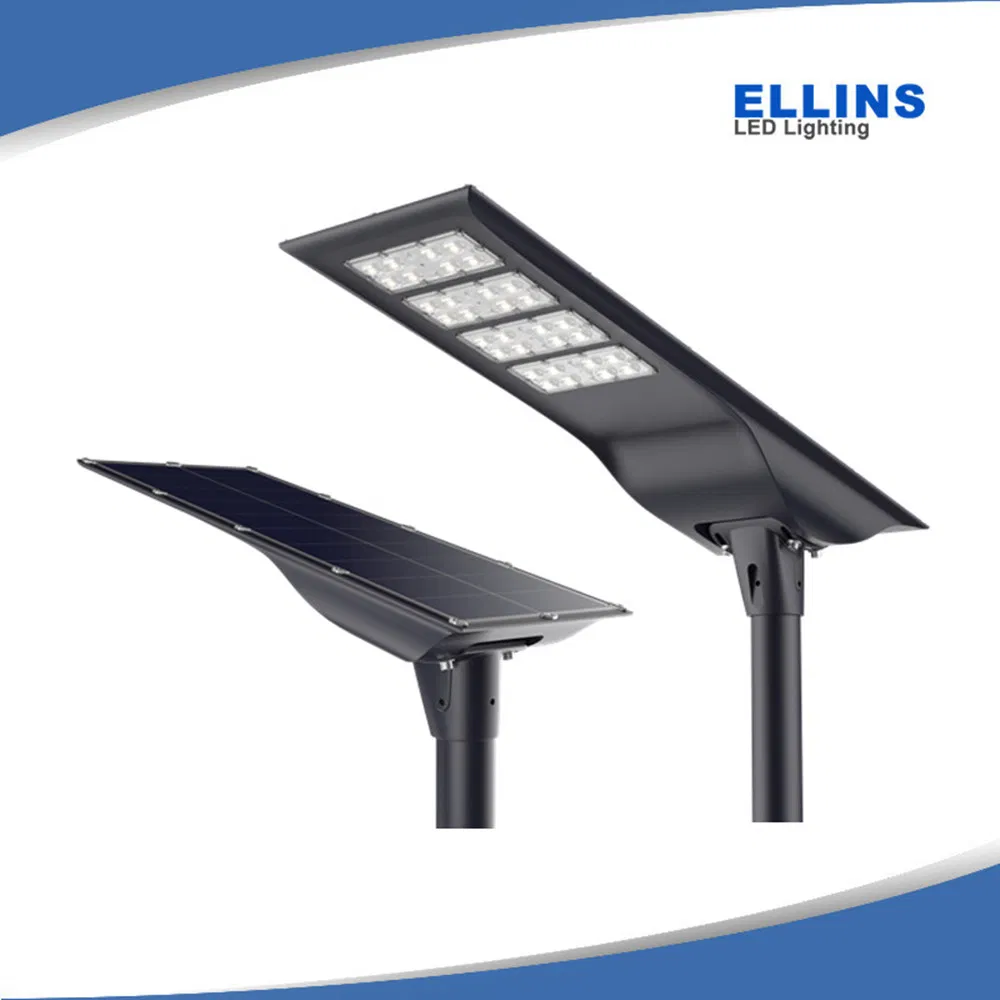

Outdoor Lighting Solar Energy Garden Lawn Lamp MPPT Integrated Solar Powered LED Street Light

Customization: Available
After-sales Service: 5 Years
Warranty: 5 Years

Product Description

📊 Overview & Basic Info
Model NO. ELS-ST03 Light Source LED Lamp
Material Aluminum Light Type Solar
Color Temp Cool White Power Range 30W / 40W / 50W / 60W / 80W / 100W
Technics Die-Casting Illumination Time 4-5 Days
Cell Type LiFePO4 Battery Charging Time 6 Hours
IP Rating IP66 Certification CE, RoHS
LED Brand Bridgelux / CREE Chip Lumen 210lm/W
Solar Panel Monocrystalline Sensor Motion Sensor
💡 Product Advantages
Integrated Solar Powered LED Street Light
Unique Integration Design Easy to transport, install and maintain.
Rotating Lamp Bracket Adjustable in vertical and horizontal directions for optimal sun exposure and light coverage.
Charge & Discharge Management Software and hardware protection for the battery, supporting charge at 0V.
High Light Efficiency High-efficiency LED chips, reaching up to 210lm/w.
Infrared Sensor Intelligent energy-saving mode triggered by human presence.
Updated Battery Program Embedded single string control technology for a more stable and longer lifespan.

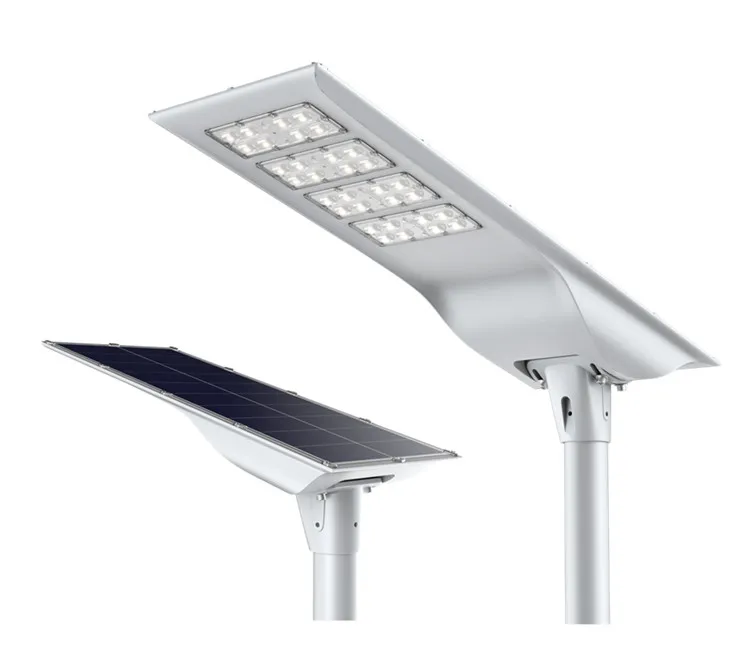

Solar Energy Garden Lamp
📝 Technical Specifications
Parameter Details
Lamp Efficiency200lm/W
Color Temperature3000K / 4000K / 5000K / 6000K / 6500K
Material TreatmentHigh-end Aluminum Alloy + Anodizing
Lithium Battery12.8V / 25.6V LiFePO4 Battery
Discharge Time12 hours per day, support 4-5 rainy days
Install Diameter78mm
Working Temperature-25ºC to +65ºC
Lighting ModePIR Sensor + Remote Controller + Time Control
Warranty5 Years
📸 Detailed Photos

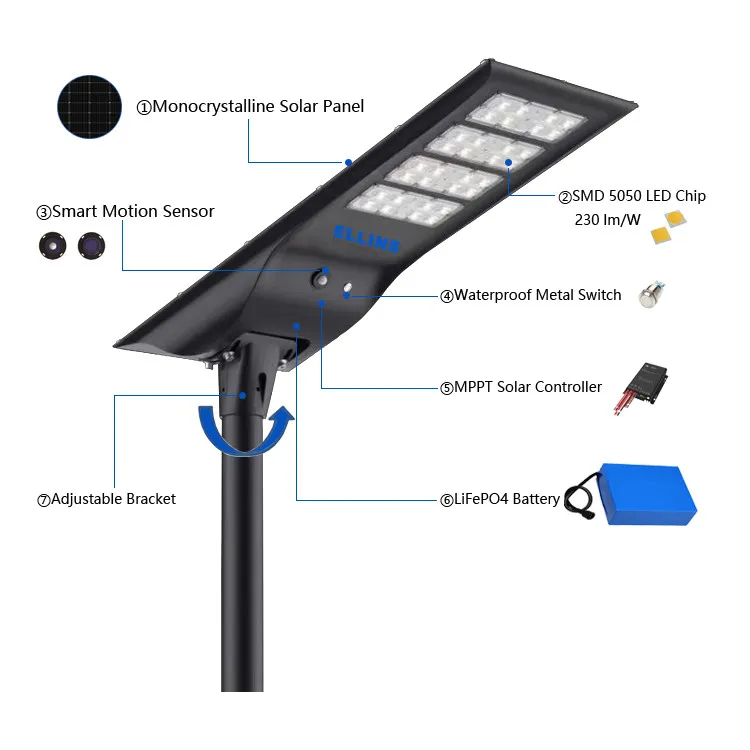

Detail 1

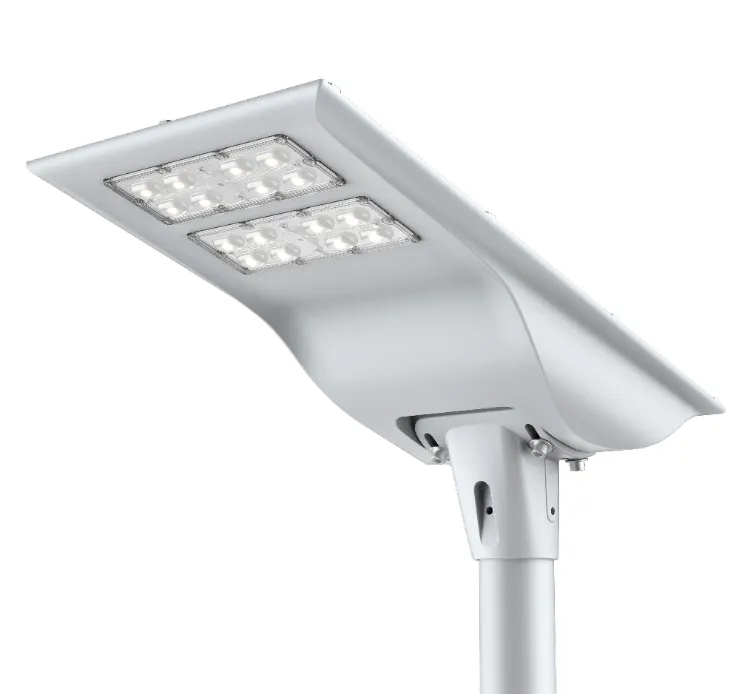

Detail 2

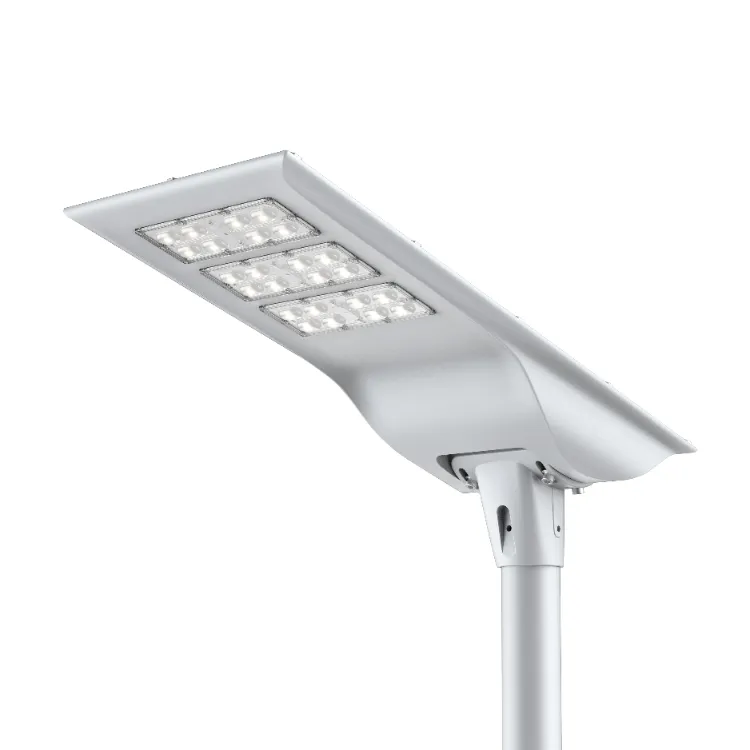

Detail 3

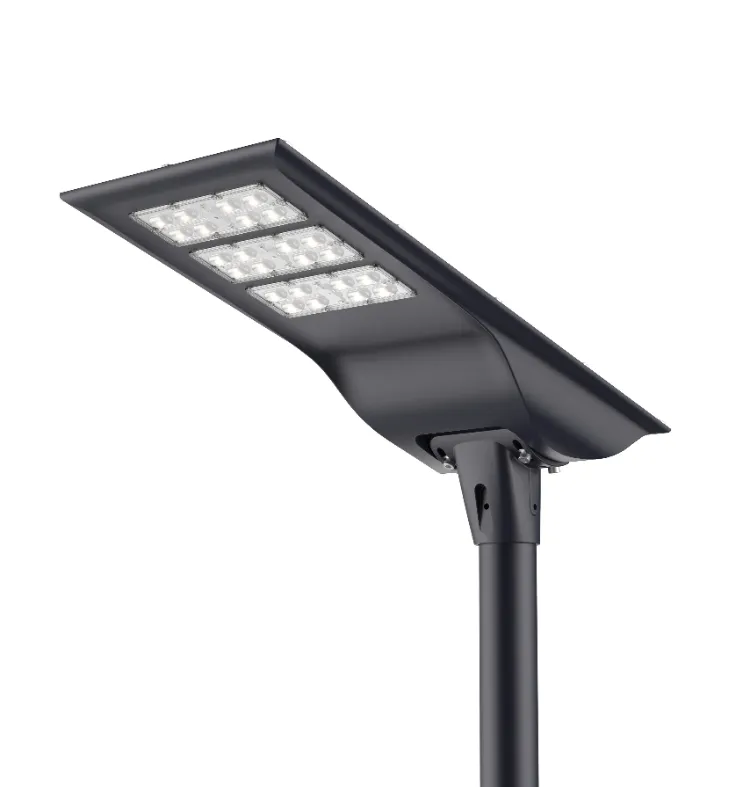

Detail 4

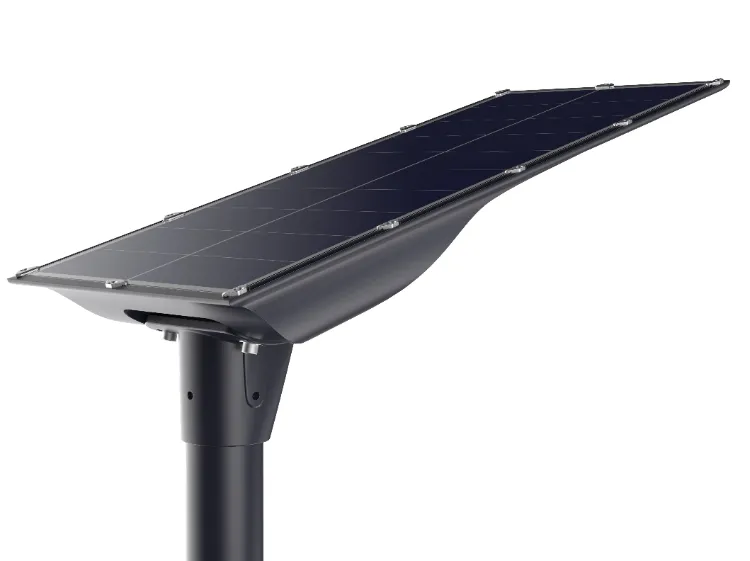

Detail 5

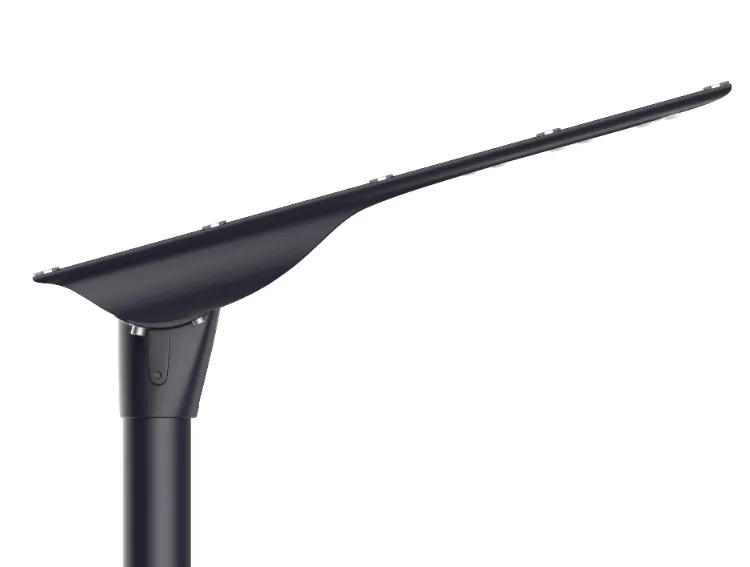

Detail 6

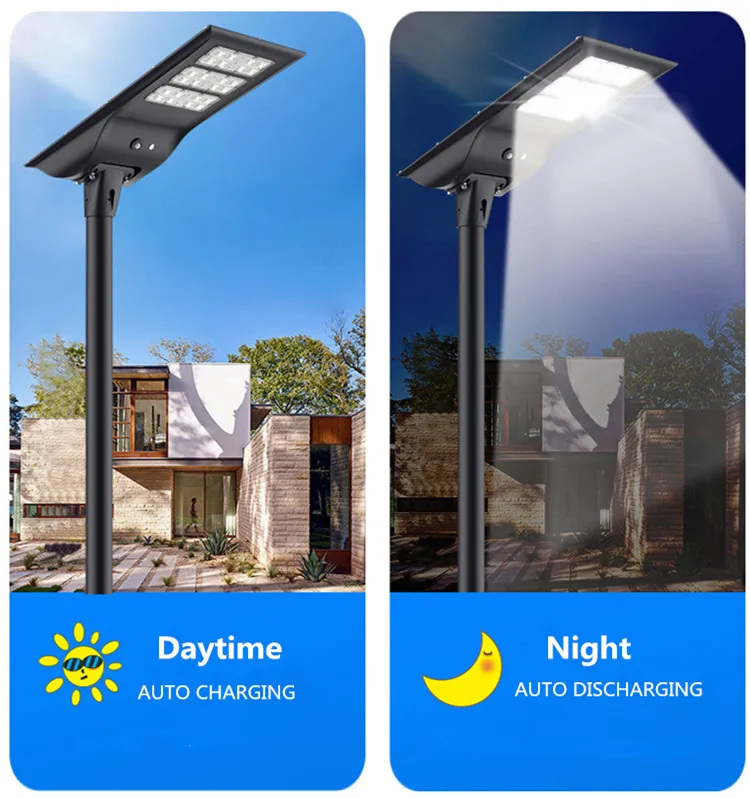

Working Mode
Working Mode
🌍 Applications & Production

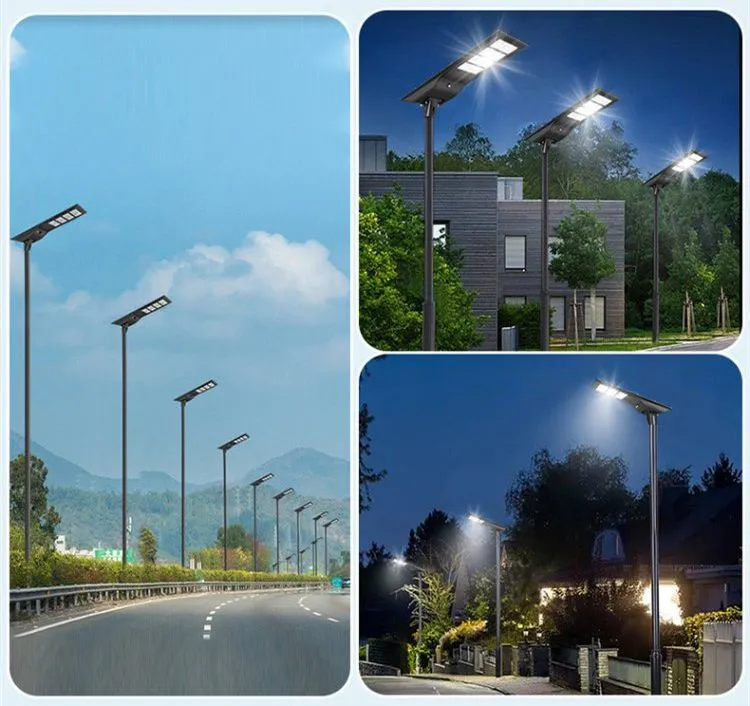

Application 1

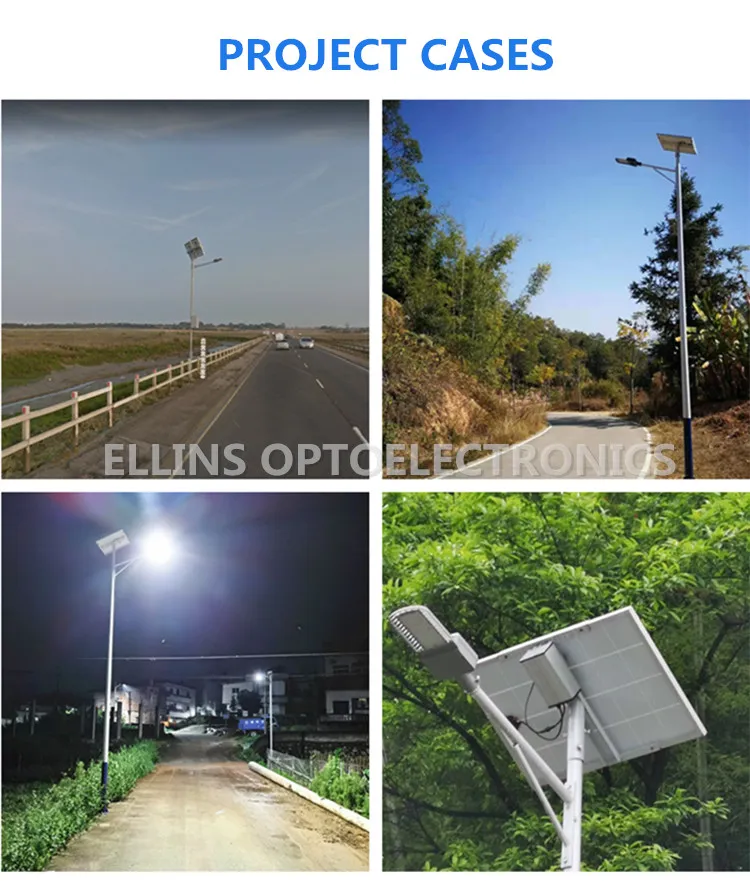

Application 2

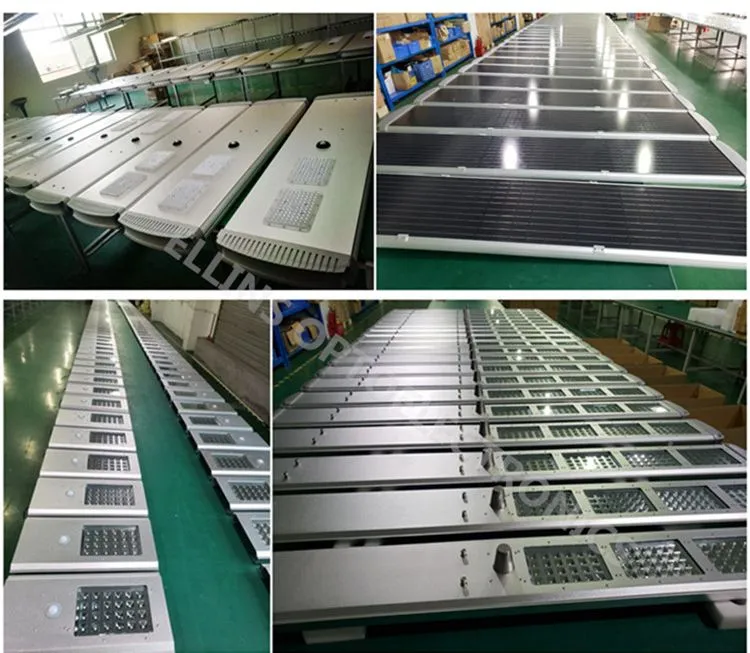

Production Process

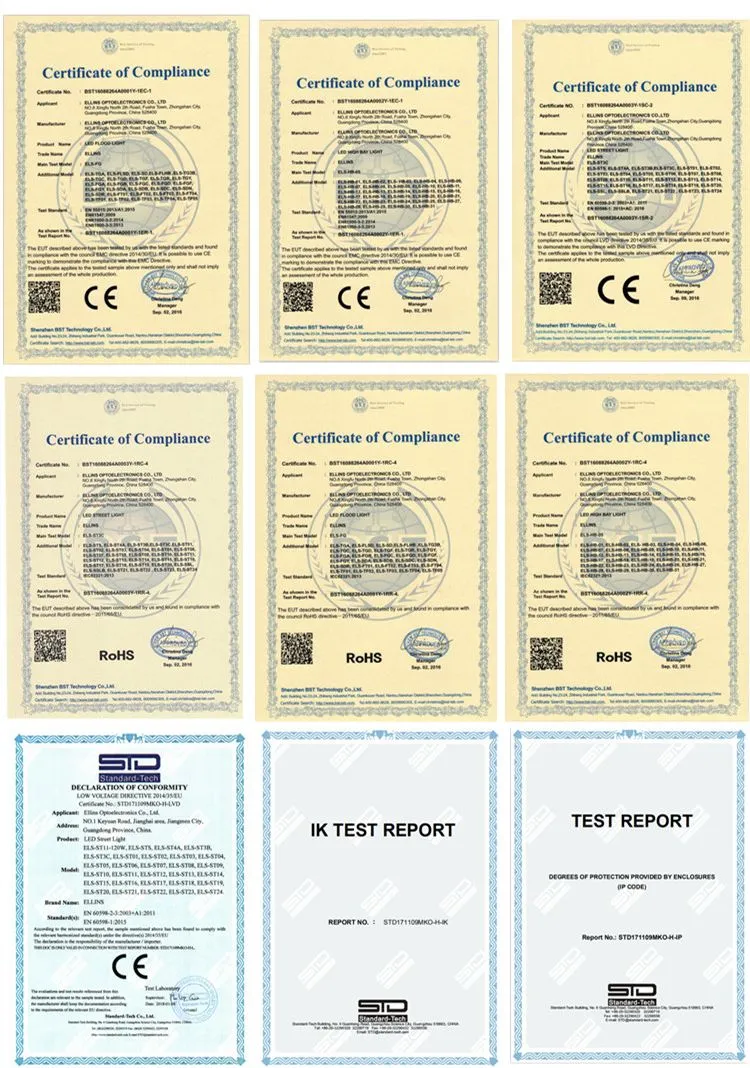

📜 Certifications
Certifications
🏢 Industrial Excellence

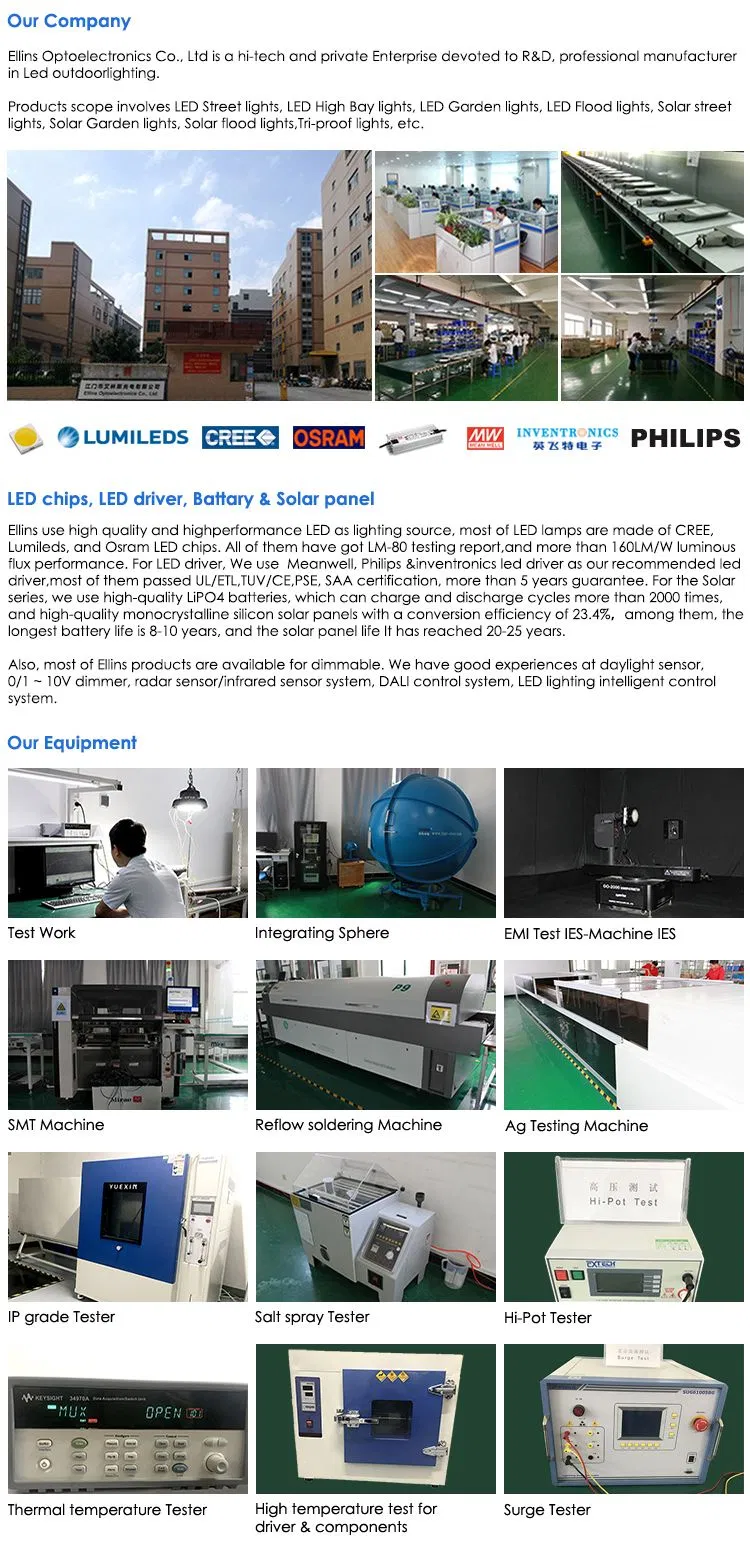

Industrial Facility
Frequently Asked Questions
What is the lifespan of the solar panel and LED chips?
The monocrystalline solar panels are designed for a lifetime of 25 years, while the high-efficiency LED chips (CREE/Bridgelux) provide long-lasting performance with up to 210lm/W.
How many days can the light operate during rainy or cloudy weather?
Thanks to the high-capacity LiFePO4 battery and MPPT controller, the system supports 4 to 5 consecutive days of illumination even without direct sunlight.
What are the available control modes for this solar street light?
The light features an intelligent management system including a PIR Motion Sensor, Remote Control (up to 30 meters), and Auto Time Control (dusk to dawn).
Is the battery replaceable and how many cycles does it support?
Yes, the integrated design allows for maintenance. The LiFePO4 battery is high-quality, supporting over 2500 charging cycles.
What is the waterproof rating and suitable environments?
The light is IP66 rated, making it completely dust-tight and protected against powerful water jets. It is ideal for gardens, streets, and coastal areas with temperatures ranging from -25ºC to +65ºC.
What is the warranty period for this product?
We provide a 5-year limited manufacturer's warranty for the ELS-ST03 solar street light series.
