Basic Product Information
Application
Household Appliances
Protection
Two Lines of Fuse
Bus Port
Two RS485 Bus Ports
Network Mode
TCP/IP Network Interface
Package Size
46.00cm * 35.00cm * 8.00cm

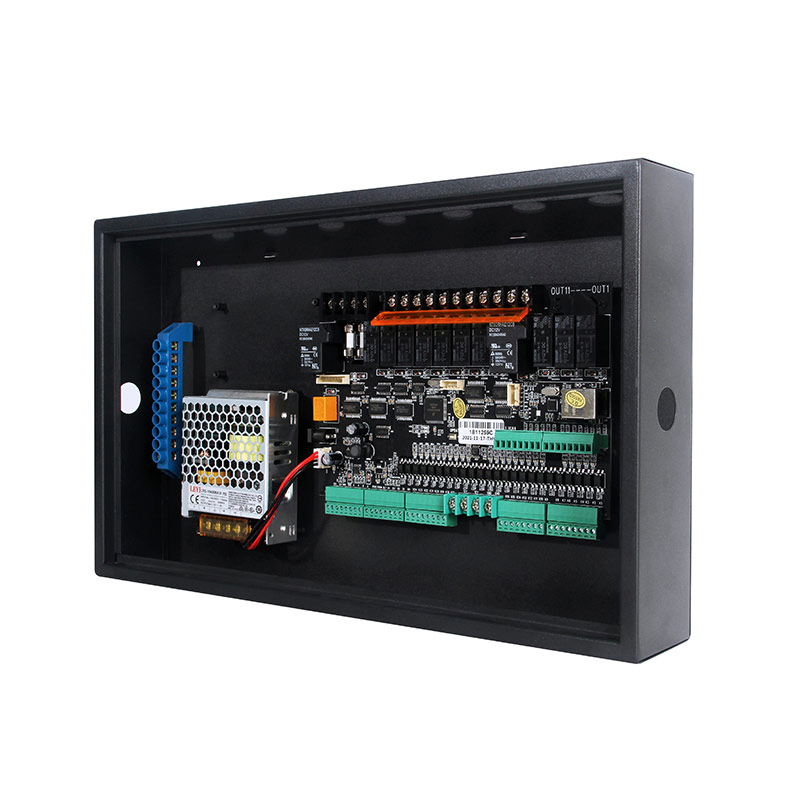

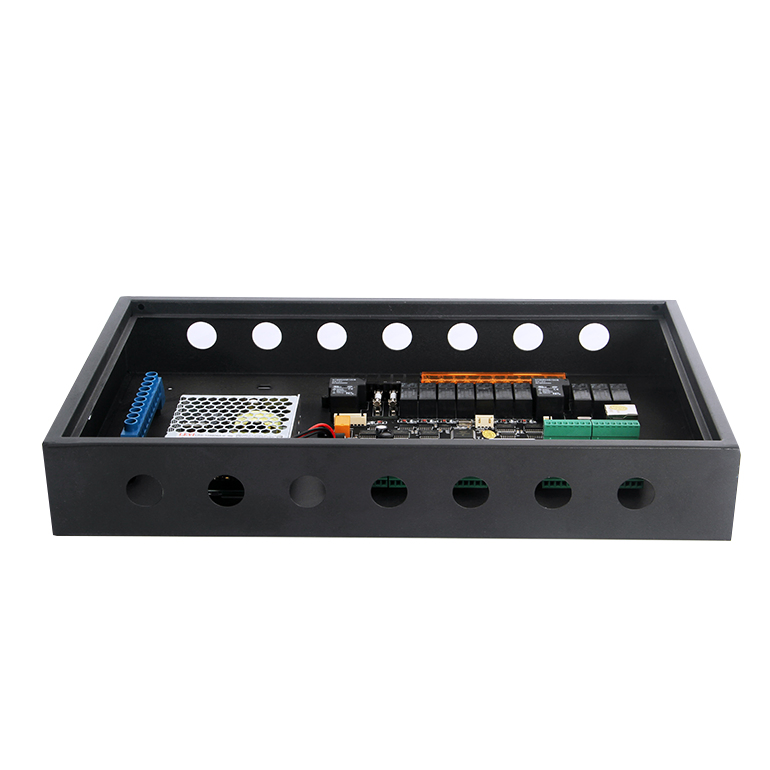

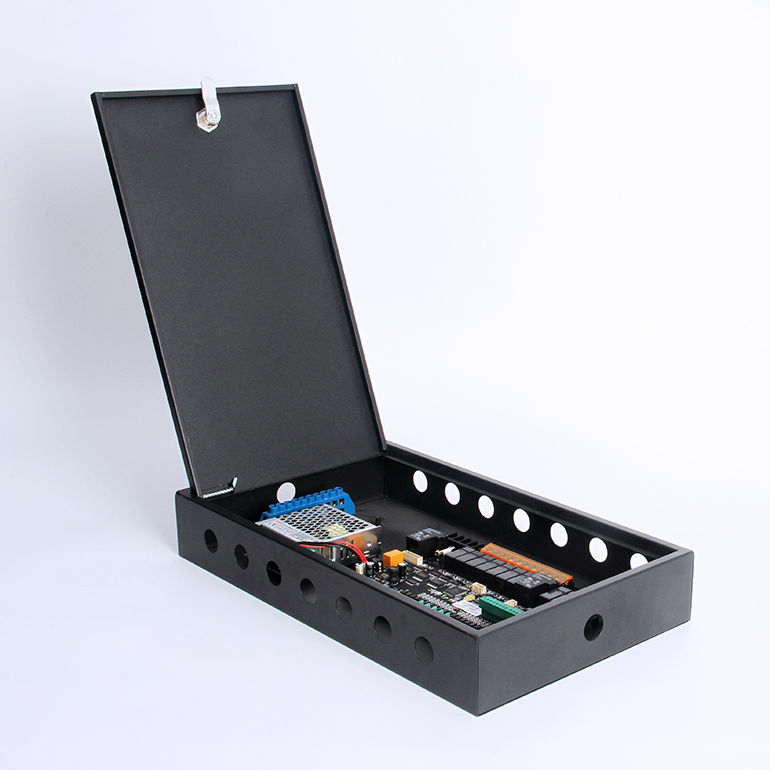

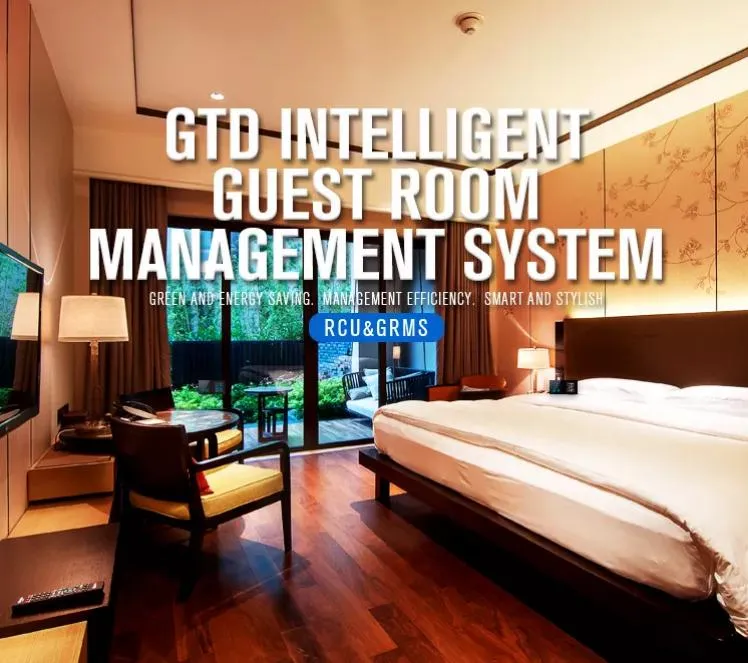

Mid-scale Hotel GRMS & Lighting Control RCU Solutions
🎲 Room Control Unit (RCU) Introduction
The hotel room intelligent control system utilizes automatic control, network information, artificial intelligence, and big data technologies. The dedicated network's core is the RCU (guest room intelligent controller), which is based on cloud platform architecture. Security systems, lighting systems, audio and video systems, air conditioning terminals, curtain motors, and room services are all integrated into this intelligent management system.
Key Objective: Enhance environmental quality and customer experience while achieving "green and energy saving, management efficiency, intelligence and fashion."
📍 Scope of Application

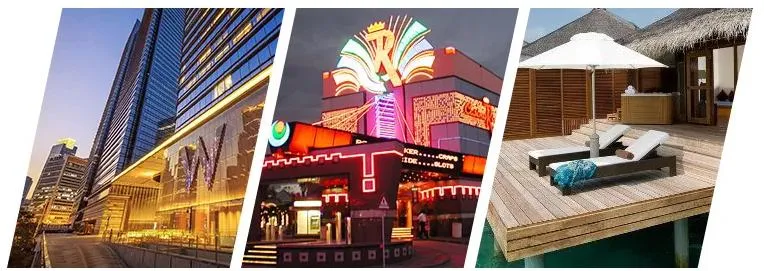

RCU is primarily utilized in hotels, guesthouses, bed and breakfasts, villas, clubs, apartments, and other smart guest room projects. The RCU features a built-in microprocessor chip (integrated MCU) with an ARM 32-bit processor. This ensures fast processing, low heat, and a long service life.
🚀 Main Product Features
1. Connectivity: Connects via 100M TCP and background cloud servers for remote control, status synchronization, and debugging.

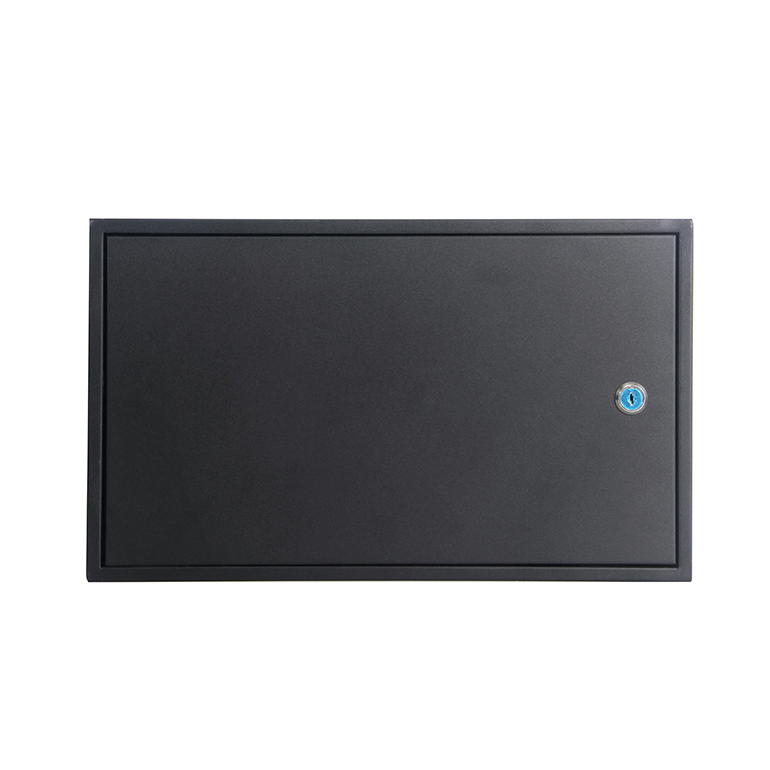

2. Durable Construction: 1.0mm cold-rolled steel plate box with high strength.
3. Power Efficiency: Conversion rate >80% with low calorific value. Honeycomb metal shell for quick heat dissipation.

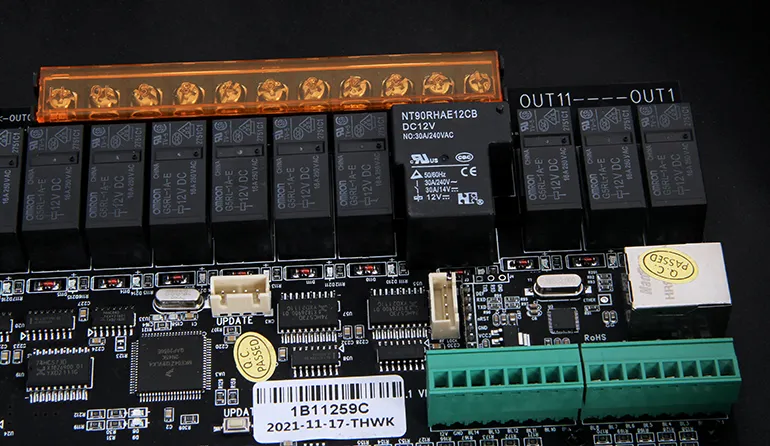

4. High-Quality Relays: Standard 16A and high-power 30A moistureproof relays with a service life of over 100,000 actions.
5. Scalability: 12 relay outputs, 24 weak current inputs, and 18 weak current outputs. Supports up to 64 node devices on 485 bus.
🛡 Security and Intelligence
High Security: Adopts weak voltage control for high voltage. All switch panels operate on 12V signals, eliminating electric shock risks for visitors.
Expansibility: Beyond lighting and AC, it supports face recognition and card-less check-in expansions.

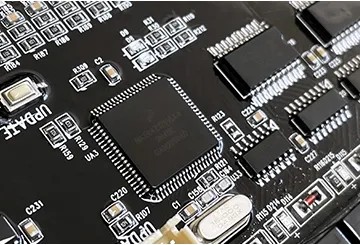

Stability: Uses industry-leading relays (Omron) and Freescale chips for 15+ years of reliable operation.
📝 Technical Specifications
| Feature | Specifications |
|---|
| Service Voltage | Wide voltage input (100~240V). Overvoltage and overload protection. |
| High Voltage Circuit | 10 channels 220V/16A AC output; 4 channels 220V/30A AC output. |
| Low Voltage Circuit | 18 backlight control outputs; 24 dry contact control signal inputs. |
| Communication | 2 channel 485 bus; TCP/IP standard Ethernet interface. |
| Backstage Function | Remote control, real-time synchronization, batch configuration downloads. |
| Support Peripherals | Response speed <300MS. Supports temperature control, voice devices, and motors. |

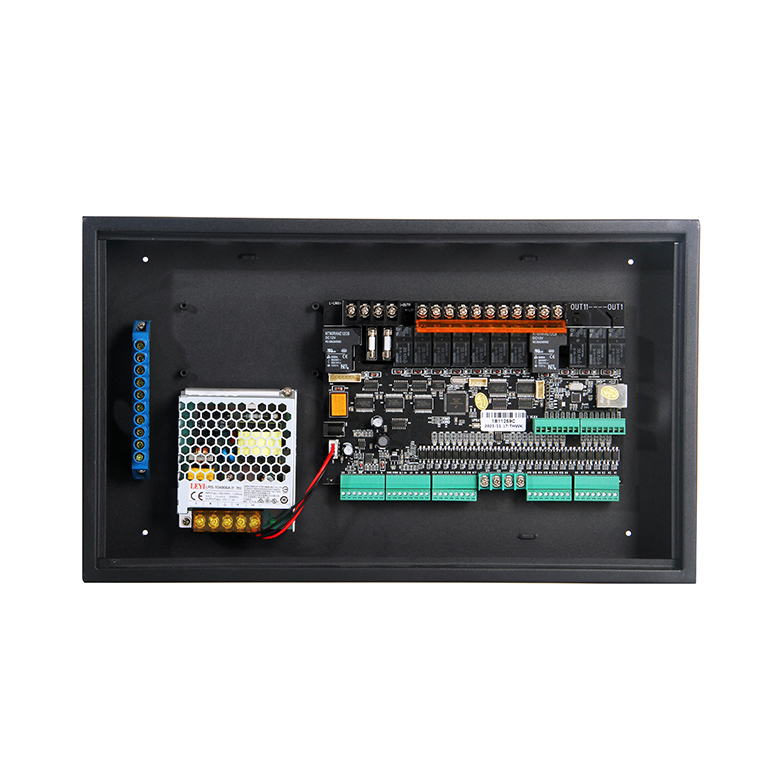

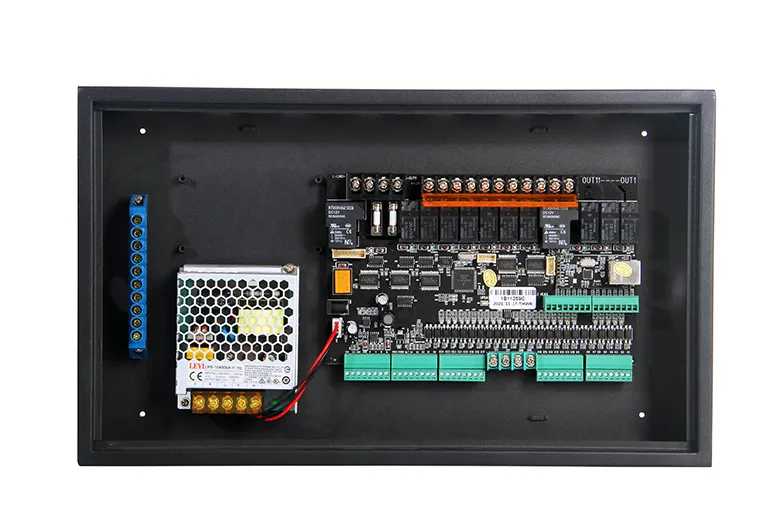

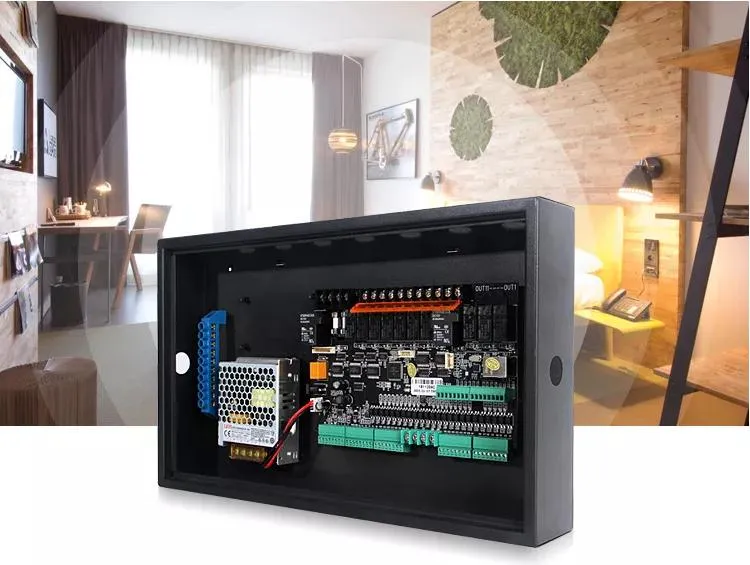

Detailed Photos & System Composition
System Components: Guest room intelligent control host, control panels (lighting, AC, dimming), door displays, energy-saving switches, and management software (Apple/Android compatible).
💻 Management Software
The background control system utilizes B/S architecture. Staff can verify check-in, SOS, and service requests via tablet or phone. The front desk computer accesses a web page directly without needing extra software installations, providing instant room dynamic updates.
Frequently Asked Questions (FAQ)
What is the core function of the JPRCU-12RL?
The JPRCU-12RL acts as the Room Control Unit (RCU), centralizing the management of lighting, air conditioning, curtains, and guest services through an intelligent automated system.
How does the system ensure guest safety regarding electricity?
It uses a weak voltage control design where all user-accessible switch panels are powered by a safe 12V signal, while high-voltage components are isolated within the protected control box.
Can this RCU system integrate with third-party software?

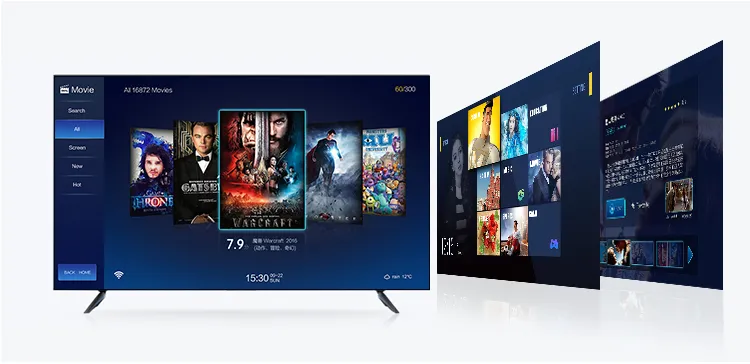

Yes, it is designed to seamlessly connect with Property Management Systems (PMS), IP TV, Google Voice control, and various electronic door lock systems.
What communication protocols are supported for networking?
The system fully supports standard TCP/IP Ethernet for high-speed data transmission and the RS485 bus protocol for internal room device communication.
Is remote management possible with this system?
Absolutely. It supports remote editing, cloud-based debugging, status synchronization, and software updates without the need to physically remove chips or hardware.
Does it support mobile app control for guests?
Yes, the system supports control via smartphones (Android/iOS) and tablets for managing room lighting, curtains, and air conditioning.
