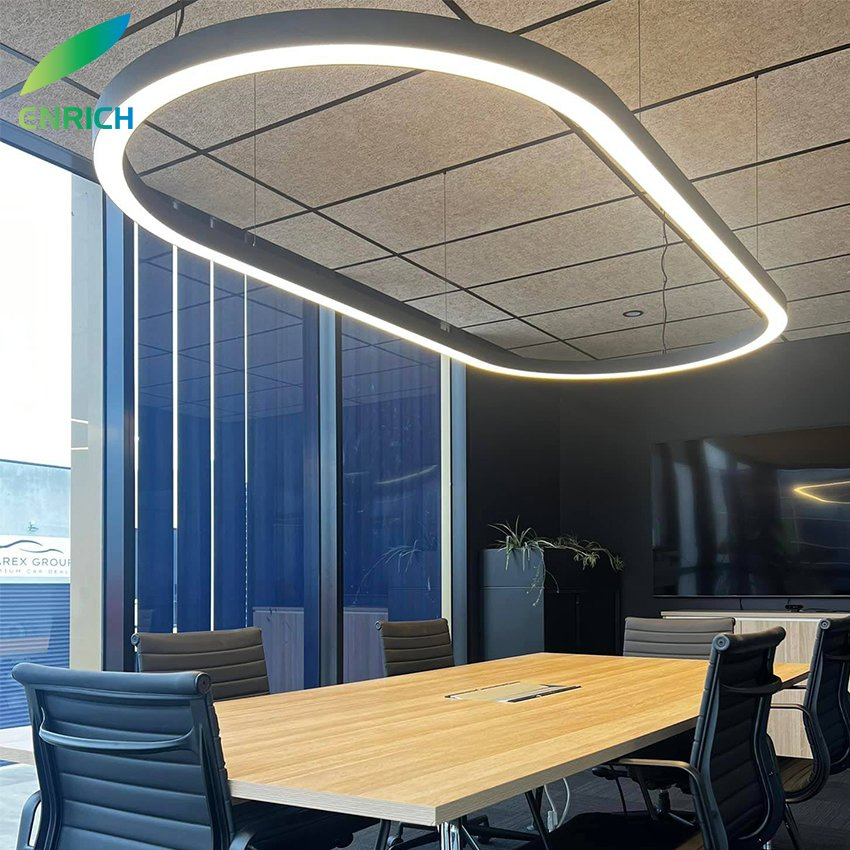

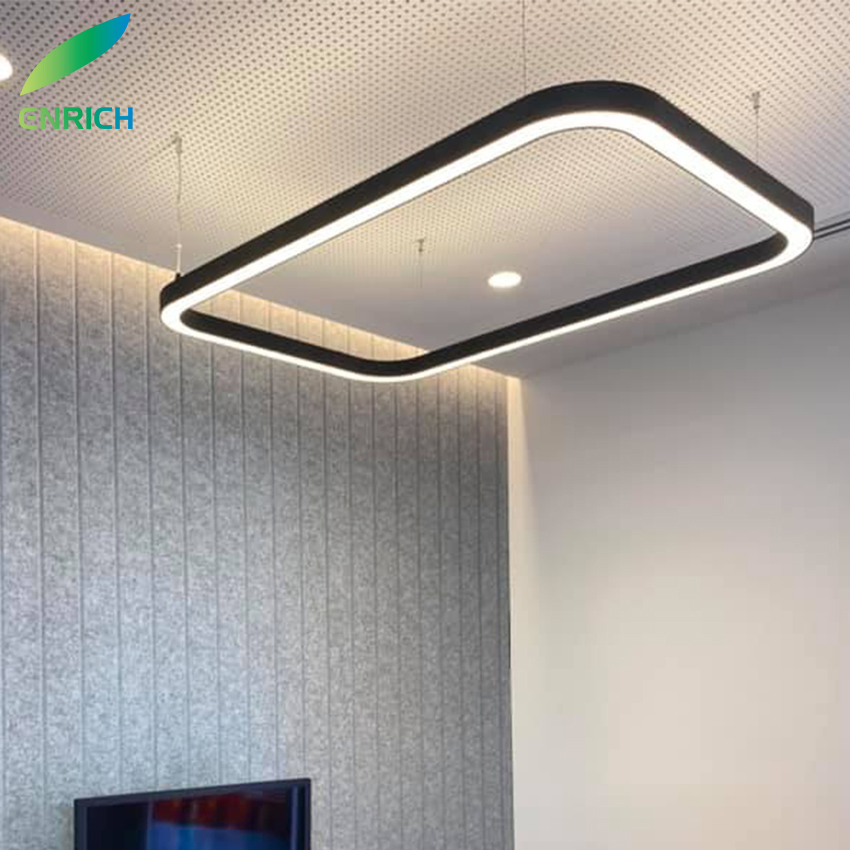

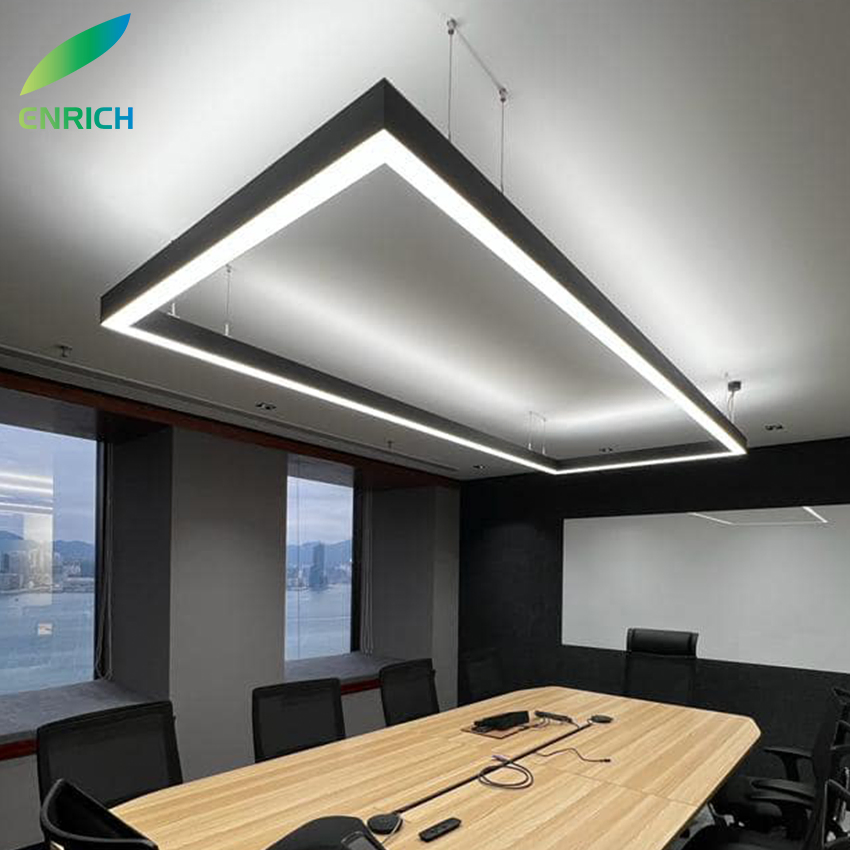

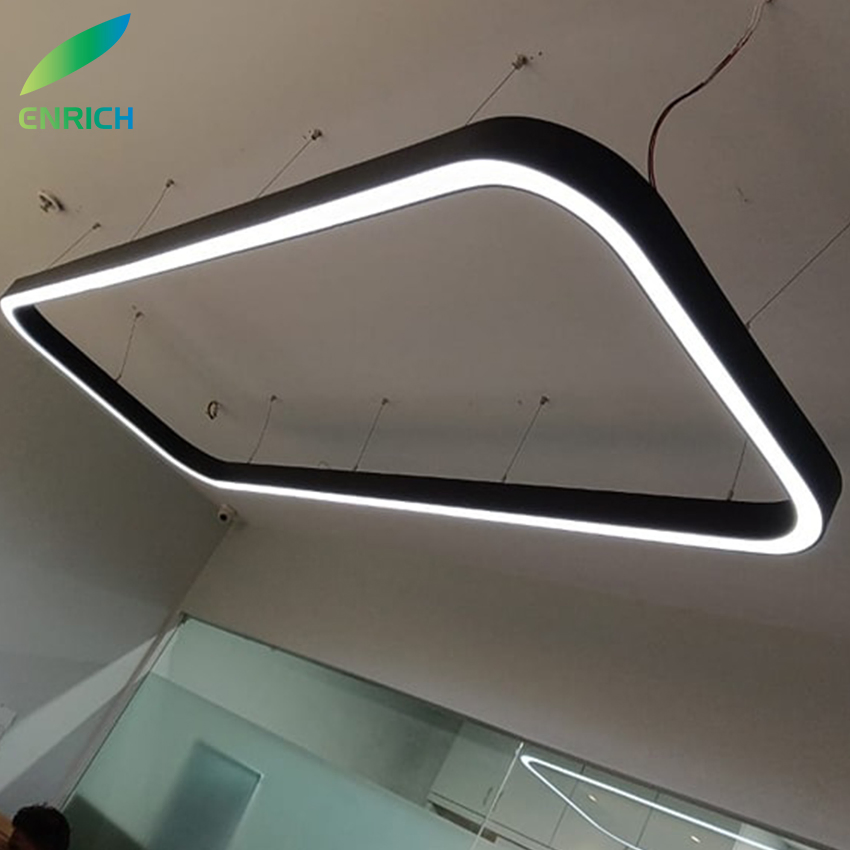

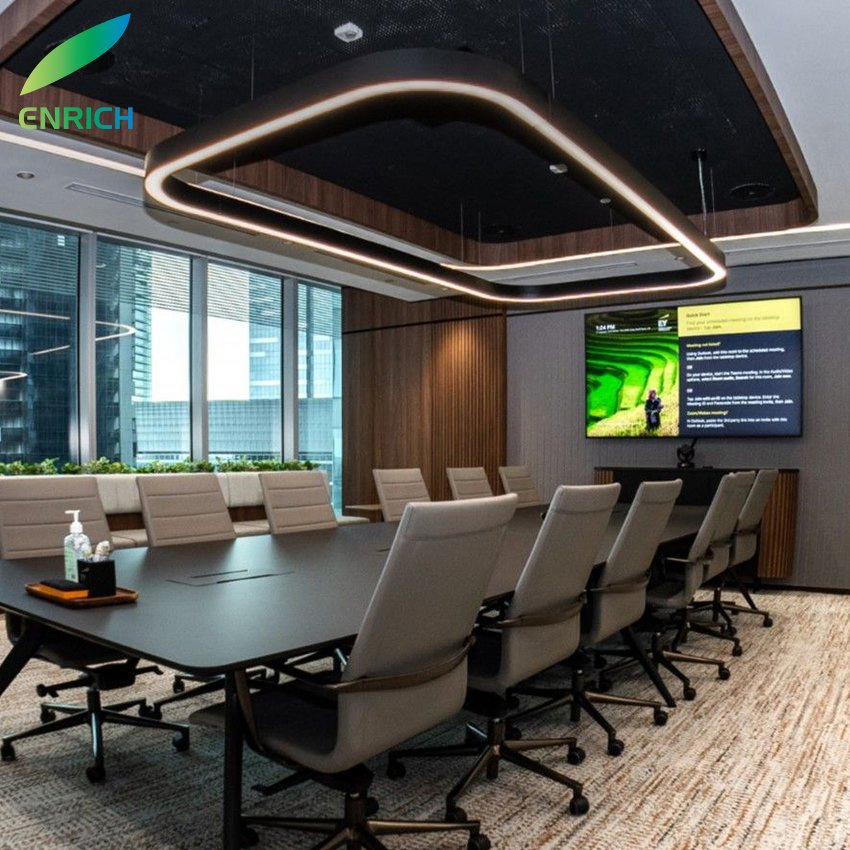

Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall
Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall
Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall
Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall
Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall
1 / 5
Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall
Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall
Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall
Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall
Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall

Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
LC6060-F600/1000
Style
European
Irradiated Area
≥30m²
IP Rating
IP33
Certification
CE, EMC, RoHS, SAA
Voltage
AC85-265V
Beaming Angle
120°
LED Chips
Epistar SMD 2835 - 504PCS
Wattage
20W/M
Luminous Efficiency
100lm/W
CRI
>80/90
Shell Color
Black, White, Silver, Customized
Specification
L1000*W600*W60*H60mm
Origin
China
Production Capacity
50000 Pieces/Year
Product Description

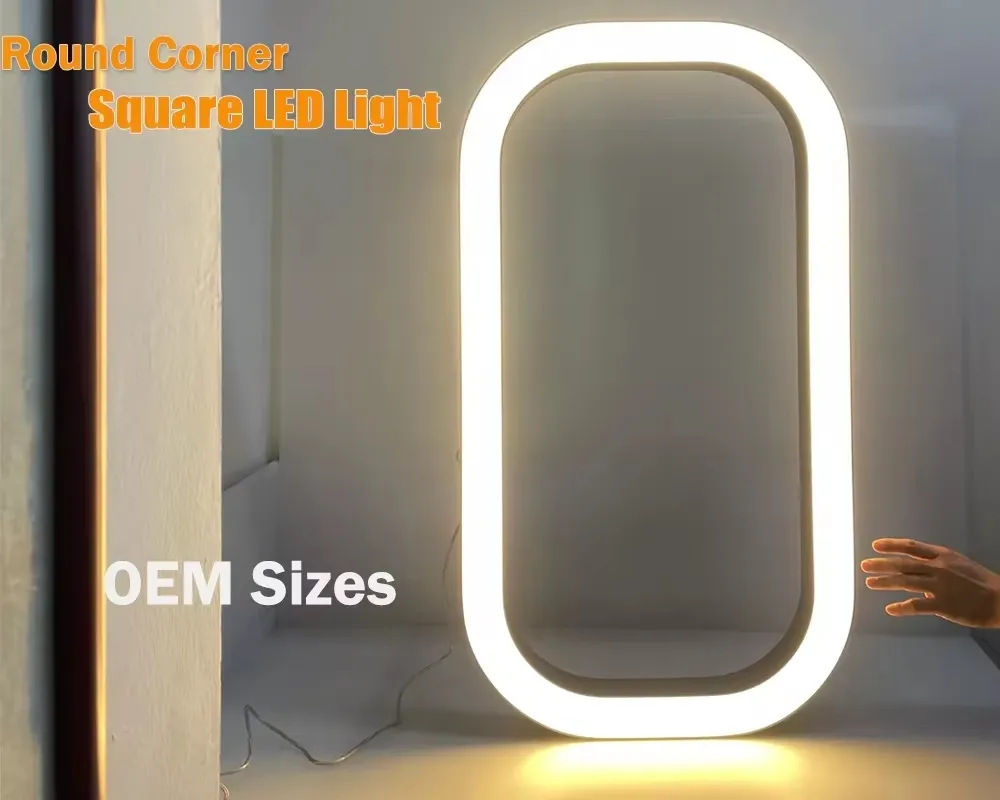

LED Linear Light
Key Features
◈ No dark area, lighting uniformly, excellent heat dissipation performance.
◈ High Efficacy: 100lm/w ±5%.
◈ Material: 1.5mm thick extrusion aluminum profile housing, frosted PC cover.
◈ High CRI: Ra>80 (standard), Ra>90 (available).
◈ Certified driver, flicker-free, build-in, power factor>0.9.
◈ Long Lifespan: LED PCB board, SMD2835, L80B10(Ta=25ºC)>50000hrs.
◈ Multiple Sizes: L900*W900mm, L1032*W1032, L1200*W1200, L3000*W600, L3000*W1200, and custom sizes.
◈ Mounting: Suspended, Ceiling surface, Rimless recessed mounting.
◈ Warranty: 5 years.

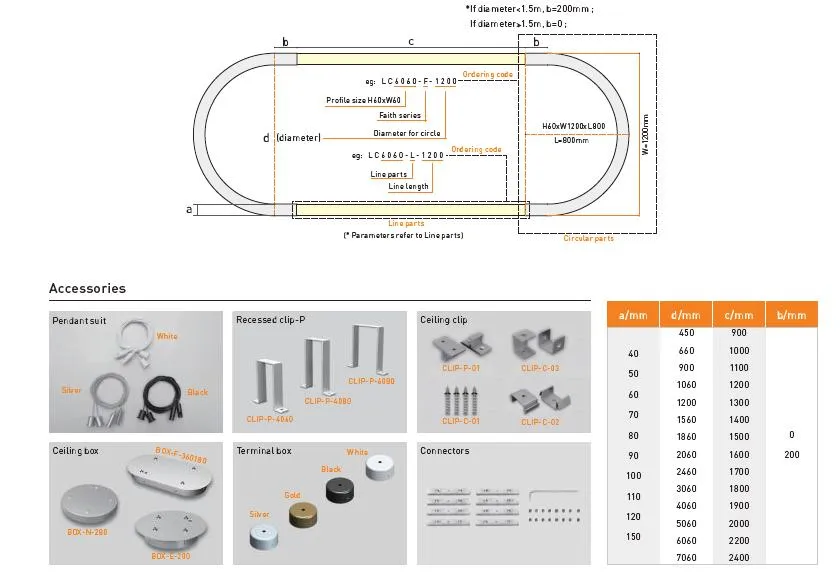

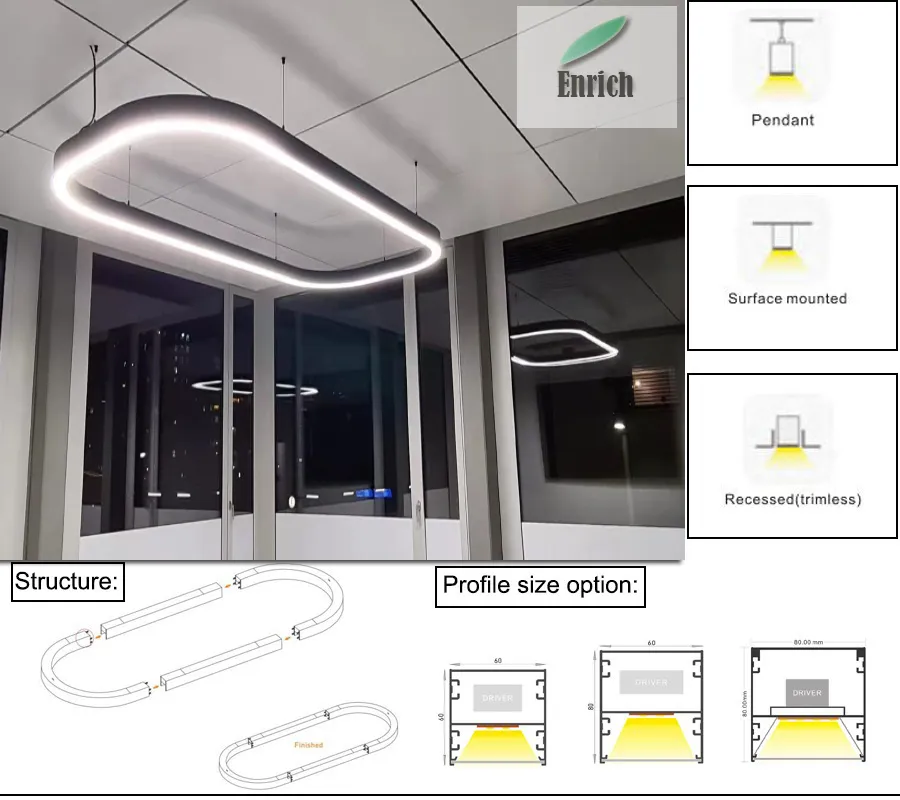

Specification Diagram
Model LC6060-B-900 LC6060-B-1032 LC6060-B-1200 LC6060-B-3000/600 LC6060-B-3000/1200
VoltageAC220-240VAC220-240VAC220-240VAC220-240VAC220-240V
Size (mm)L900*W900L1032*W1032L1200*W1200L3000*W600L3000*W1200
Power50W60W70W136W160W
Luminous100lm/w100lm/w100lm/w100lm/w100lm/w
Material6063-T5 aluminum + PC
CCT3000K/4000K/6000K/RGB/RGBW/RGB+CCT
Warranty5 Years

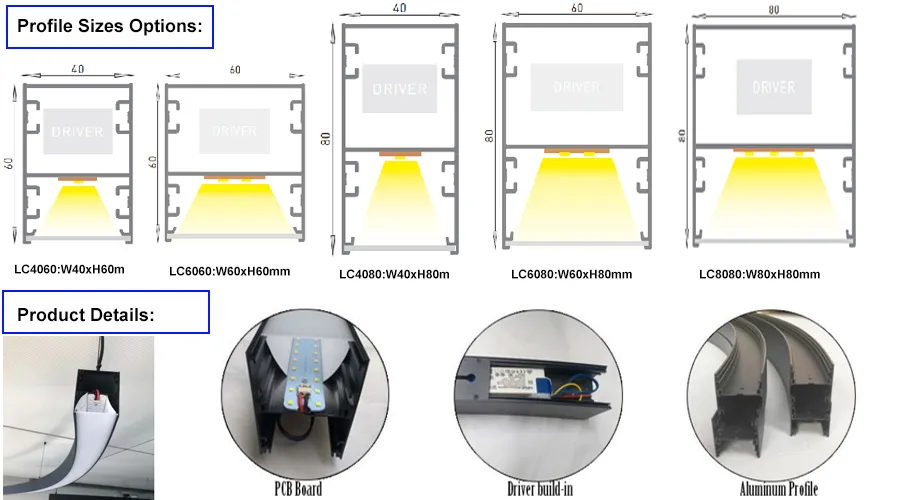

Application 1 Application 2

This product utilizes an extrusion aluminum profile body, high-quality PCB source, and professional LED Driver. It is the premier choice for modern office lighting environments.

Adjustable height2(m)Sun visor materialAcrylic resin
StyleModernAverage service life50000 (h)
Main ApplicationOffice, Office building, Family bedroomLight body materialAluminum
Packaging & Delivery
Packaging Box
Packaging Process
Package Size
120.00cm * 120.00cm * 25.00cm
Package Gross Weight
6.000kg
Wide Applications

Perfect for shopping malls, stores, offices, gyms, schools, hotels, residential spaces, and reception desks.

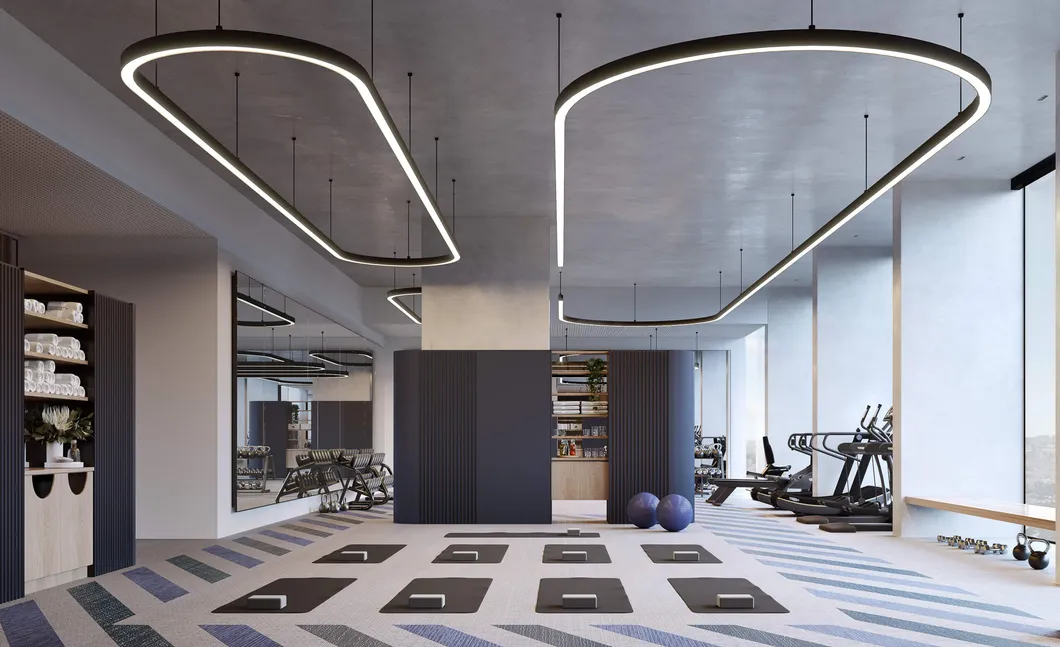

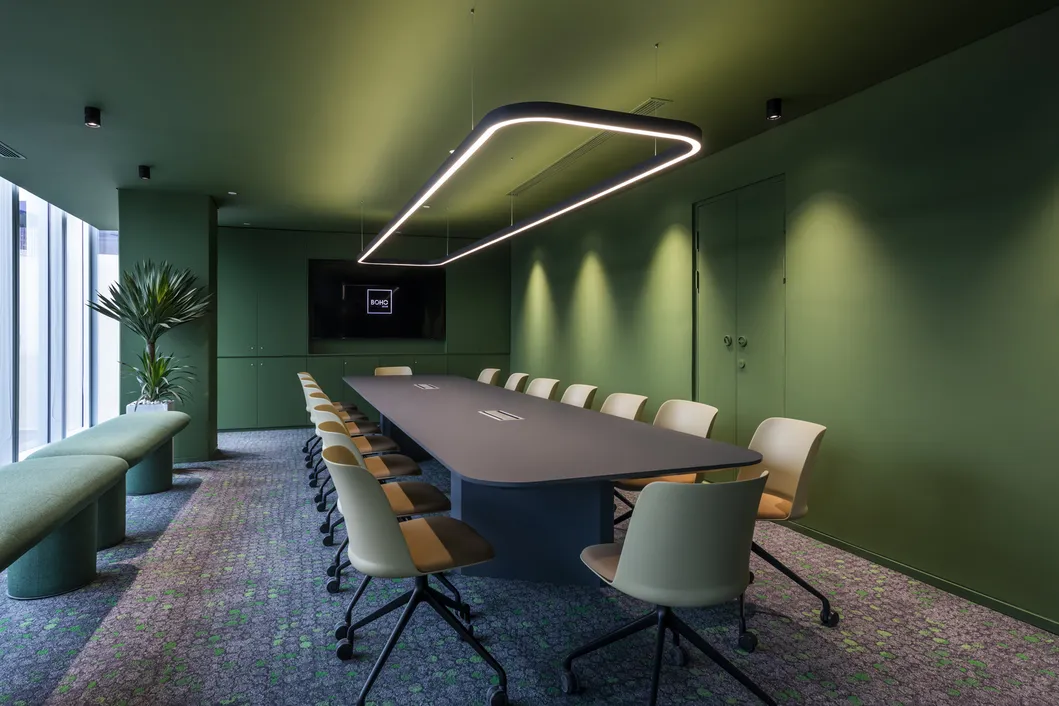

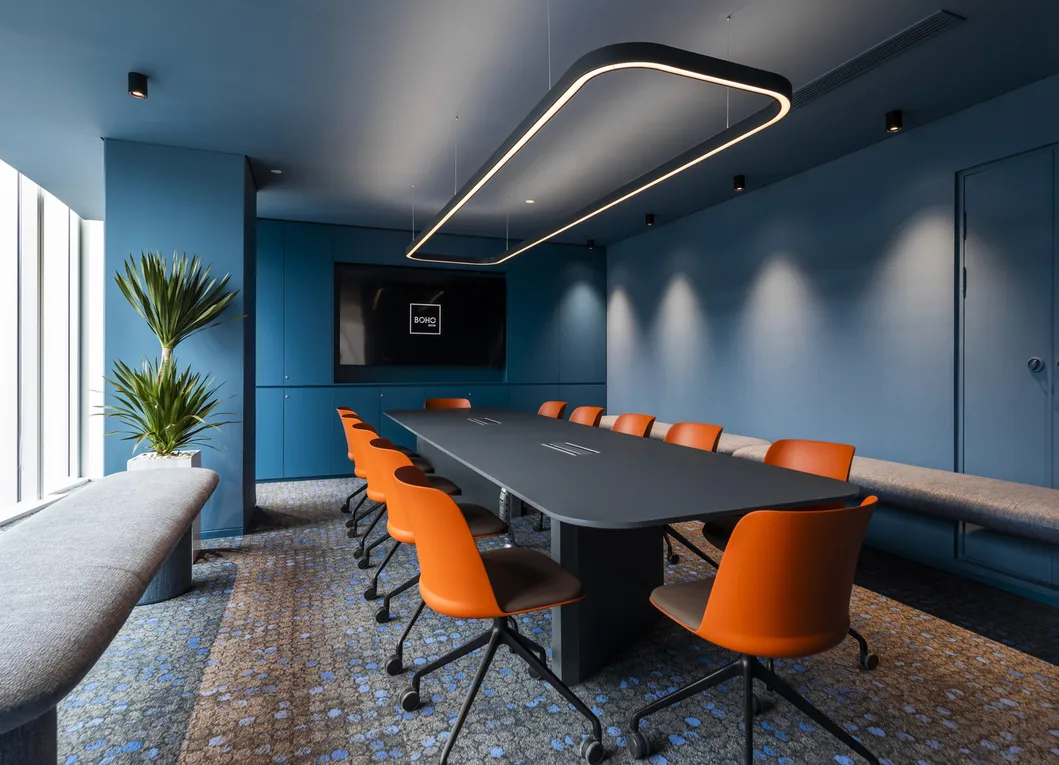

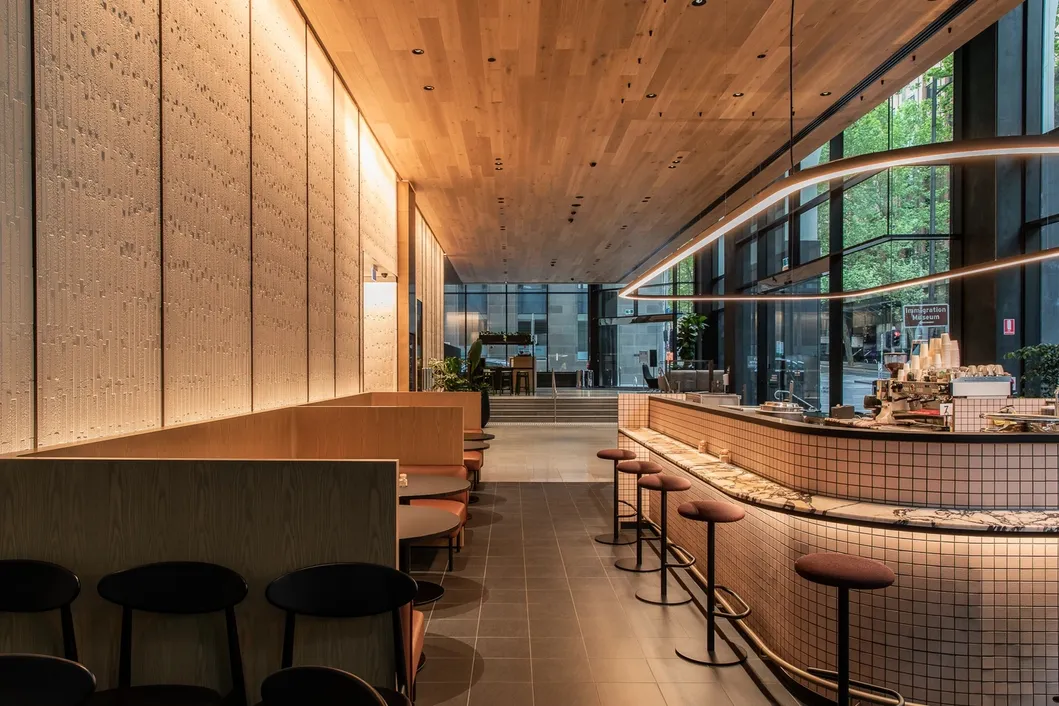

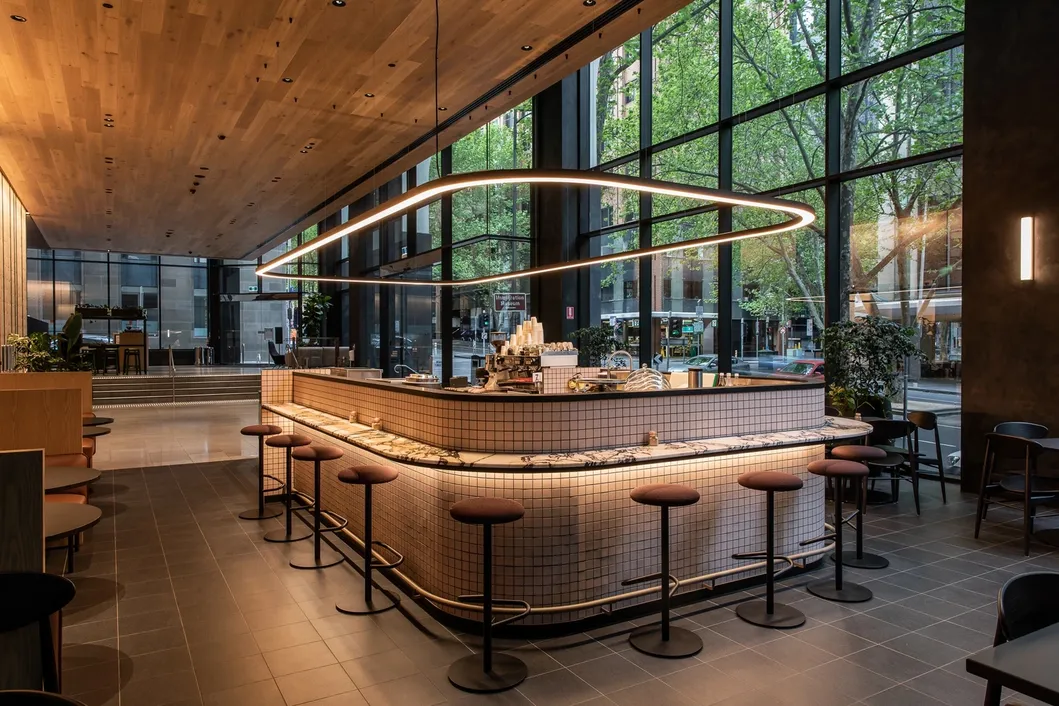

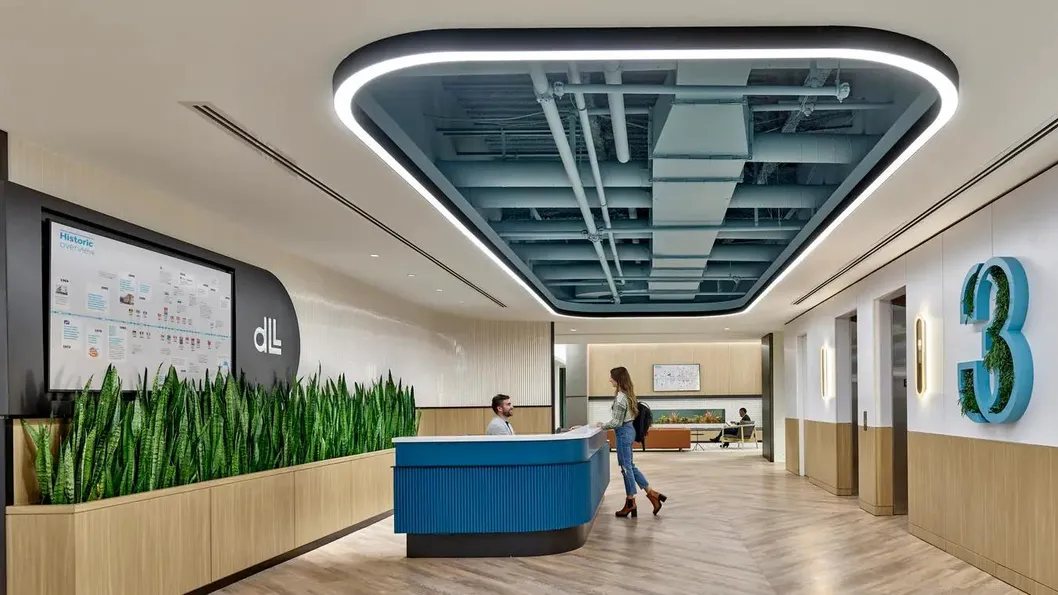

Gym Application Office Application Mall Application Reception Application Meeting Room Studio Application

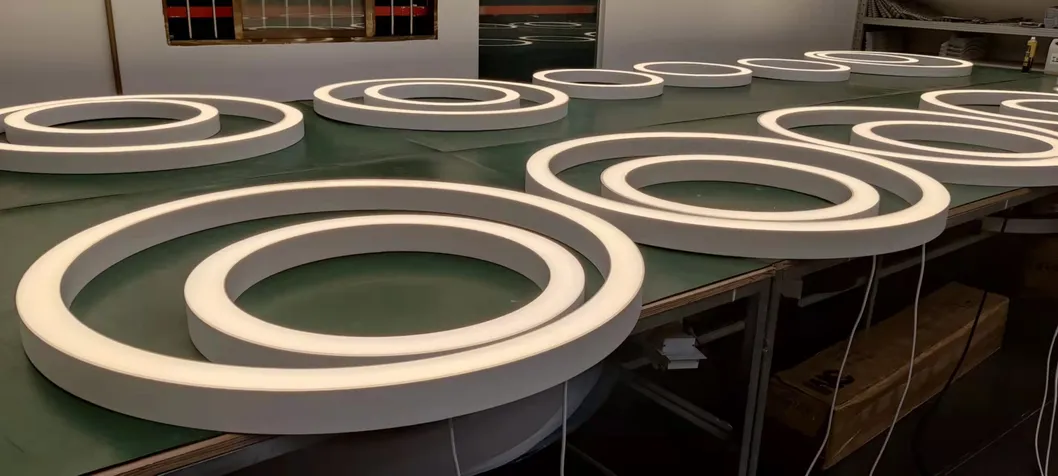

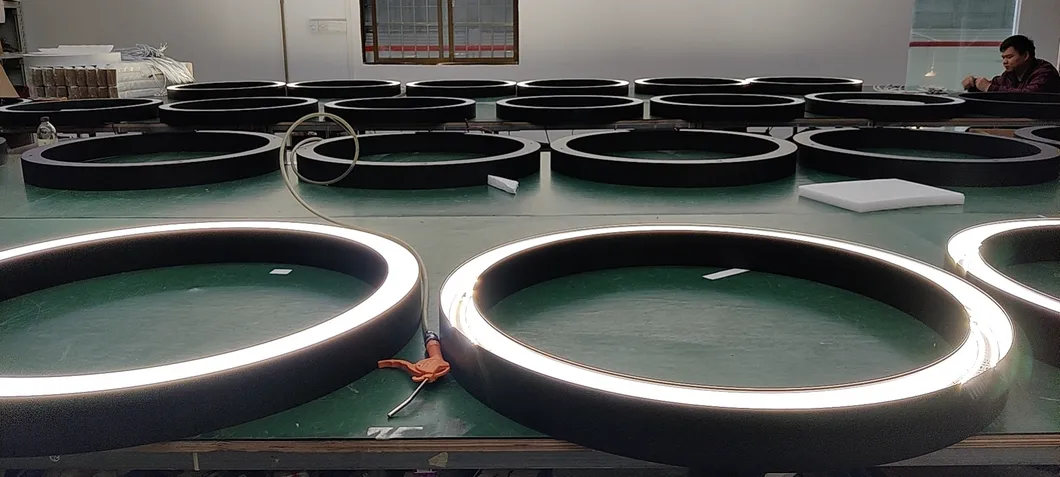

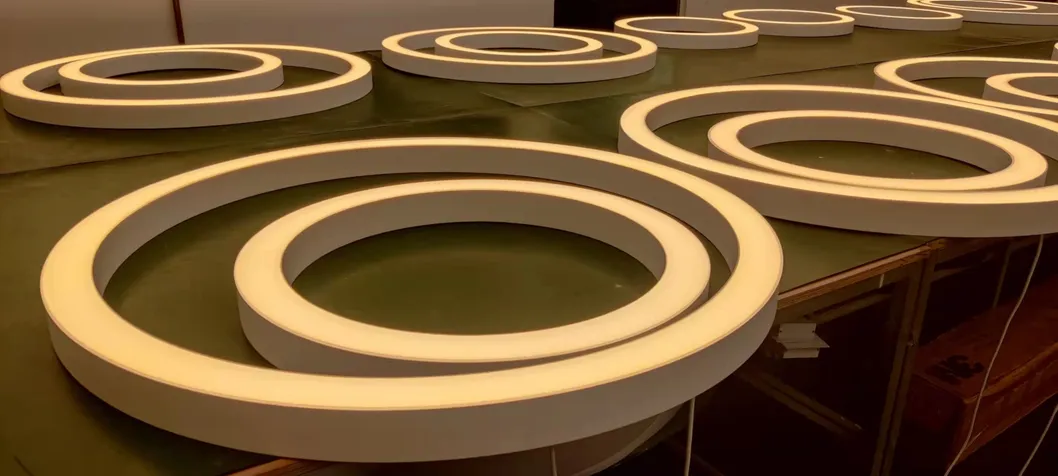

Production Line & OEM Design

We accept any shape and OEM design according to your inquiry. Custom drawings are welcome for project discussions.

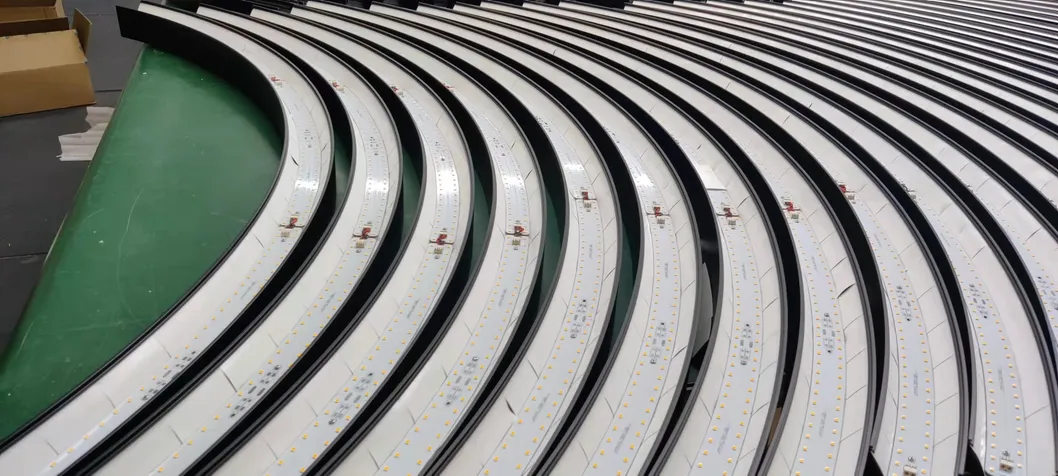

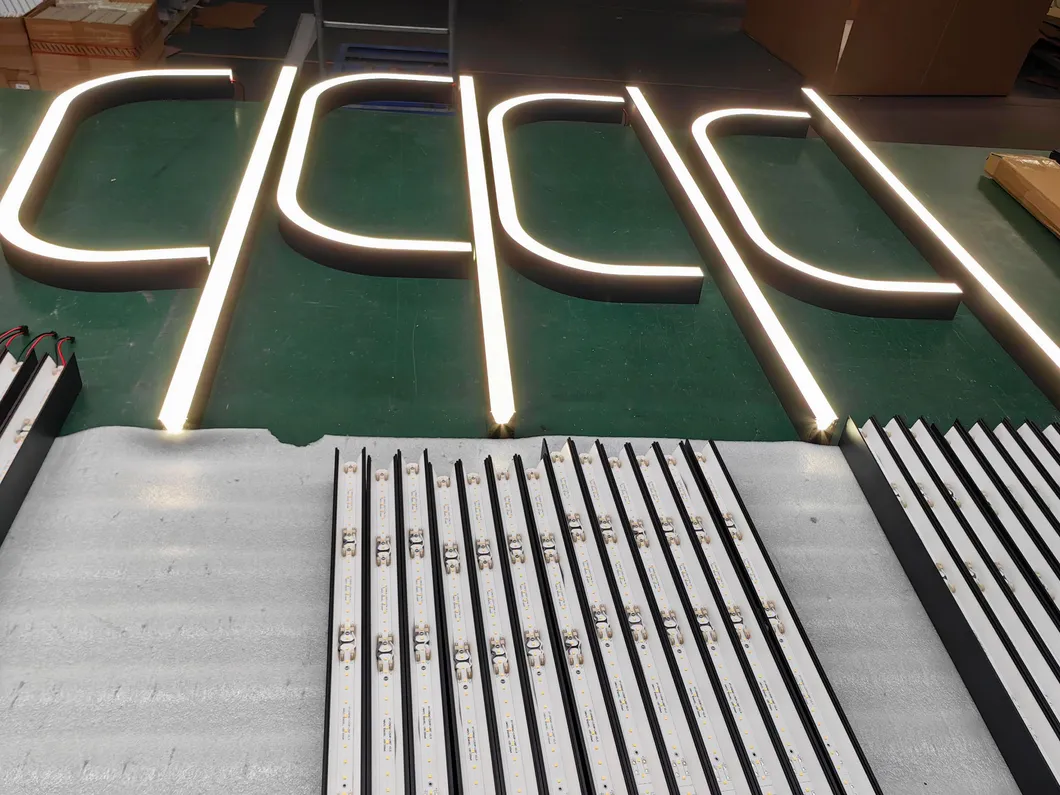

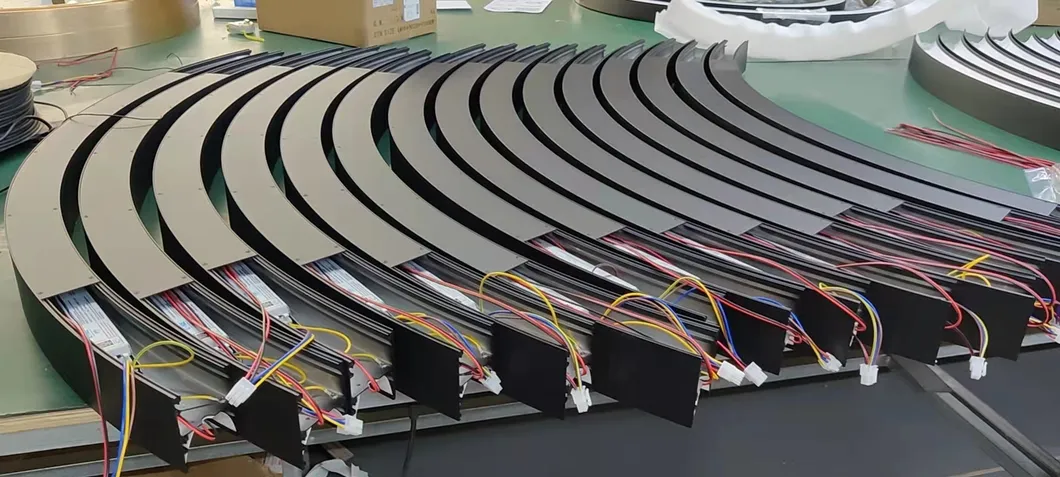

Production 1 Production 2 Production 3 Production 4 Production 5 Production 6
Showcase 1 Showcase 2 Showcase 3
Frequently Asked Questions
What is the warranty period for this LED linear light?
The product comes with a standard 5-year warranty.
Can I request a custom size or shape for my project?
Yes, we support OEM designs and can provide any size or shape according to your project requirements.
What are the available installation methods?
The lighting can be installed via suspended, ceiling surface, or rimless recessed mounting.
What is the expected lifespan of the LED chips?
The high-quality SMD2835 LEDs have a long lifespan exceeding 50,000 hours (L80B10 at 25ºC).
Is the light flicker-free?
Yes, the product includes a certified flicker-free built-in driver with a power factor greater than 0.9.
What shell colors are available?
Standard colors are White, Black, and Silver. Golden and other custom colors are optional for upgrades.
