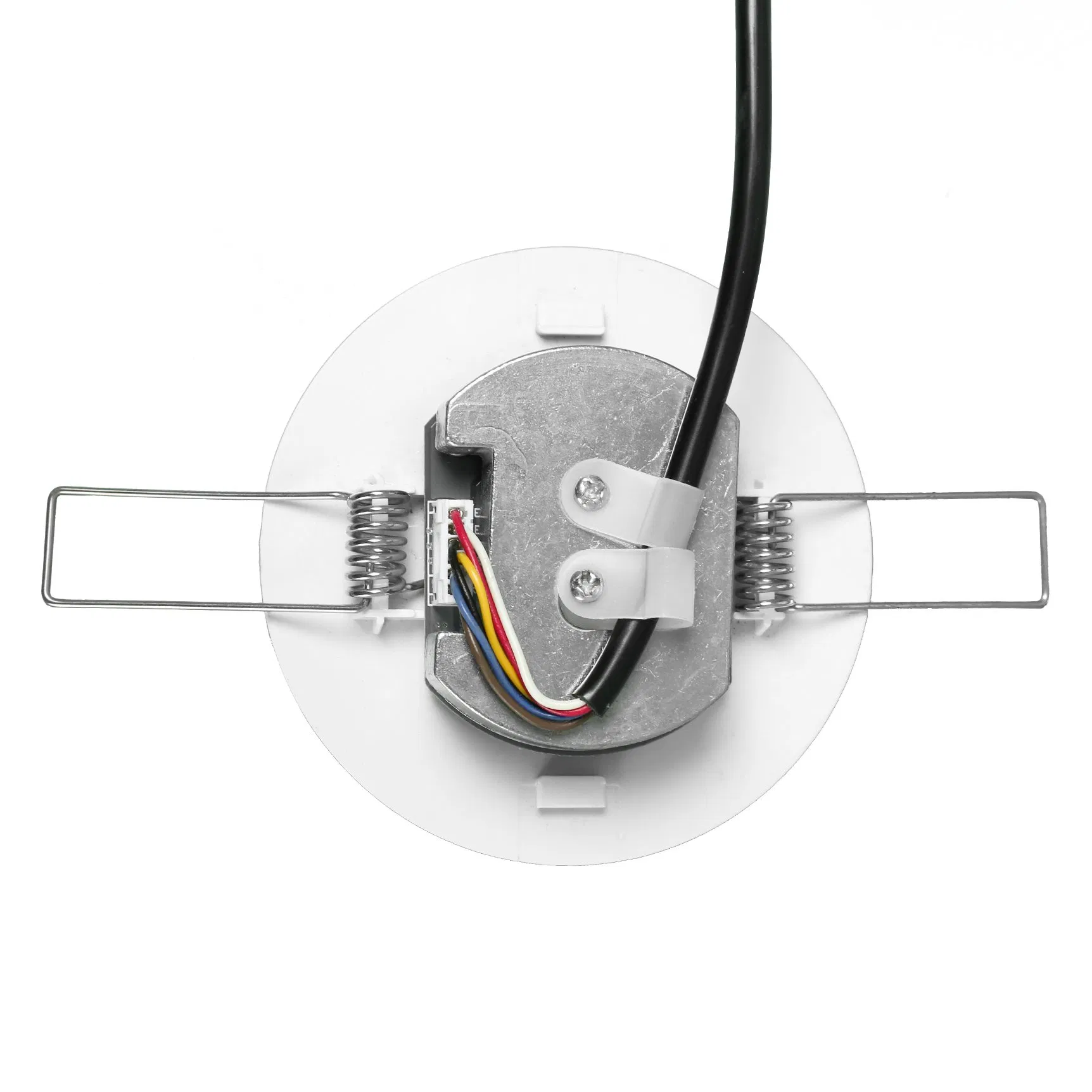

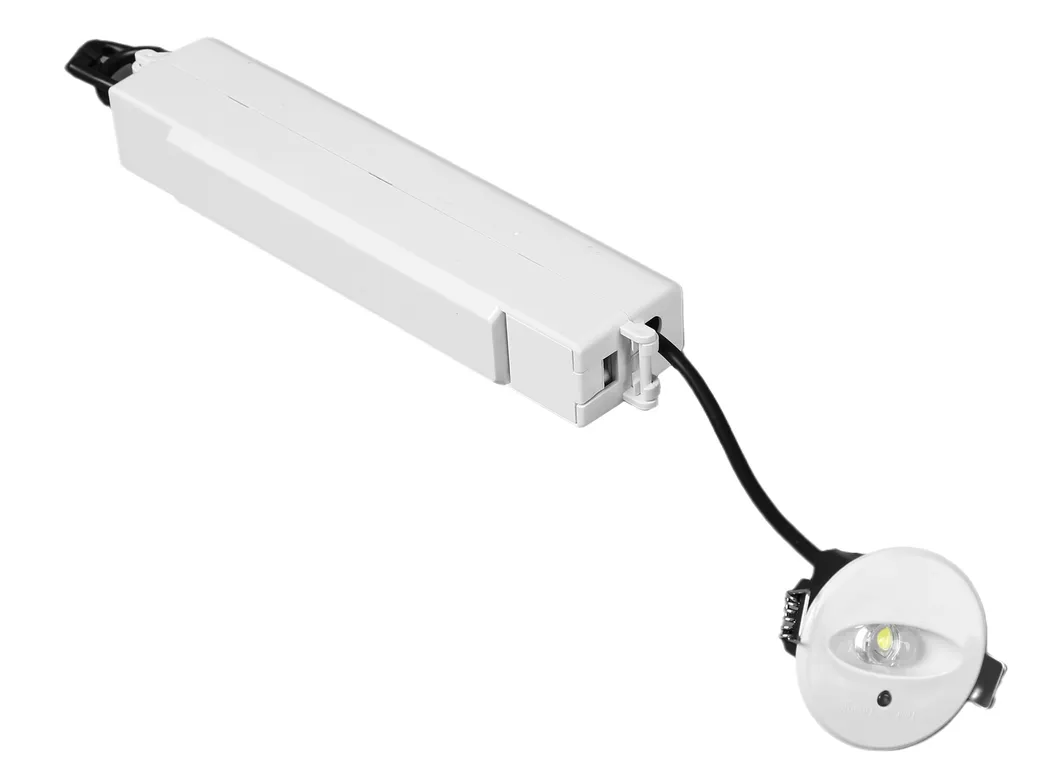

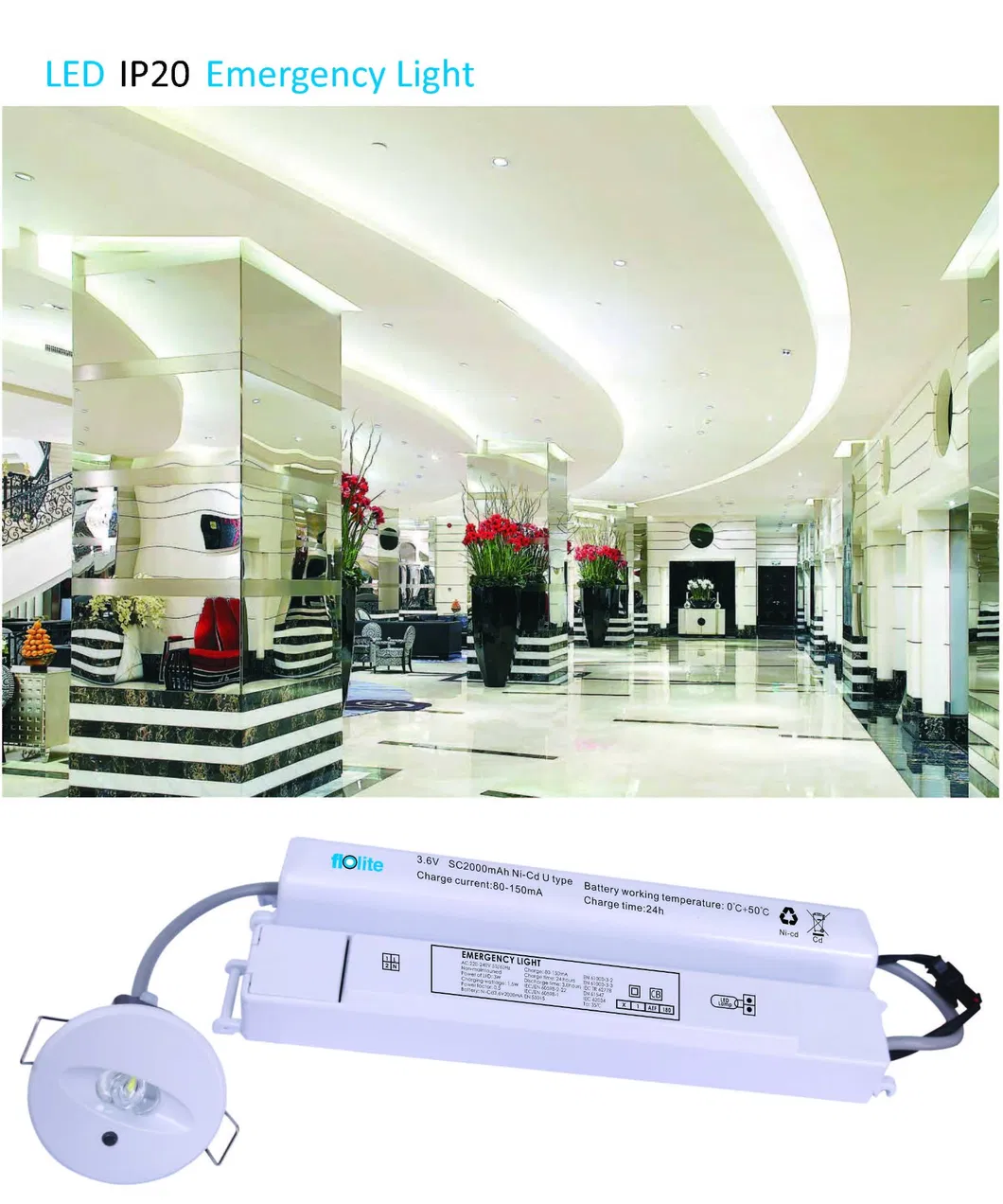

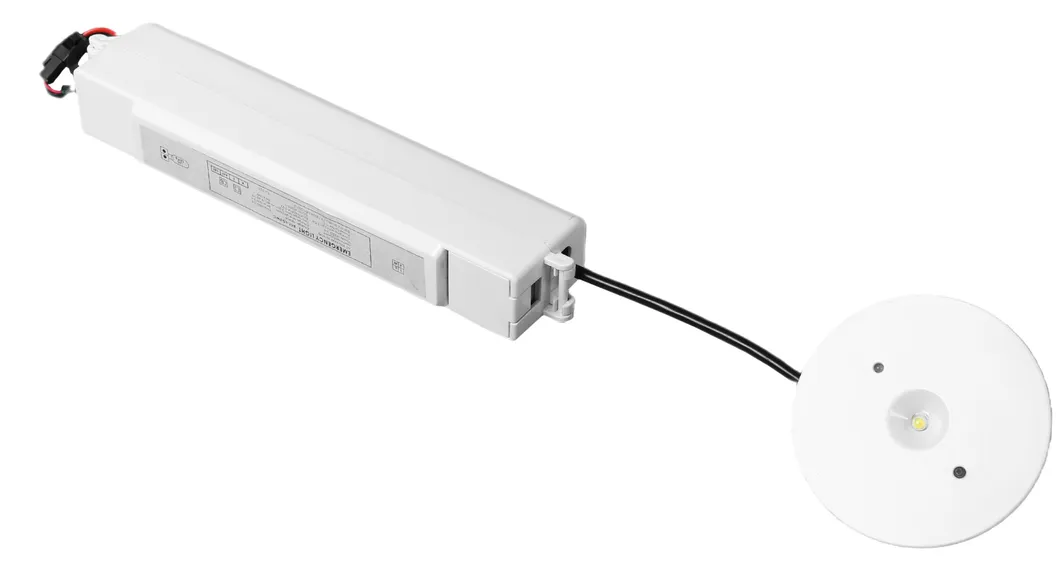

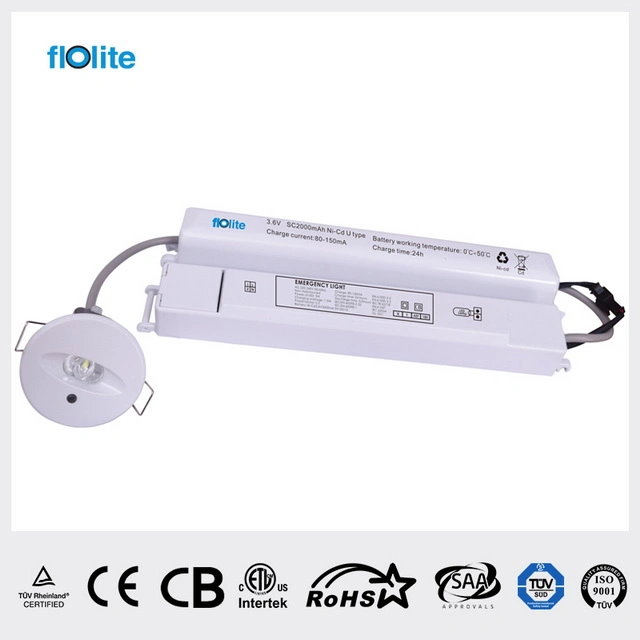

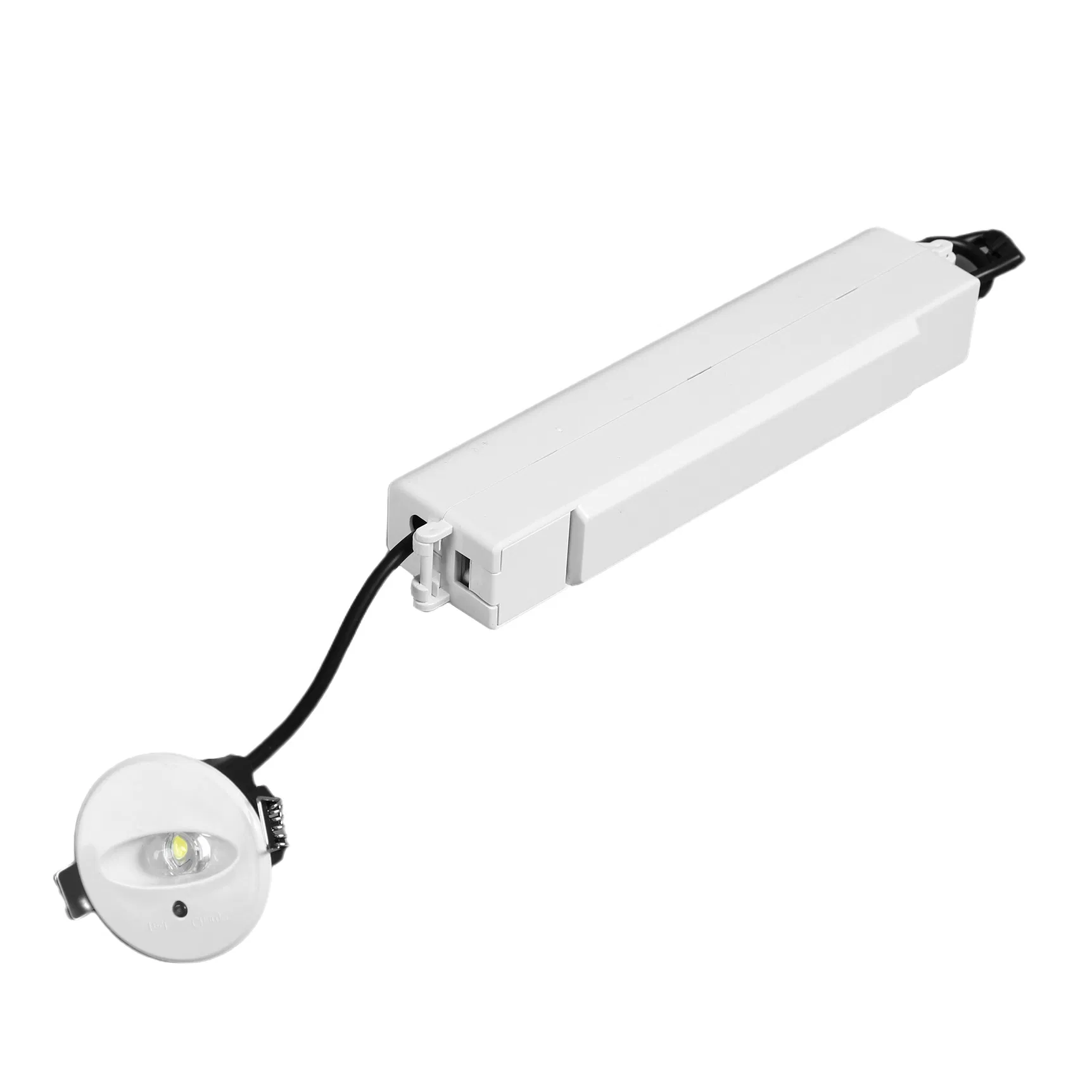

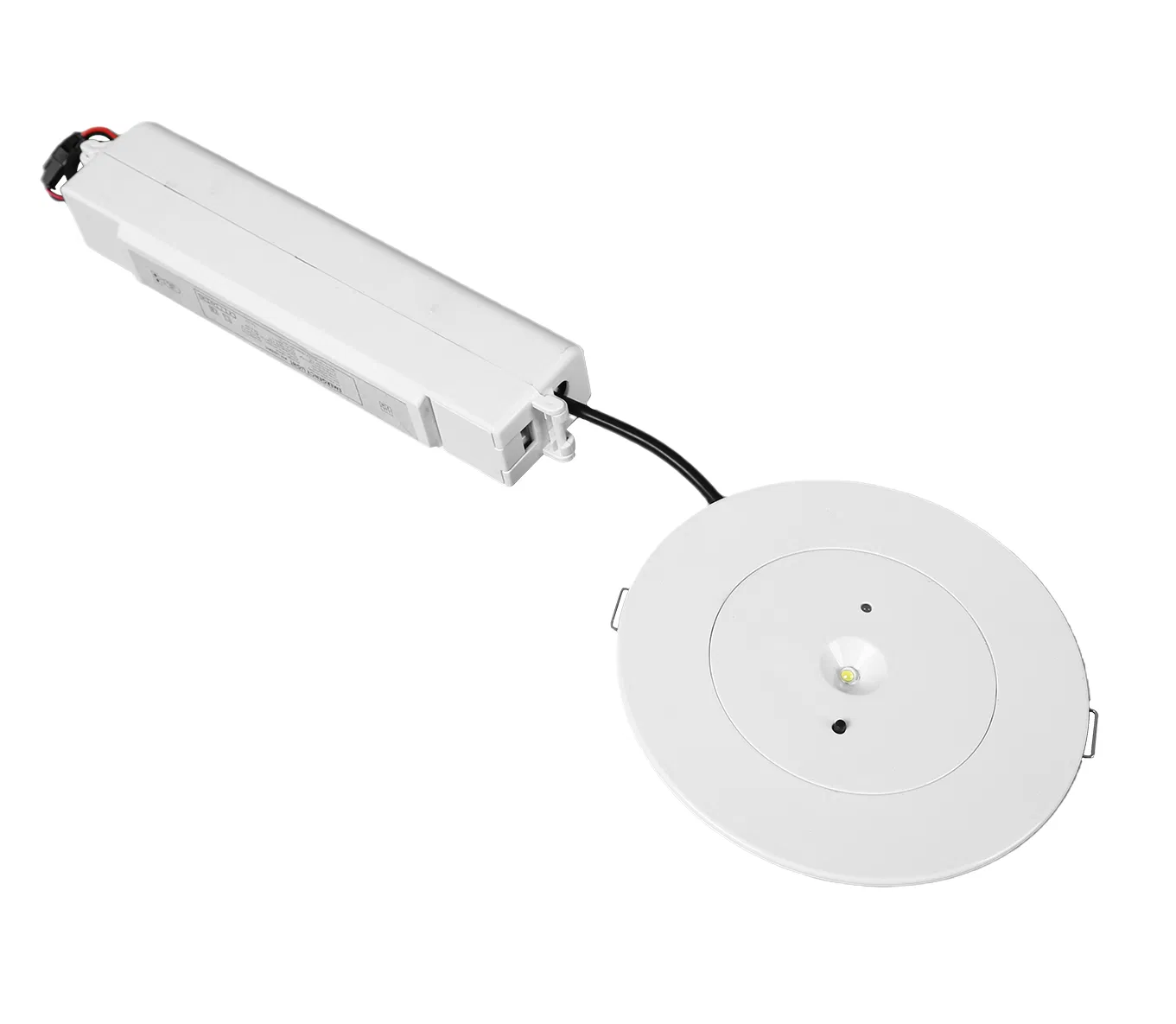

CB Approved 3W LED Emergency light with Ni-Cd batteries 3Hours Backup
| EN 60598-1 | EN 61000-3-2 | IEC 60598-1 | IEC61000-3-2 |
| EN 60598-2-22 | EN 61000-3-3 | IEC 60598-2-22 | IEC 61000-3-3 |
| EN 61347-1 | EN 62471 | IEC 61347-1 | IEC 62471 |

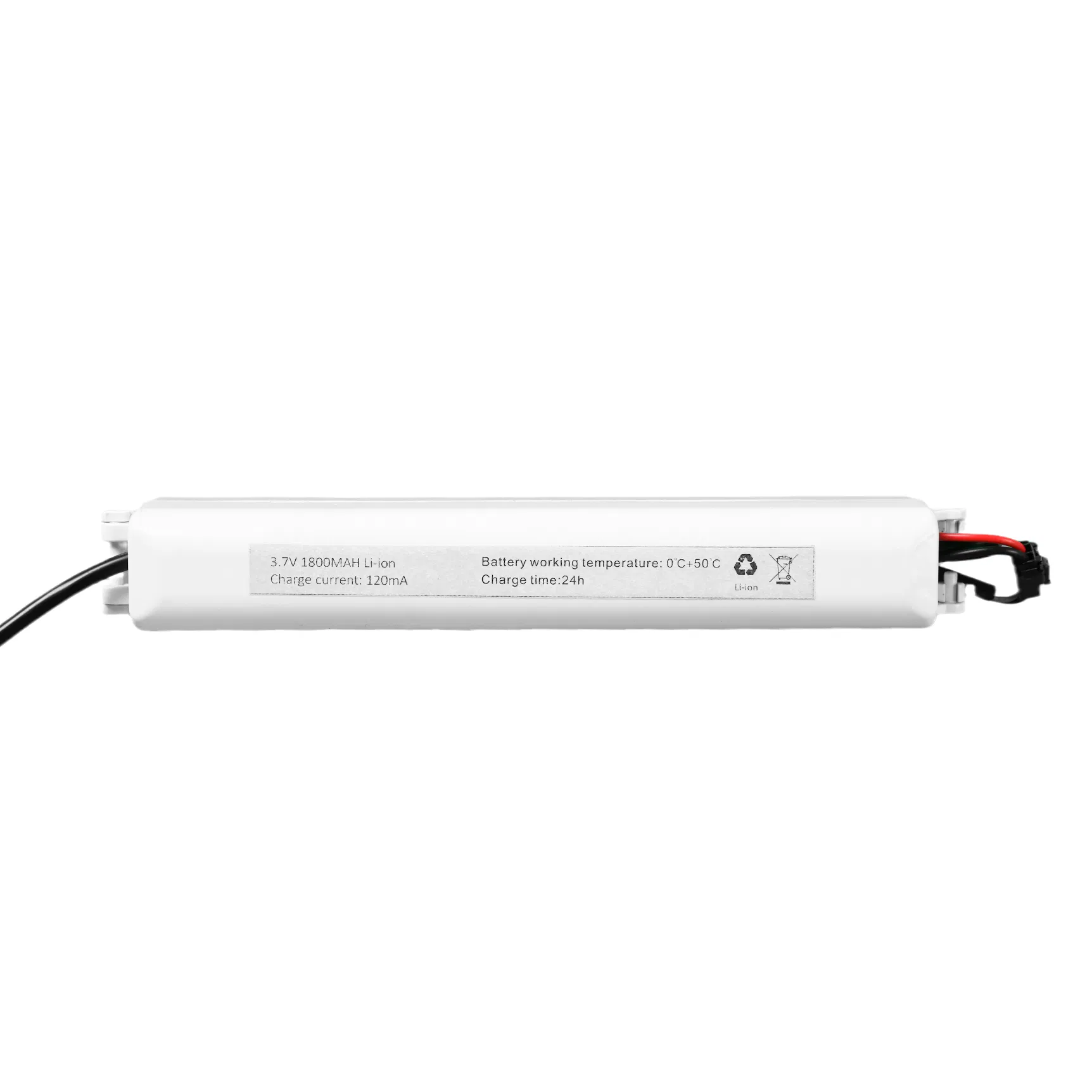

| Model No. | LEK02-3NC | Battery | Ni-Cd, 3.6V 2000mAh |
|---|---|---|---|
| LED Chips | CREE XT-E | Luminous Flux | 150lm |
| Power | 3W | Input Voltage | AC220-240V~50/60Hz |
| Charge Time | 24 Hours | Emergency Duration | 3 Hours |
| IP Rating | IP20 | Function | AUTO test |
∷ Commissioning test: Connection of the mains supply initiates commissioning. Battery remains on charge for an uninterrupted 24 hours. After 24h, the luminaire performs a duration test, followed by another 24h charge.
∷ Function test: A 5-second functional test is carried out at 1-week intervals.
∷ Duration test: A full rated duration test is carried out at 13-week intervals.
| LED Indication | Status | Commentary |
|---|---|---|
| Permanent green | Everything works correctly | Normal operation |
| One flash / 4s pause | Battery failure | Battery not connected |
| Two flashes / 4s pause | Battery failure | Short circuit or low voltage |
| Three flashes / 4s pause | Load failure | LED failure |
| Green and Red off | DC mode | Emergency mode operation |

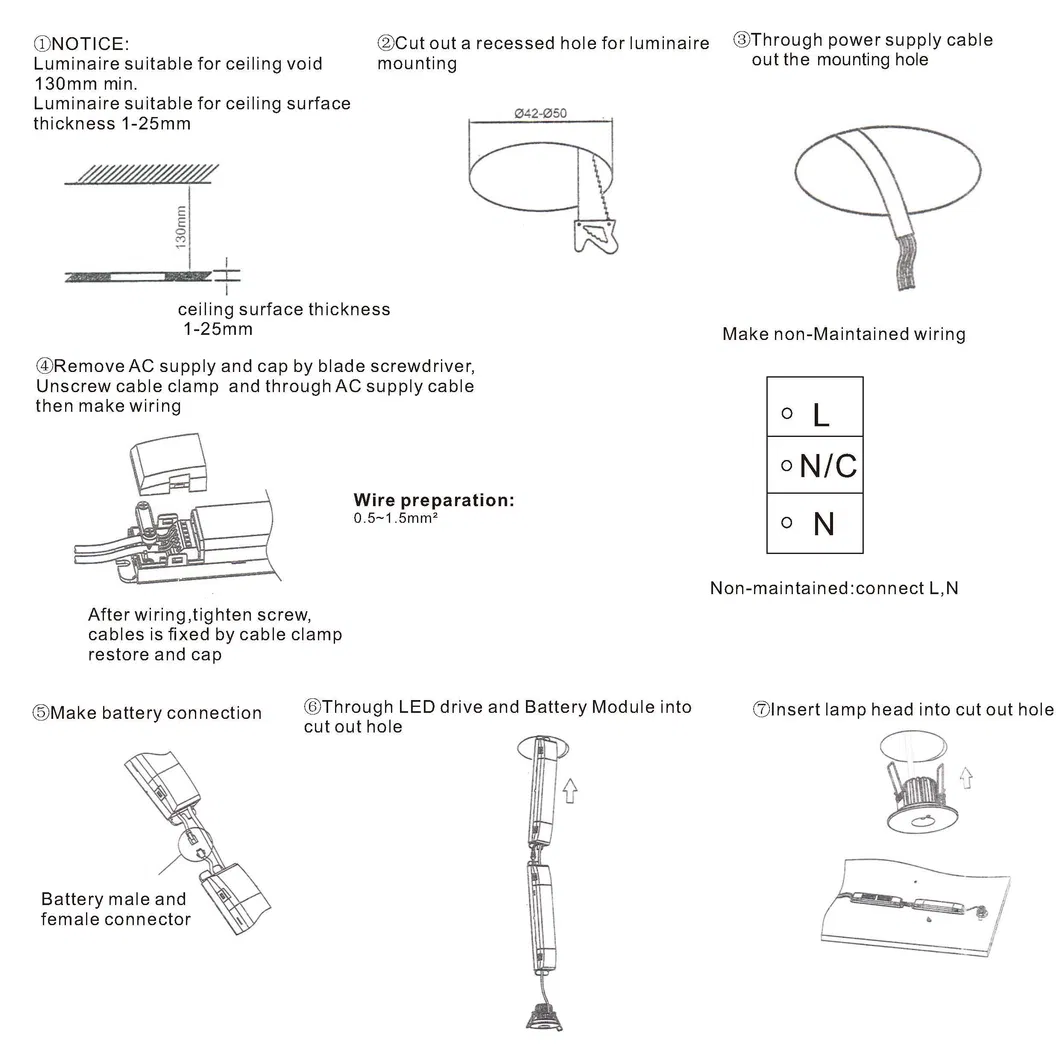

∷ Must be installed by a registered electrician according to local standards.
∷ Ensure mains supply is isolated before installation.
∷ Light source is not replaceable; replace whole luminaire at end of life.
∷ Replace luminaire if it no longer meets rated duration after full recharge.
