| Model NO. | VSU-MK1208 |
| Function | APP Control, Energy Monitoring, Remote Control, Scene Modes, Security, Smart Linkage, Timer, Voice Control |
| Material | Plastic |
| Application | Stage, Home Lighting |
| Certification | CE |
| Specification | Max 20A (resistive load) |

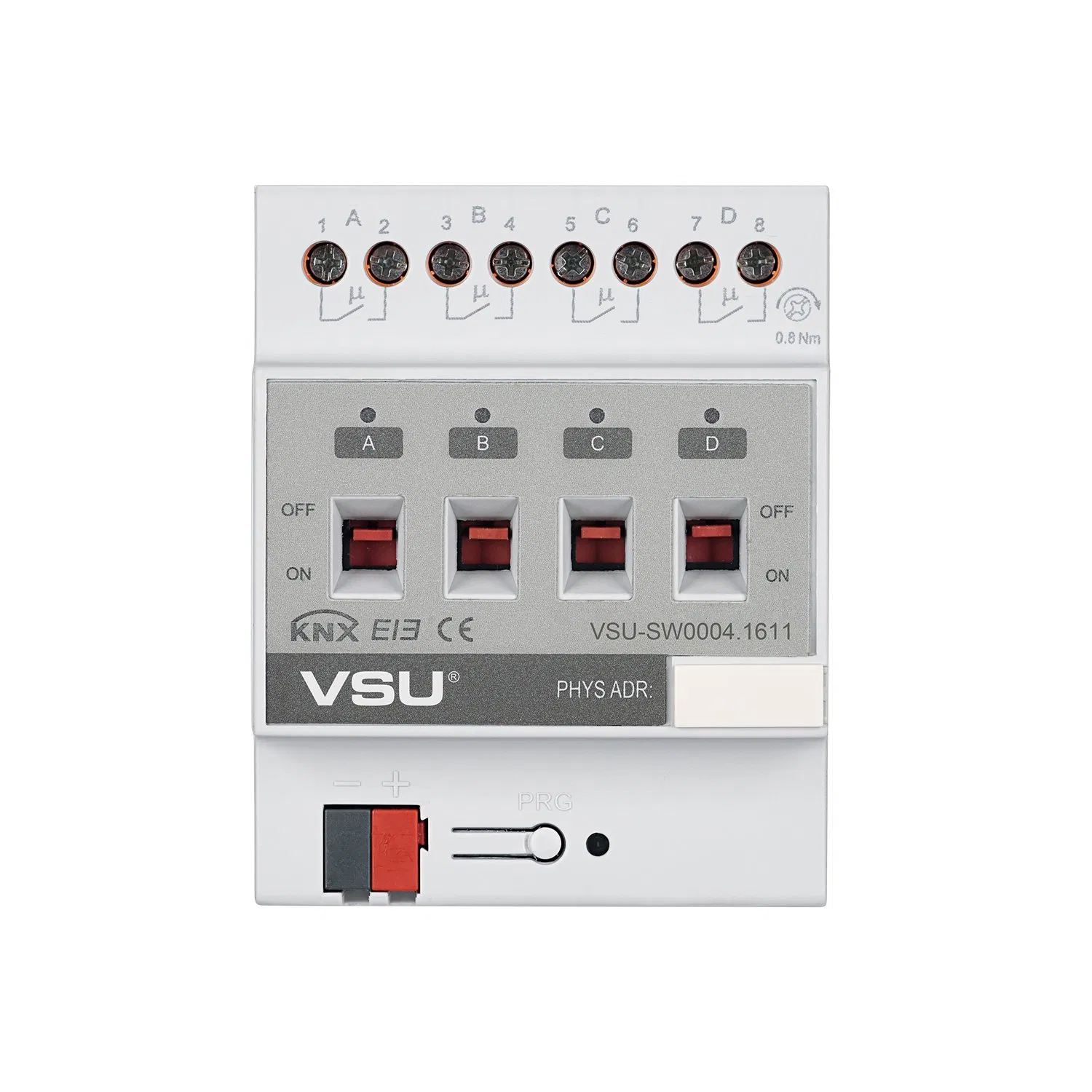

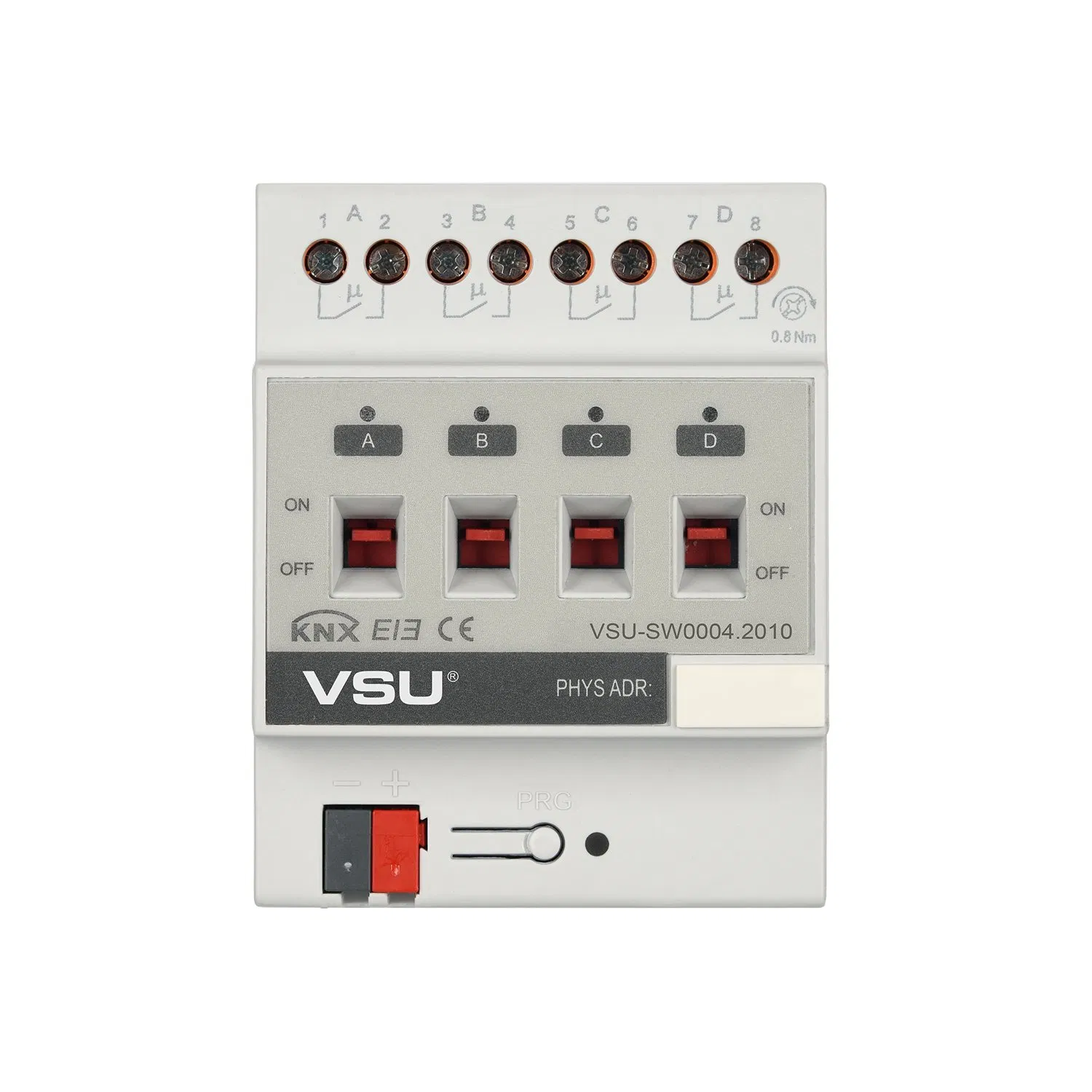

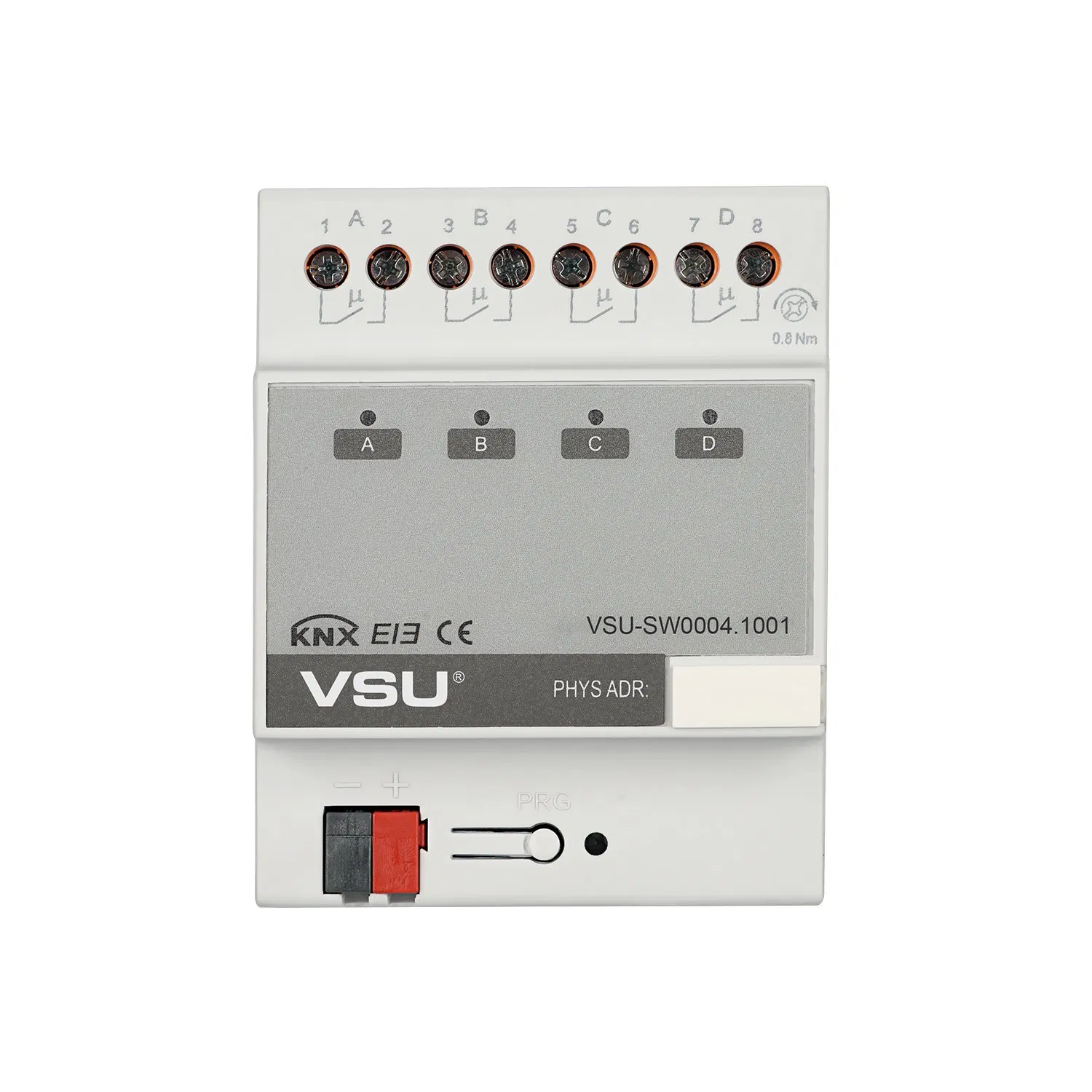

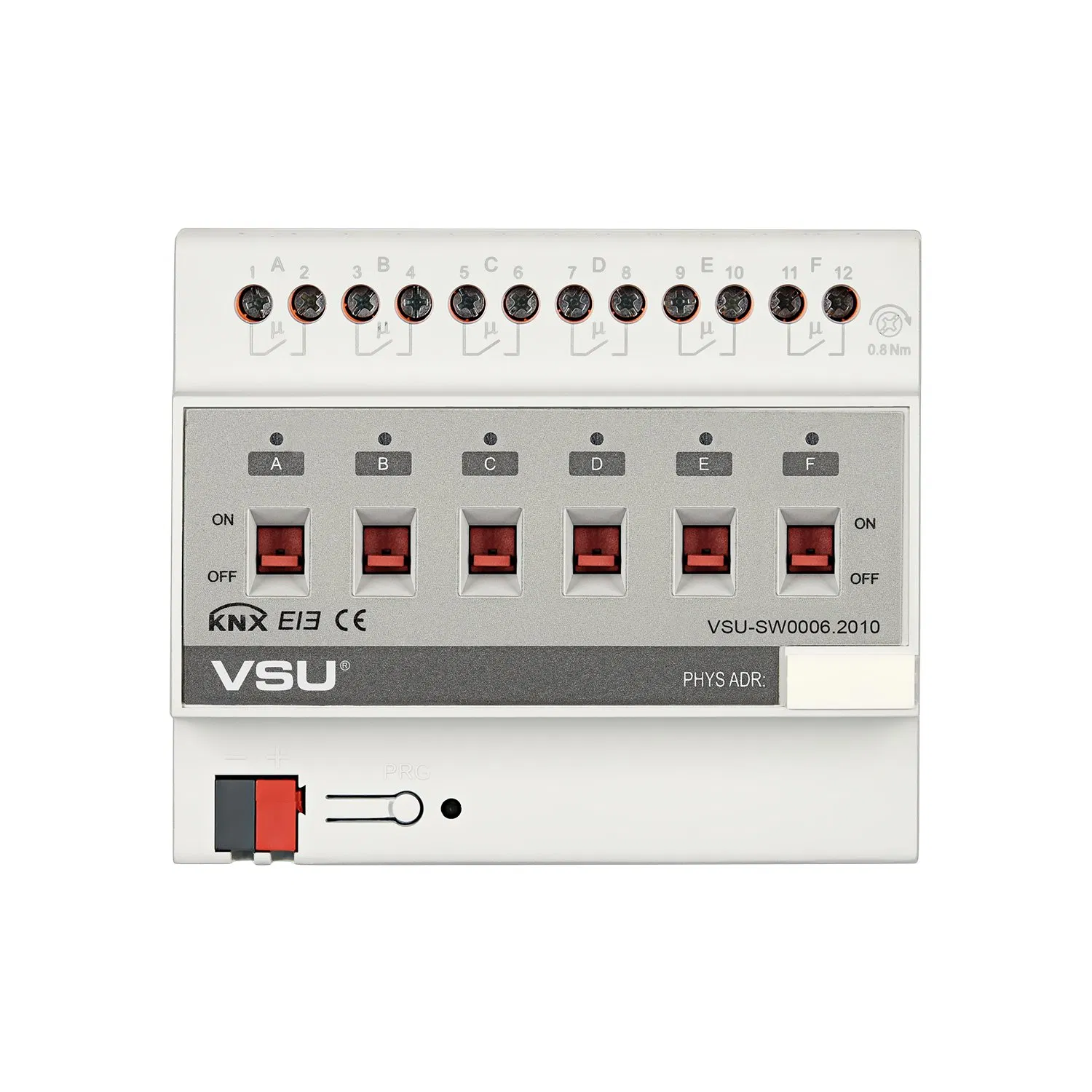

The 20A series switch execution module is a modular installation device with 4, 6, 8, and 12 outputs. It connects to the EIB/KNX system through the EIB bus terminal block. Physical addresses and parameters are allocated using the ETS software (version ETS4.0 or above).
The maximum load current output of each module is 20A, including intelligent relays. Each circuit can independently control 3300W lamps (resistive load). For inductive and capacitive loads, it is advisable to use 1/5 or 1/6 of the maximum current due to instantaneous surge currents.
Relays are equipped with manual strong switching dials and magnetic holding functions. Communication distance for dry contact (I/O) wiring is less than 10m.
| Bus Voltage | 21-30 VDC, Obtained through KNX bus |
| Static Current | ≤12mA |
| Static Power | ≤360mW |
| Primary Output | 4/8/12 circuit, 250VAC (50/60Hz), Max 20A |
| Shell Material | PA66 |
| Installation | DIN rail installation |
| Operation Temp | -5℃ ... +45℃ |
| Relative Humidity | Max 90% |

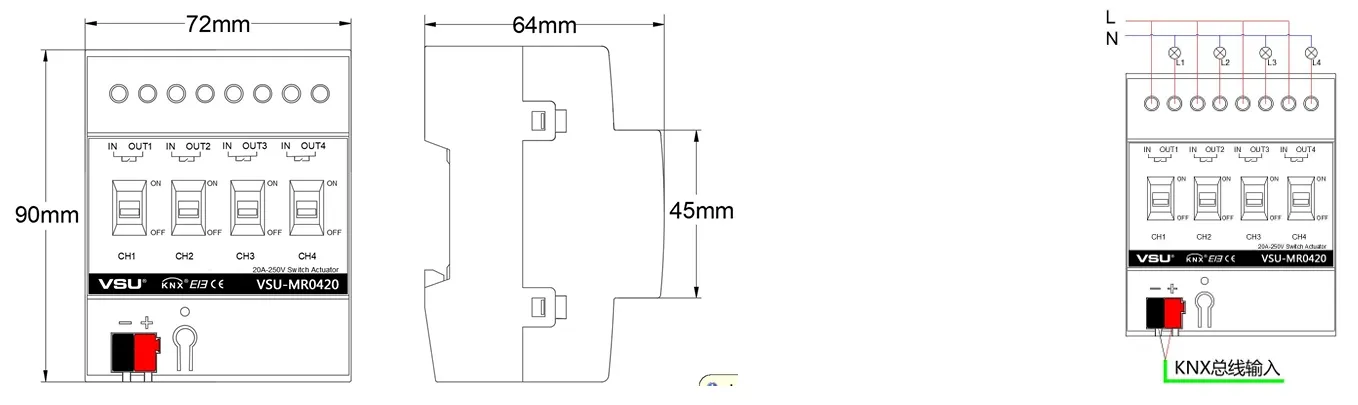

VSU-MR0420

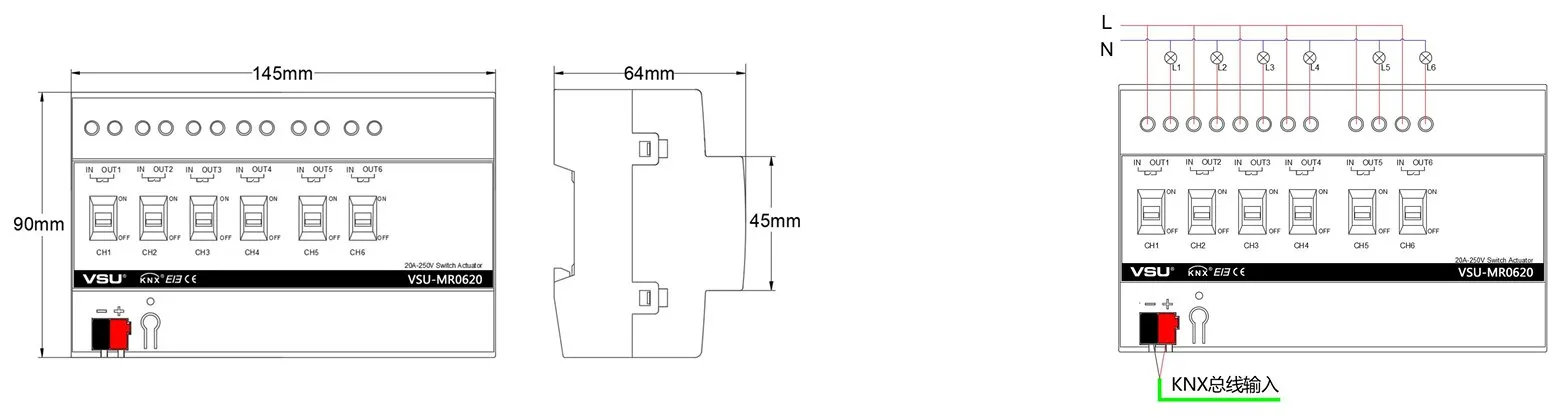

VSU-MR0620

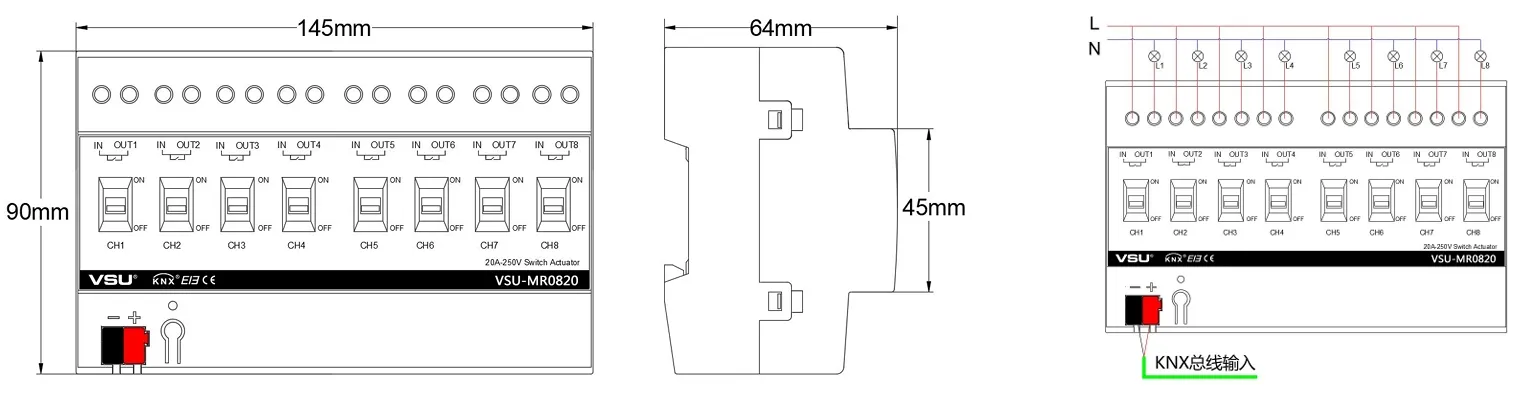

VSU-MR0820

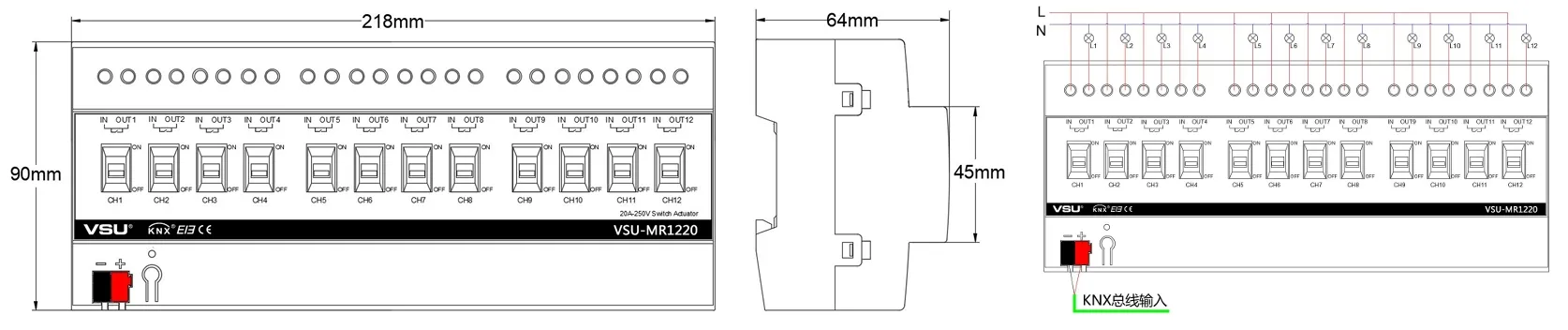

VSU-MR1220
