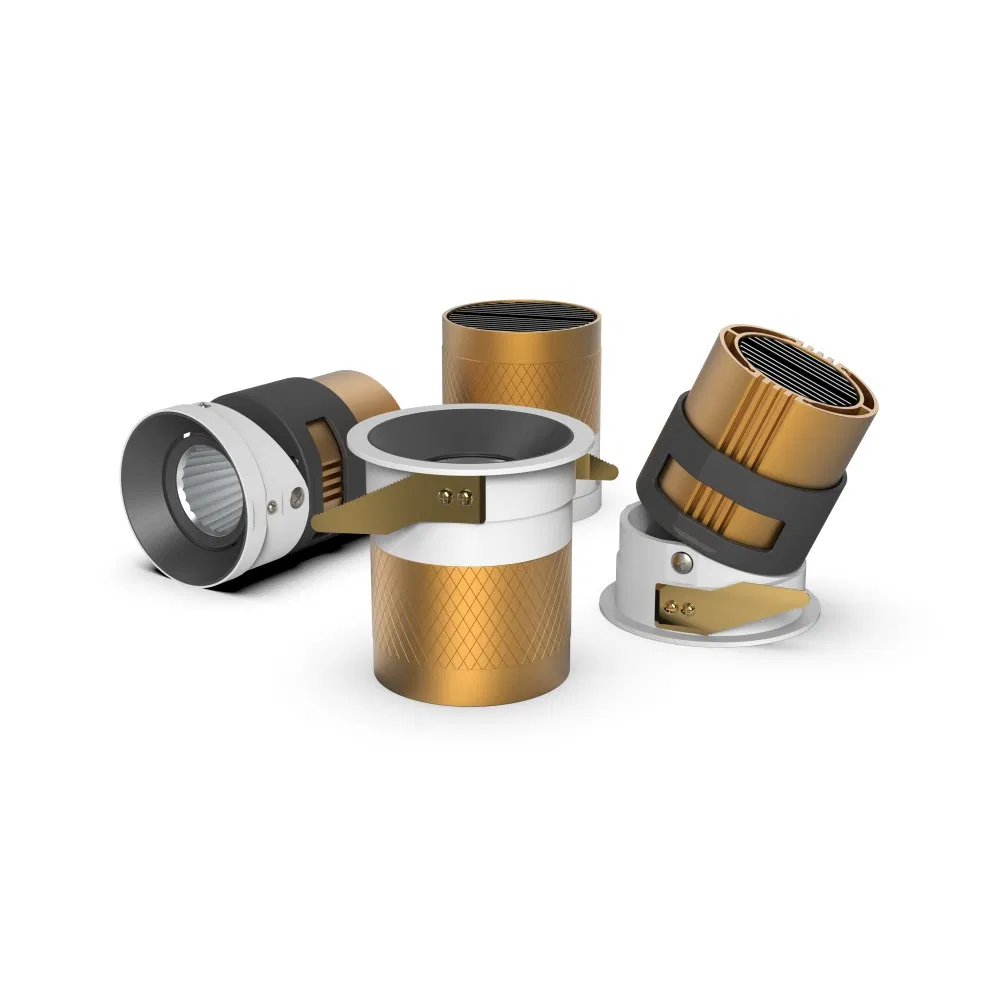

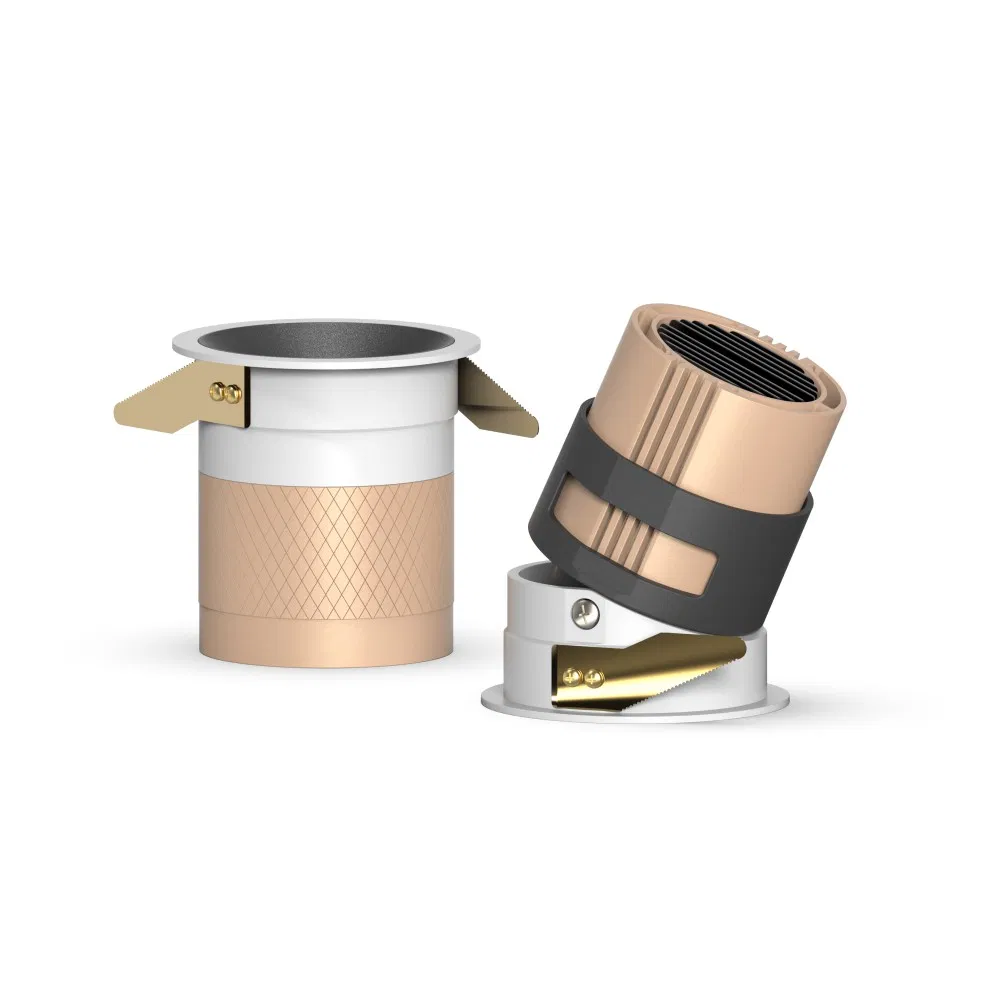

This series features professional Recessed Mounted Trim/Trimless LED Downlights designed for commercial architectural applications. With high efficiency and anti-glare properties, it offers superior lighting quality.
| Technical Specifications | |
|---|---|
| Input Voltage | AC110V, AC220V, DC24V, DC48V |
| Lighting Efficiency | 140lm/W |
| Working Temperature | -25ºC to 45ºC |
| IP Rating | IP20 (IP65 customized) |

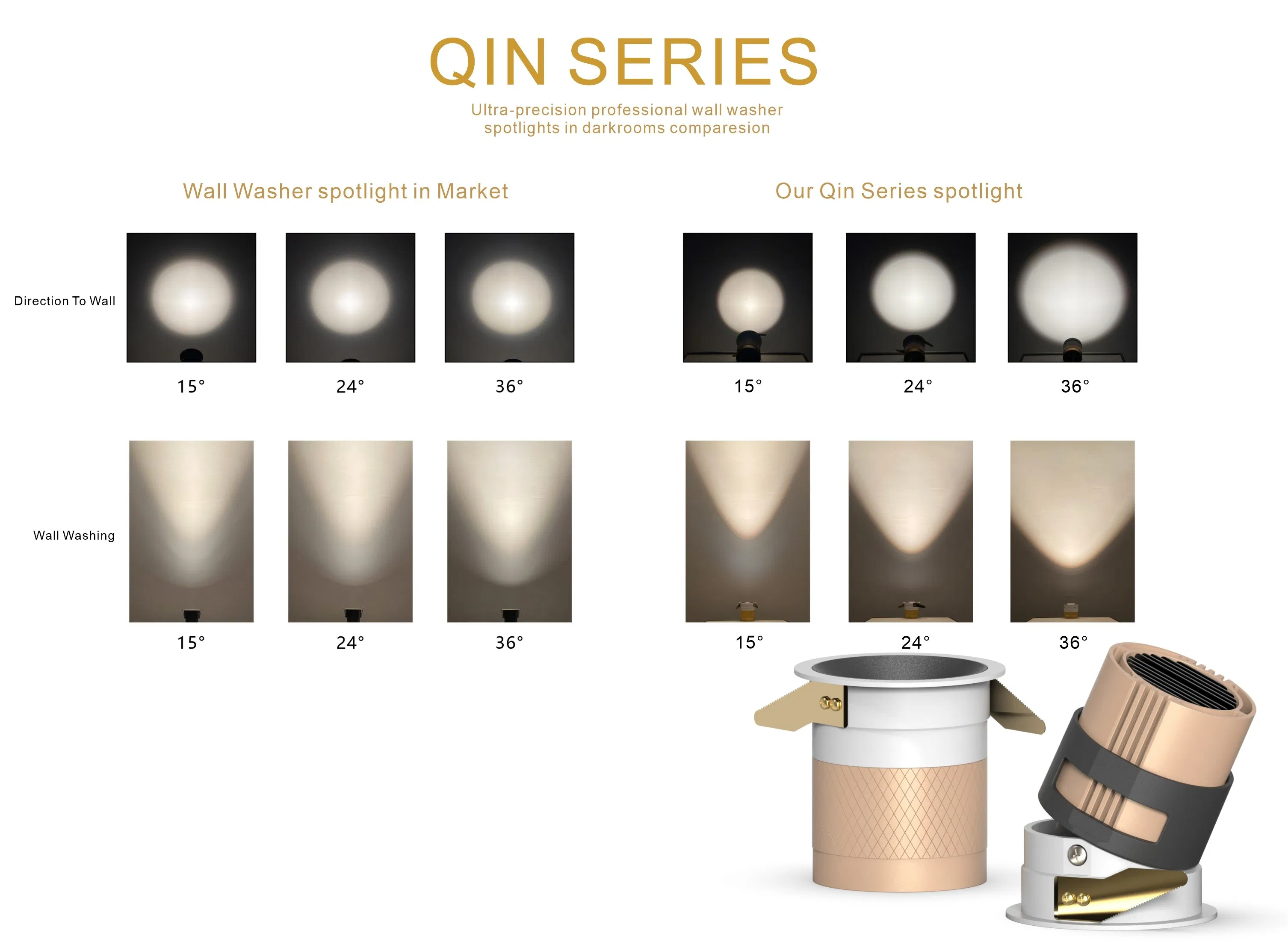

| Beam Angle | 15°, 24°, 36° |
| Dimming Functions | ON-OFF, 1-10V, Triac, PWM, DALI, Tuya ZigBee |
| Housing Color | White, Black |
| Power | Dimension | Cuthole | Direction | Beam Angle |
|---|---|---|---|---|
| 12W (Trim) | φ82*H63/72/83mm | φ75mm | Fixed | 15°/24°/36° |
| 12W (Trimless) | φ70*H63/72/83mm | φ75mm | Fixed | 15°/24°/36° |
| 12W (Trim) | φ82*H80/89/105mm | φ75mm | Adjustable | 15°/24°/36° |
| 12W (Trimless) | φ70*H80/89/105mm | φ75mm | Adjustable | 15°/24°/36° |

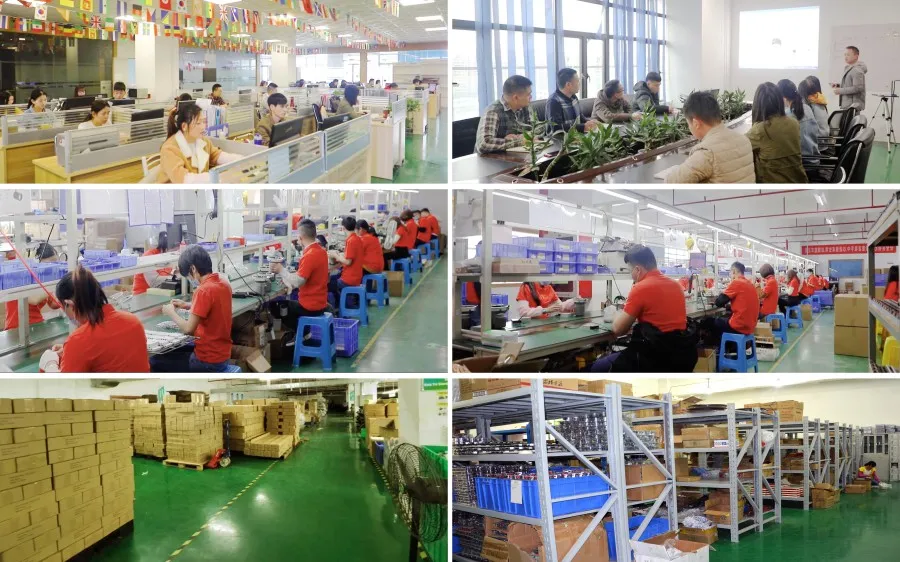

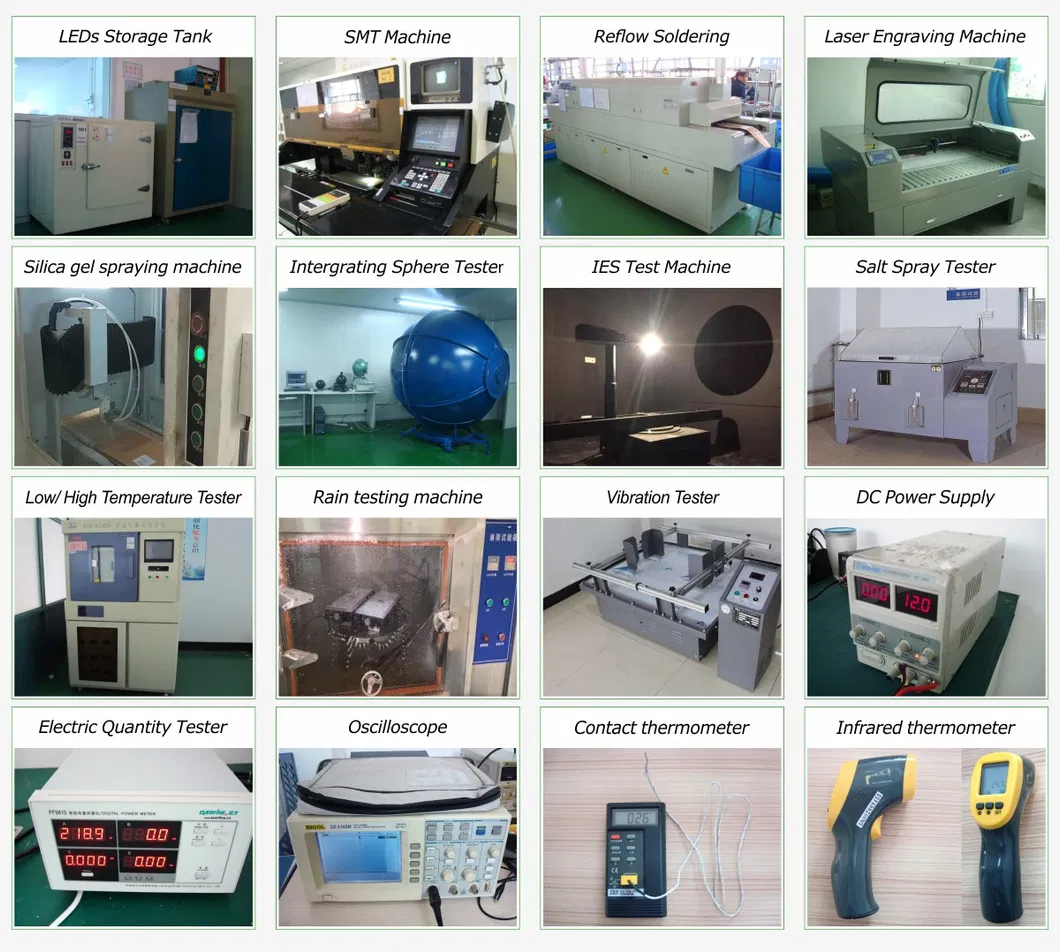

Specializing in professional LED lighting since 2010, the manufacturer maintains a robust R&D team and complete quality control systems. Expertise includes LED track lights, downlights, and industrial lighting solutions. Products are exported globally, including to Europe, America, Canada, and Australia, meeting diverse international market standards.
