📘 Product Overview
The control panel is primarily utilized in building control systems, forming an integrated system when installed alongside other bus devices. Its interface is designed to be simple and intuitive, allowing users to systematically plan and execute functions based on specific automation requirements.

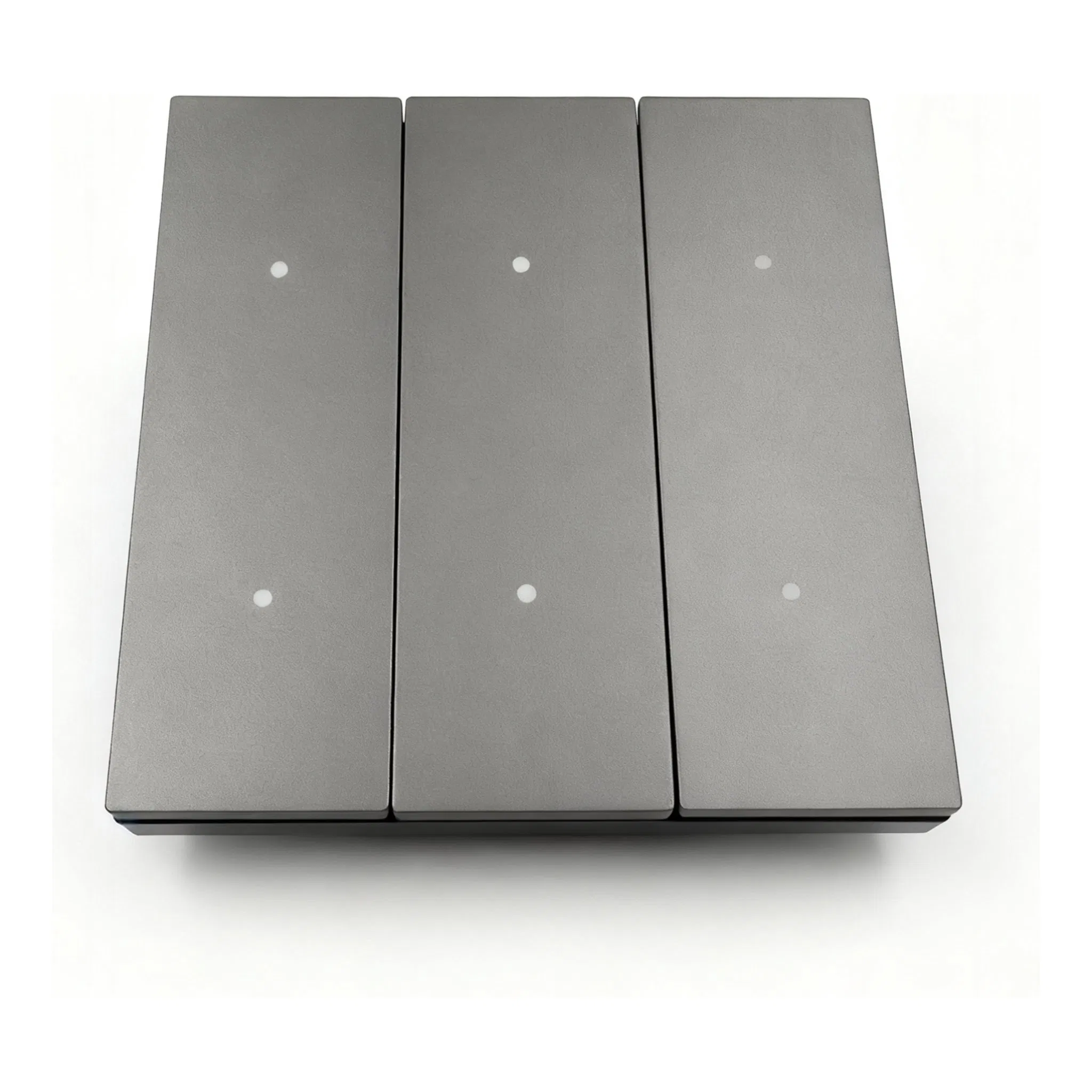

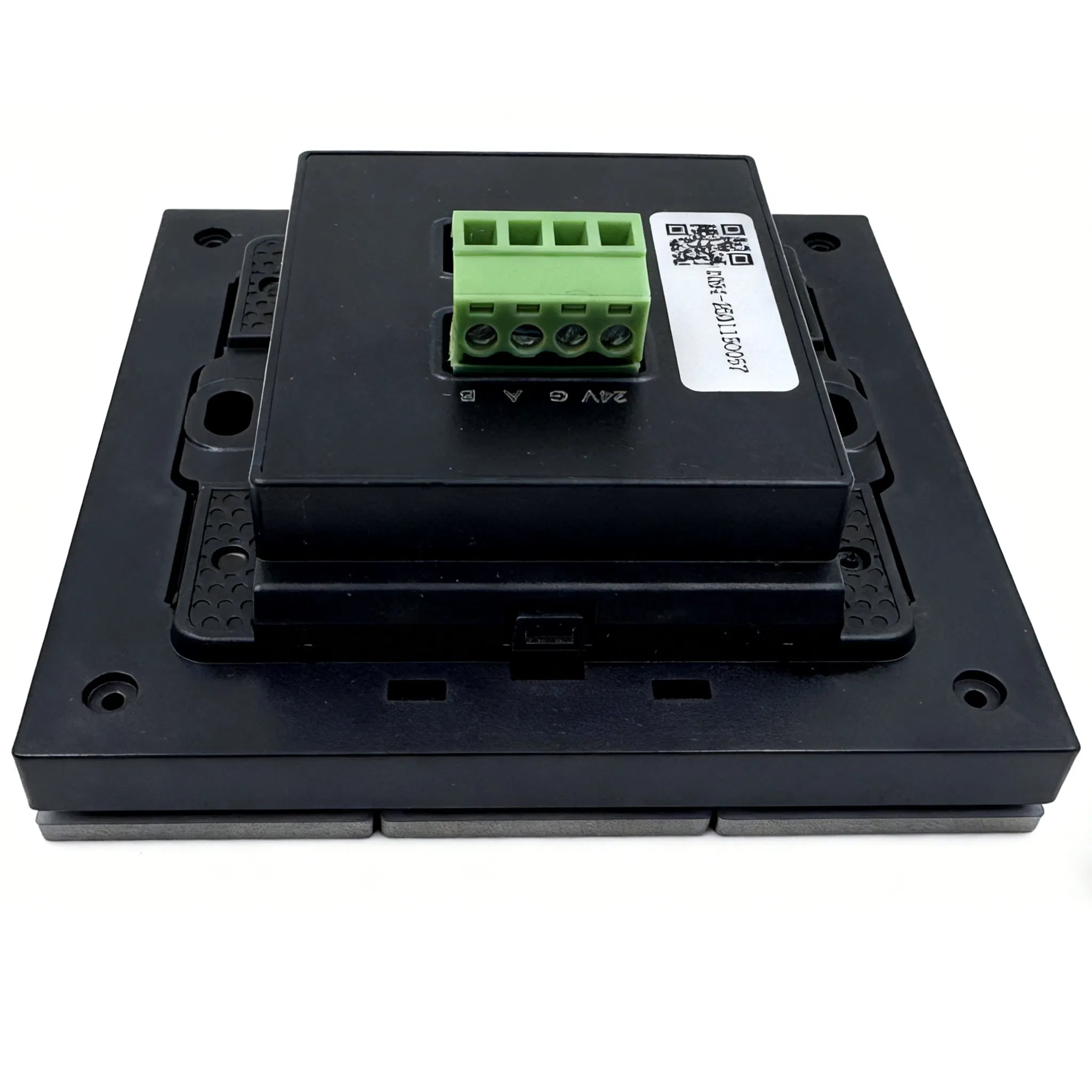

This versatile control panel manages various outputs including switches, dimming modules, and blinds. Each channel is equipped with physical buttons and LED indicator lights. Designed for standard 86 bottom box installation, it offers configurations of 1-4 or 1-8 button outputs. It connects to the KNX system via the standard EIB bus, utilizing ETS software for physical addressing and parameter settings. The device is powered directly through the bus and requires an additional 24VDC auxiliary power supply.
⚙️ Basic Information
| Model NO. | VSU-MK1201 |
| Function | APP Control, Energy Monitoring, Remote Control, Scene Modes, Security, Smart Linkage, Timer, Voice Control |
| Material | Metal + ABS + PC |
| Certification | CE |
| Bus Voltage | 21-30 VDC, Powered by KNX Bus |
| Installation | 86-Box Installation |
🛠️ Core Functions
- Switching control for lighting, curtains, and projection screens with long/short press support.
- Advanced dimming capabilities including both relative and absolute dimming output.
- 8-bit scene control for recalling pre-set automation environments.
- Configurable LED indicators with modes for normally on, off, or flashing.
- LED interlocking grouping and brightness adjustment features.
- Wake-up functionality for status and backlight LEDs via button press or object triggering.
📊 Detailed Parameters
| Bus Current | ≤12mA |
| Bus Power | <360mW |
| Dimensions (H x W x D) | 86 x 86 x 33 mm |
| Weight | Approx. 0.1kg |
| Operating Temp | -5℃ to +45℃ |
| Auxiliary Voltage | 24VDC |
| Auxiliary Current | ≤27.5mA |
| Relative Humidity | Max 90% |

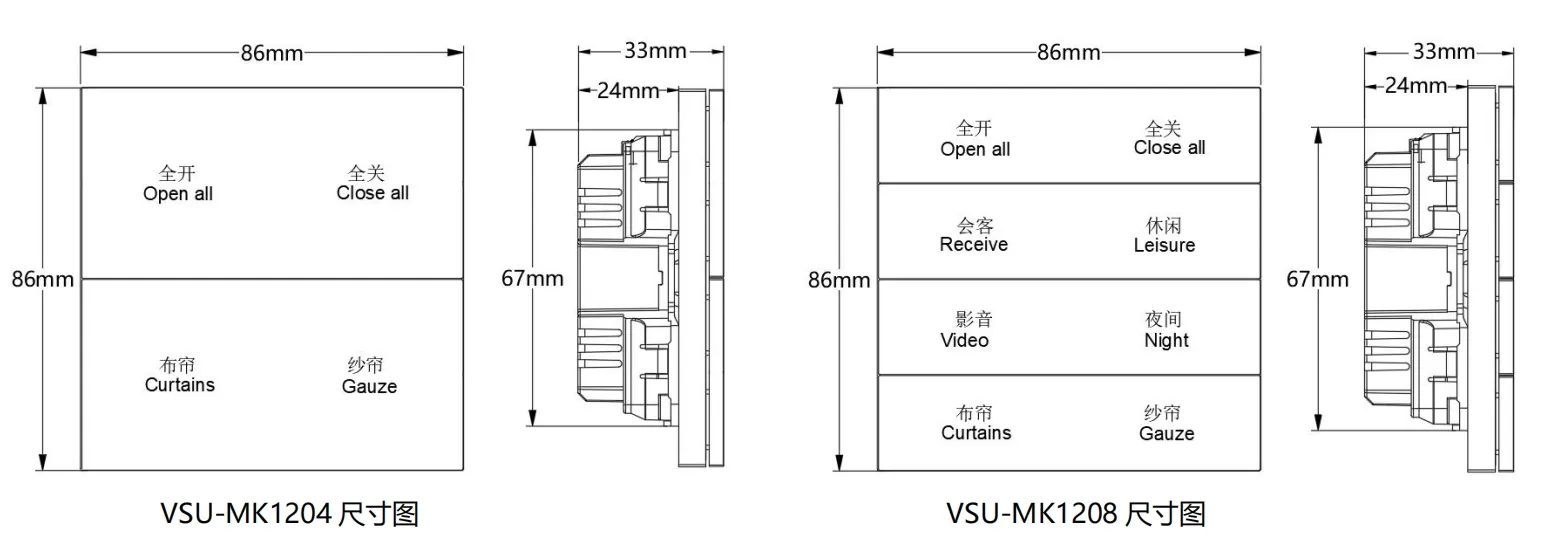

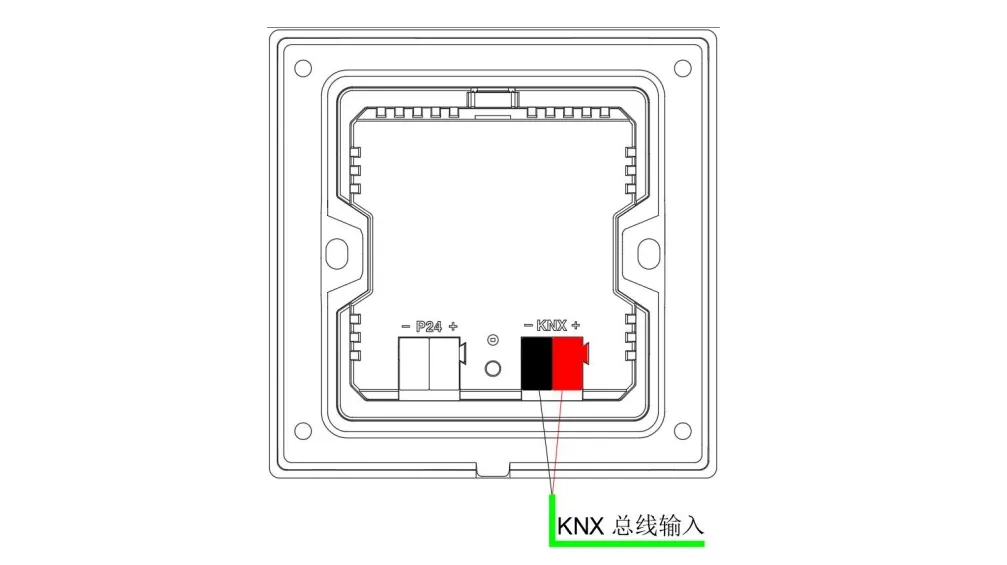

🖼️ Dimensional and Wiring Diagrams

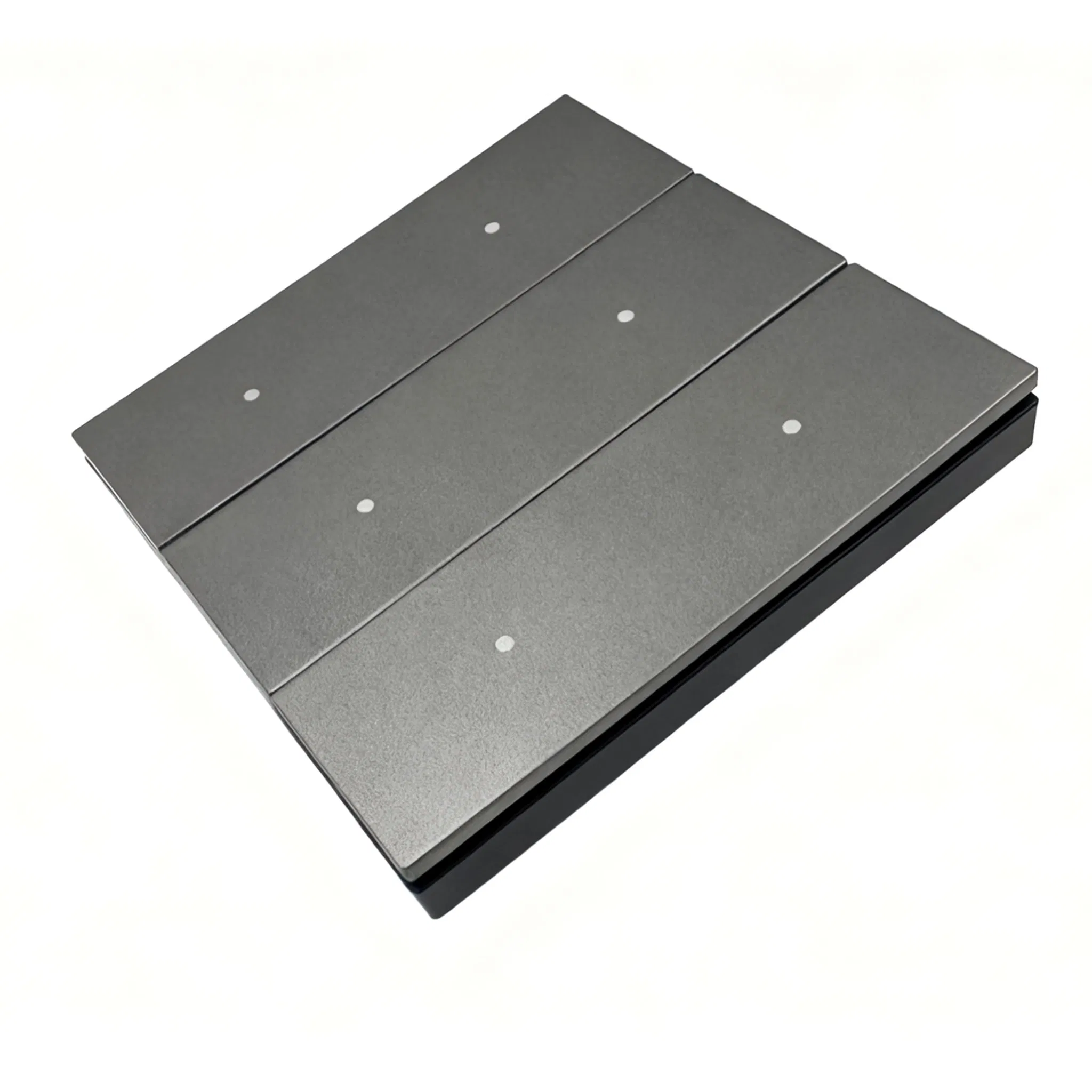

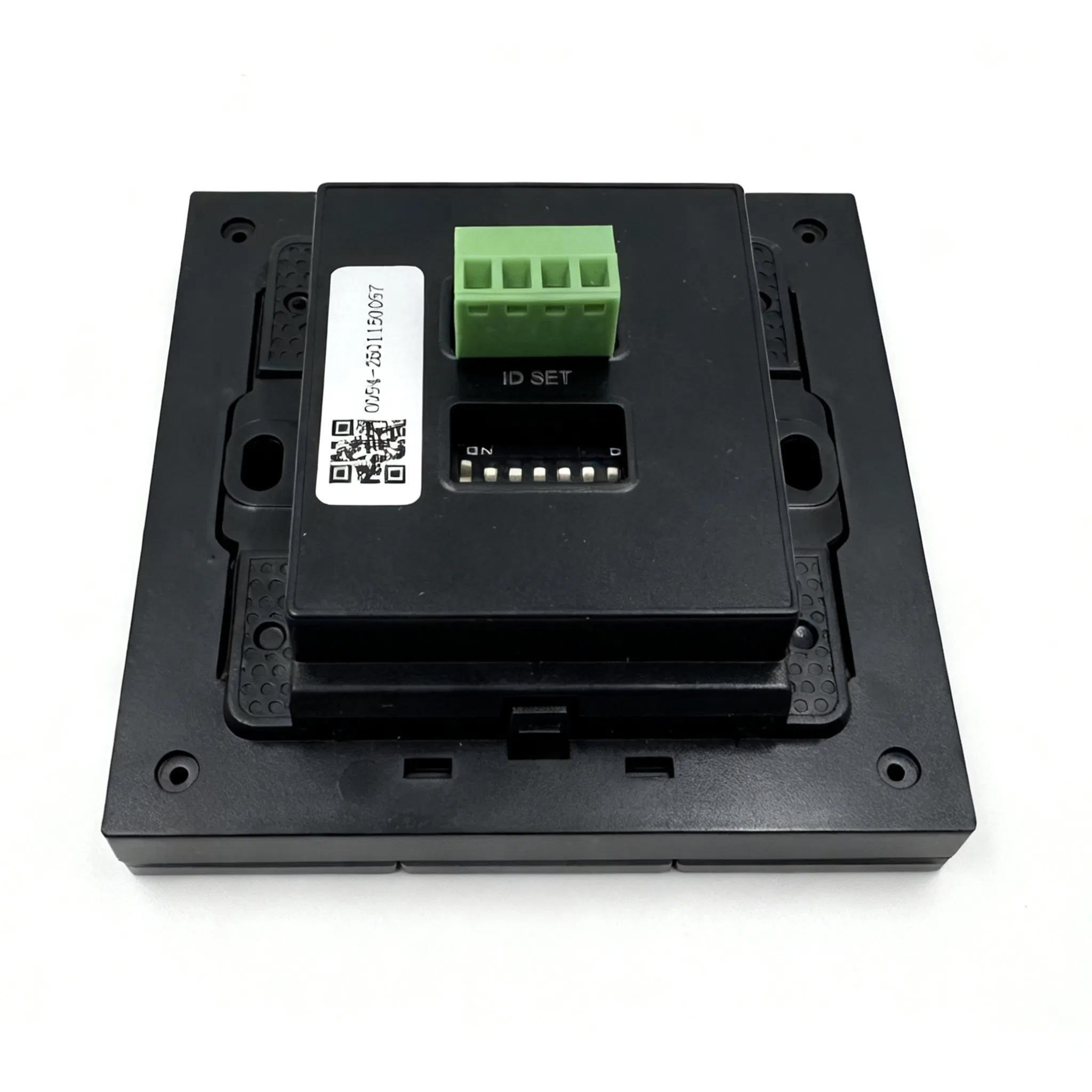

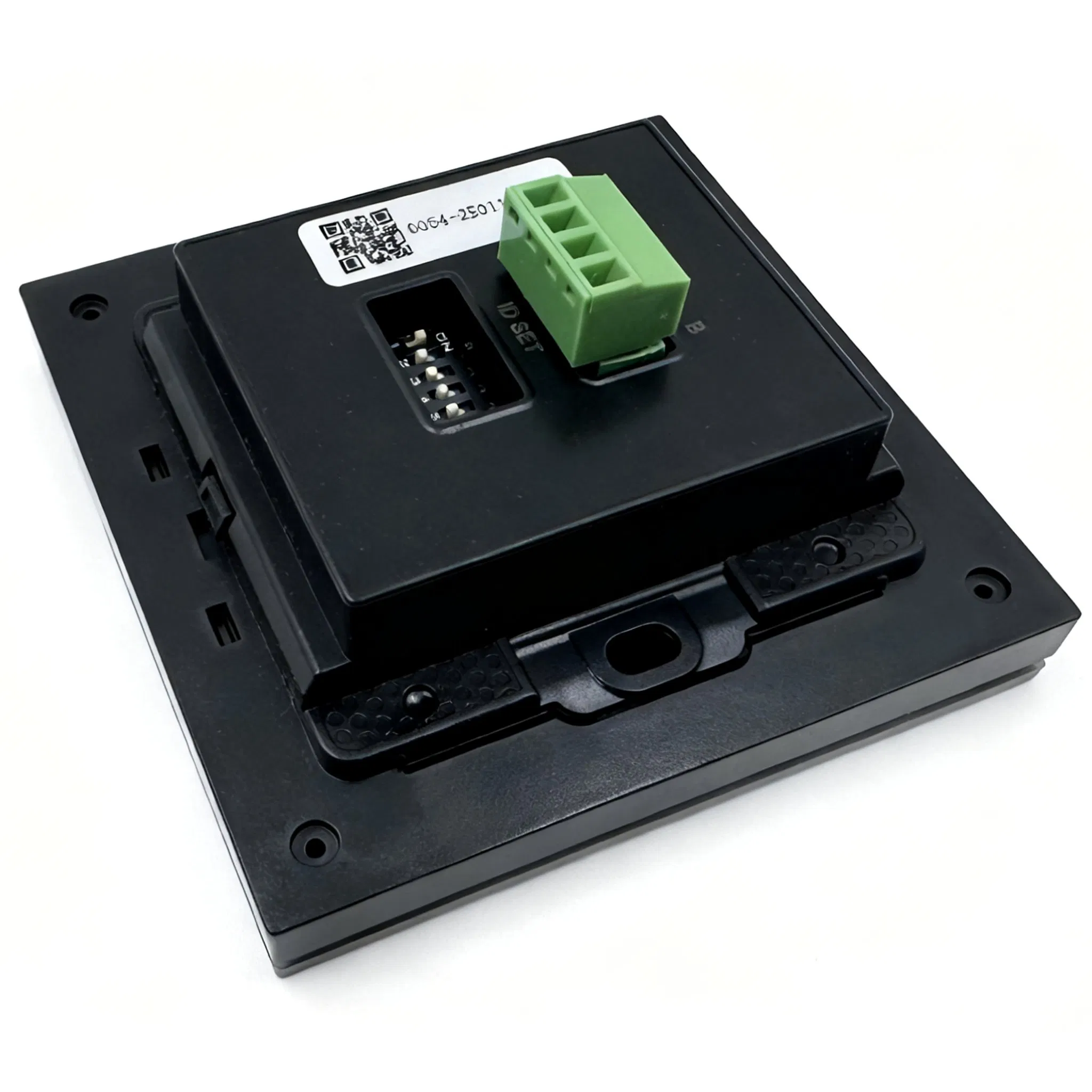

📸 Product Gallery
❓ Frequently Asked Questions
What types of systems is this control panel compatible with?
The panel is designed for EIB/KNX building control systems. It connects via the standard bus and is configured using ETS software (version 4 or above).
Does the product come with any certifications?
Yes, all products have passed international CE certification along with ISO9001 and other quality system standards to ensure safety and reliability.
What is the standard lead time for orders?
For items in stock, there is no lead time. Most products can be shipped within 7 days. For large orders (over 100 pieces), the lead time is negotiable.
Can I customize the panel with my own design or logo?
Yes, OEM and ODM services are available. Your specific logo and design can be integrated into the merchandise based on your requirements.
What is the warranty period for this device?
The product is covered under a standard warranty period within 90 days after the package has been received. We take responsibility for any quality-related issues.
How is the device powered?
It is primarily powered by the KNX bus (21-30 VDC), but it also requires a 24VDC auxiliary power supply for full functionality.
